lamborghini countach 5000 s (1984) inner and outer coverings parts diagram

043 - Inner and Outer Coverings

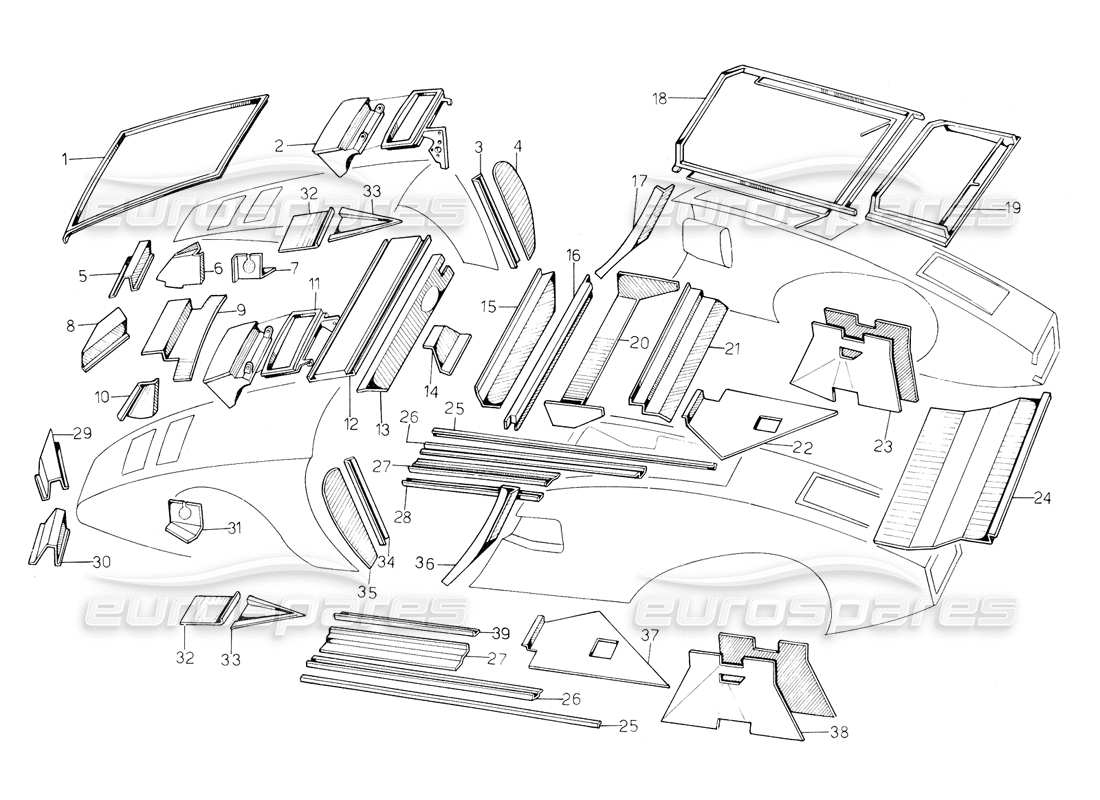

Lamborghini Countach 5000 S (1984) Inner and Outer Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 007059010
BONNET CHAS
Ossatura cof. ant. /C
from £924.46
from £924.46
# 002
MPN: 007044009
SUPPORT LID
Palpebra supp. fari des.
from £1,641.63
from £1,641.63
# 003
MPN: 007021187
SPACER
Angolare dex
from £37.19
from £37.19
# 004
MPN: 007021070
DOOR
Montante porta
from £372.28
from £372.28
# 005
MPN: 007005039
BRAKE DUCT
Convogl. aria inf. rad. olio
from £53.10
from £53.10
# 006
MPN: 007009048
SHIELD
Paratia des. x condensatore
# 007
MPN: 007009086
SHIELD
Complessivo paratia barra tors. ant. des.
# 008
MPN: 007005049
L. BRAKE AIR
Convogliatore aria x freno sinistro
from £70.55
from £70.55
# 009
MPN: 007009049
SHIELD
Paratia x radiatore olio
from £47.43
from £47.43
# 010
MPN: 007009047
SHIELD
Paratia sin. x condensatore
from £71.14
from £71.14
# 011
MPN: 007044010
SUPPORT LID.
Palpebra supp. fari sin.
from £902.90
from £902.90
# 012
MPN: 007010005
WINDSC PANEL
Rivest. inf. parabrezza
from £605.25
from £605.25
# 012
MPN: 007010060
Frame
(Valid for GB - January 1984) Riv. inf. parabrezza (curvano)
from £450.22
from £450.22
# 013
MPN: 007009026
SHIELD
PARATIA
# 014
MPN: 007009025
SUPPORT
SUPPORTINO
# 015
MPN: 007009031
SPACER
Paratia sotto lun. vano motore
# 016
MPN: 007010025
ROOF
Traversa post, padigl.
# 017
MPN: 007021065
DOOR R.
Riscontro porta des.
from £298.48
from £298.48
# 018
MPN: 007060002
REAR BONNET
Ossatura cof. mot. 1C
from £853.99
from £853.99
# 019
MPN: 007029001
Frame
Ossatura cof. baule /C
from £774.72
from £774.72
# 020
MPN: 007009030
SPACER
Paratia post, vano motore
from £184.07
from £184.07
# 021
MPN: 007009029
Water
Race, acqua sotto pad.
# 022
MPN: 007011038
PUMP
Compl. prot. serbatoio benzina dex
from £166.24
from £166.24
# 023
MPN: 007011036
FUEL TANK G
Parasassi serbatoio des.
from £213.92
from £213.92
# 024
MPN: 007029004
BAG BON
Pane inferiore baule
from £302.63
from £302.63
# 025
MPN: 007006008
SPACER
Staffa branc. inf.
from £18.62
from £18.62
# 026
MPN: 007006009
TUBE
Compl. cont. tub. longhe lateral!
# 027
MPN: 007006006
SPACER
Staffa sup. fiss. brancardo
from £44.53
from £44.53
# 028
MPN: 007009006
SPACER
Batticalcagno dex.
# 029
MPN: 007005050
L. BRAKE AIR
Convogliatore aria x freno destro
from £70.55
from £70.55
# 030
MPN: 007005039
BRAKE DUCT
Convogl. aria inf. rad. condens.
from £53.10
from £53.10
# 031
MPN: 007009087
SHIELD
Complessivo paratia barra tors. ant. sin.
# 032
MPN: 007009108
RUBBER
Lamie. cop. tunnel ant. parte freno a mano
from £22.85
from £22.85
# 033
MPN: 007053008
GUARD
Paratia presa aria posteriore
from £93.69
from £93.69
# 034
MPN: 007021068
ANGL
ANGOLARE
from £37.19
from £37.19
# 035
MPN: 007021069
UNIT DOOR
Compl. cop. porta sin. lato cerniera
from £372.28
from £372.28
# 036
MPN: 007021064
UNIT DOOR
Compl. riscontro porta sin.
from £298.48
from £298.48
# 037
MPN: 007011039
UNIT DOOR
Compl. prot. serbatoio ben. sin.
# 038
MPN: 007011037
FUEL TANK G
Parasassi serbatoio sin.
from £290.52
from £290.52
# 039
MPN: 007009007
SPACER
Batticalcagno sin.
