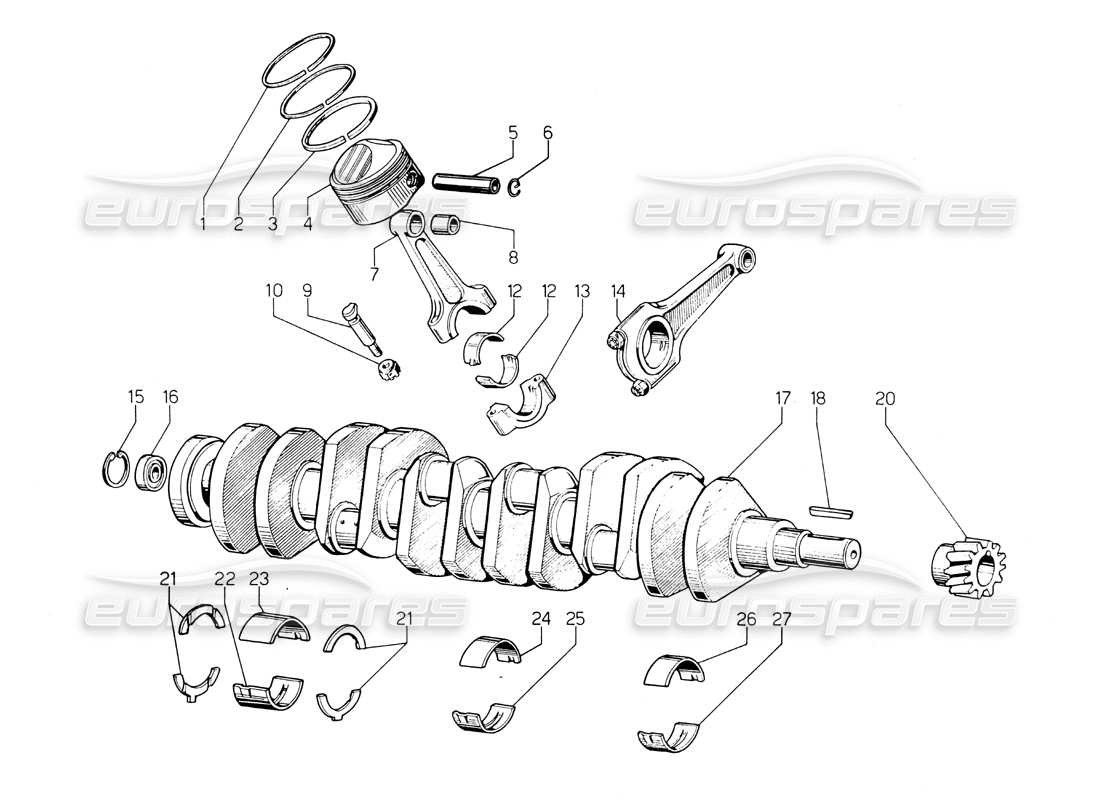

Lamborghini Countach LP400 Crankshaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 001406861
MAINS & BIG END BEARINGS SET +10
from £2,995.00
from £2,995.00
# 000
MPN: 001406862
MAINS & BIG END BEARINGS SET +20
from £2,695.00
from £2,695.00
# 000
MPN: 001436738
MAINS & BIG END BEARINGS SET STD
from £2,995.00
from £2,995.00
# 001
MPN: 001402908
SEGMENTO SUPERIORE
from £86.04
from £86.04
# 002
MPN: 001402907
SEGMENTO INFERIORE
from £98.07
from £98.07
# 003
MPN: 001402906
RING
from £45.31
from £45.31
# 004
MPN: 001408017

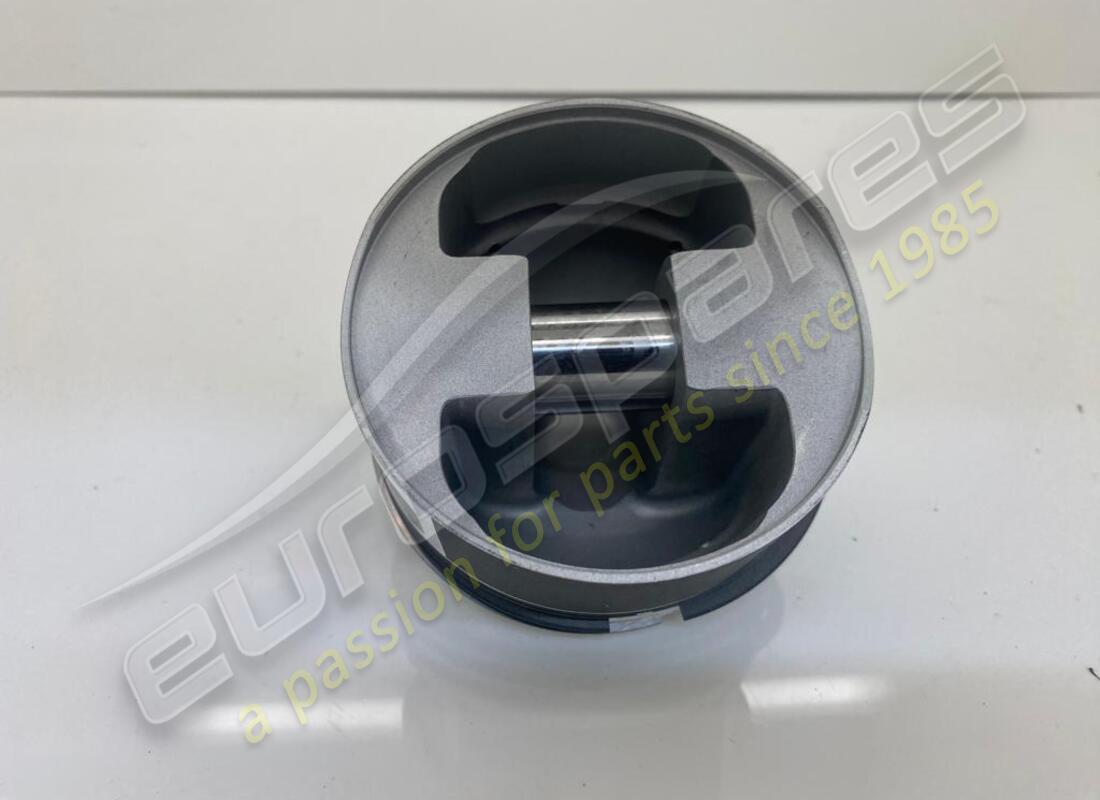

PISTON STD
from £284.48
from £284.48
# 005
MPN: 001400398
SPINOTTO PER PISTONE
from £110.28
from £110.28
# 006
MPN: 008572101
SEALING RING
from £0.50
from £0.50
# 007
MPN: 001413099
PARTESUPERIORE BIELLA
# 008
MPN: 001413206
LITTLE END BUSH
from £69.96
from £69.96
# 009
MPN: 001405755
CON ROD BOLT
from £110.68
from £110.68
This part replaces part number 001400359
# 010
MPN: 001405756
NUT
from £17.24
from £17.24
This part replaces part number 001404419
# 012
MPN: 001419898
BEARING - BIG END
from £41.01
from £41.01
# 013
MPN: 001403520
CAPPELLO PER BIELLA
# 014
MPN: 001412758
COMPLESSIVO BIELLA
from £213.87
from £213.87
This part replaces part number 001400802 - and 1 more. Click to view details
# 015
MPN: 07M109381
SEEGER RING
from £1.16
from £1.16
This part replaces part number 008573501 - and 1 more. Click to view details
# 016
MPN: 410109264
BEARING
from £14.84
from £14.84
This part replaces part number 008501501 - and 2 more. Click to view details
# 017
MPN: 001407338
crankshaft
from £18,896.76
from £18,896.76
# 018
MPN: 008860801
Key
from £6.43
from £6.43
# 020
MPN: 001407354
INGRANAGGIO
from £146.33
from £146.33
# 021
MPN: 07M105532
TTHRUST WASHER (PRICE EACH)
use:2x 07M105531A & 2x 07M105532
from £196.28
from £196.28
# 022
MPN: 001400248
SEMIGUSCIO INFERIORE POSTERIORE
from £29.10
from £29.10
# 023
MPN: 001400244
SEMIGUSCIO SUPERIORE POSTERIORE
from £29.10
from £29.10
# 024
MPN: 001400249
SEMIGUSCIO SUPERIORE INTERMEDIO
not as spare part - use part number: 001400236
from £122.79
from £122.79
# 025
MPN: 001400236
SEMIGUSCIO INFERIORE INTERMEDIO
from £105.30
from £105.30
# 026
MPN: 001400243
SEMIGUSCIO SUPERIORE ANTERIORE
from £27.62
from £27.62
# 027
MPN: 001400239
SEMIGUSCIO INFERIORE ANTERIORE
from £29.10
from £29.10
