008 - radiator and coolant system

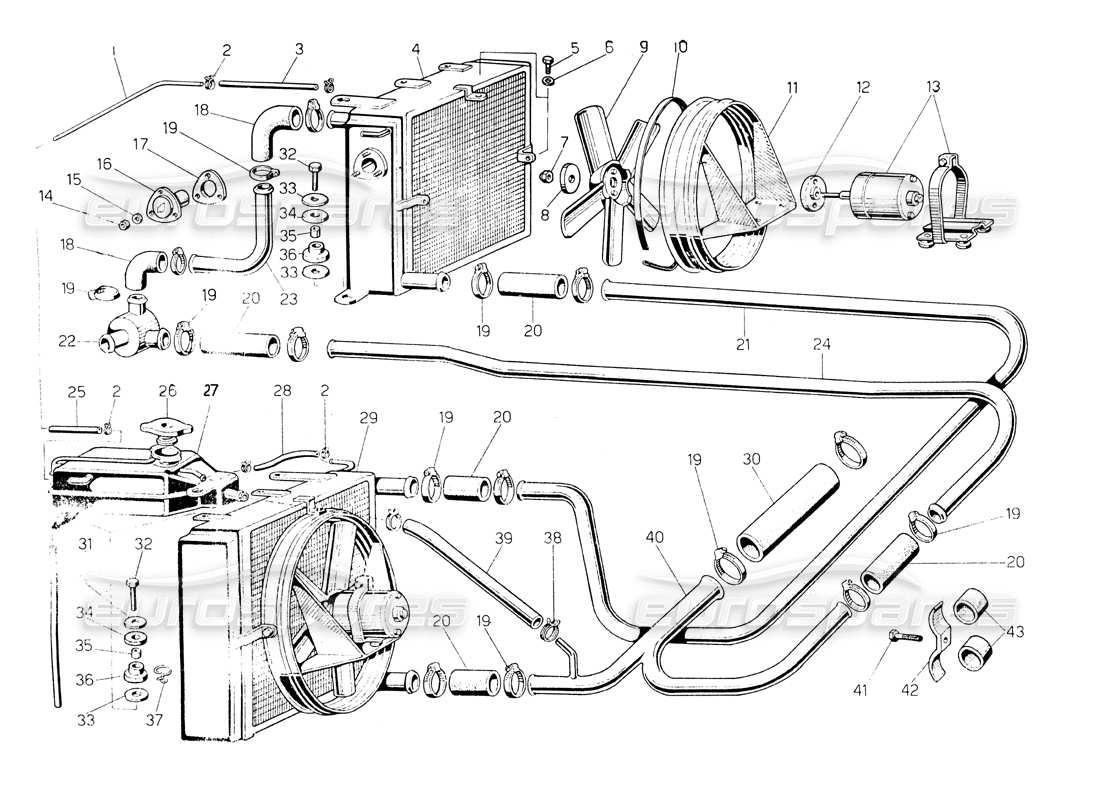

Lamborghini Countach LP400 Radiator and coolant system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001710067
TUBO IN NAILON SULLA SCOCCA
from £85.86
from £85.86
# 002
MPN: 008830122
JUBILEE CLIP
from £0.52
from £0.52
# 003
MPN: 001711395
TUBO DAL RADIATORE DX. AL TUBO SULLA SCOCCA
from £19.28
from £19.28
# 004
MPN: 001709962
Radiatore destro
from £818.33
from £818.33
# 005
MPN: 008100613
BOLT
from £0.50
from £0.50
# 006
MPN: 008410603
WASHER
Supersession
Supersession
# 007
MPN: 008200608
NUT
from £3.70
from £3.70
# 008
MPN: 001703767
WASHER
from £17.91
from £17.91
# 009
MPN: 001701405
VENTOLA DI RAFFREDDAMENTO
from £244.70
from £244.70
# 010
MPN: 001711638
GASKET OR SEAL
# 011
MPN: 001710053
SUPPORT
from £113.18
from £113.18
# 012
MPN: 001703766
WASHER
from £34.25
from £34.25
# 013
MPN: 001705166
MOTORINO PER VENTOLE
from £223.70
from £223.70
# 014
MPN: 008200402
NUT
from £1.62
from £1.62
# 015
MPN: 008410402
WASHER
Supersession
Supersession
# 016
MPN: 001724565
TEMPERATURE SENDER UNIT
(Single terminal)
from £125.00
from £125.00
# 017
MPN: 001705504
GASKET OR SEAL
from £16.41
from £16.41
# 018
MPN: 001711337
MANICOTTI DAL RADIATORE DESTRO ALLA VALVOLA
from £339.10
from £339.10
# 019
MPN: 008835004
JUBILEE CLIP
from £6.14
from £6.14
This part replaces part number 008830201
# 020
MPN: 001711338
SLEEVE
from £33.34
from £33.34
# 021
MPN: 001711307
TUBO COLLEGAMENTO RADIATORI
from £478.15
from £478.15
# 022
MPN: 001719309
THERMOSTAT
from £167.52
from £167.52
# 023
MPN: 001711314
TUBO DALLA VALVOLA AT RADIATORE DESTRO
from £102.46
from £102.46
# 024
MPN: 001711339
TUBO PER CIRCUITO DALLA VALVOLA
from £426.27
from £426.27
# 025
MPN: 001711394
TUBO DAL SERBATOIO AL SULLA SCOCCA
from £26.94
from £26.94
# 026
MPN: 001704296
TANK CAP 1,0 BAR
from £87.32
from £87.32
# 027
MPN: 001710971
SERBATOIO SUPPLEMENTARE
from £299.18
from £299.18
# 028
MPN: 001710068
TUBO DAL SERBATOIO AL RADIATORE SINISTRO
from £14.06
from £14.06
# 029
MPN: 001709963
RADIATORE SINISTRO
from £818.33
from £818.33
# 030
MPN: 001712492
MANICOTTO PER CIRCUITO SULLA POMPA
from £16.80
from £16.80
# 031
MPN: 001710069
TUBO SCARICO DAL SERBATOIO
from £43.06
from £43.06
# 032
MPN: 008109831
BOLT
# 033
MPN: WHT001942
WASHER
from £2.06
from £2.06
# 034
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 035
MPN: 001701592
DISTANZIALE ANELLI DI SUPPORTO
from £11.72
from £11.72
# 036
MPN: 001701495
RING
from £32.99
from £32.99
# 037
MPN: 001705796
CLIP
# 038
MPN: 008830124
JUBILEE CLIP
from £0.71
from £0.71
# 039
MPN: 001710070
TUBA DAL SERBATOIO AT CIRCUITO
from £34.51
from £34.51
# 040
MPN: 001711406
TUBO PER CIRCUITO DALLA POMPA
from £801.53
from £801.53
# 041
MPN: 008100609
BOLT
from £0.53
from £0.53
# 042
MPN: 008833801
JUBILEE CLIP
from £18.62
from £18.62
