lamborghini countach lp400 drive - shafts parts diagram

018 - Drive - shafts

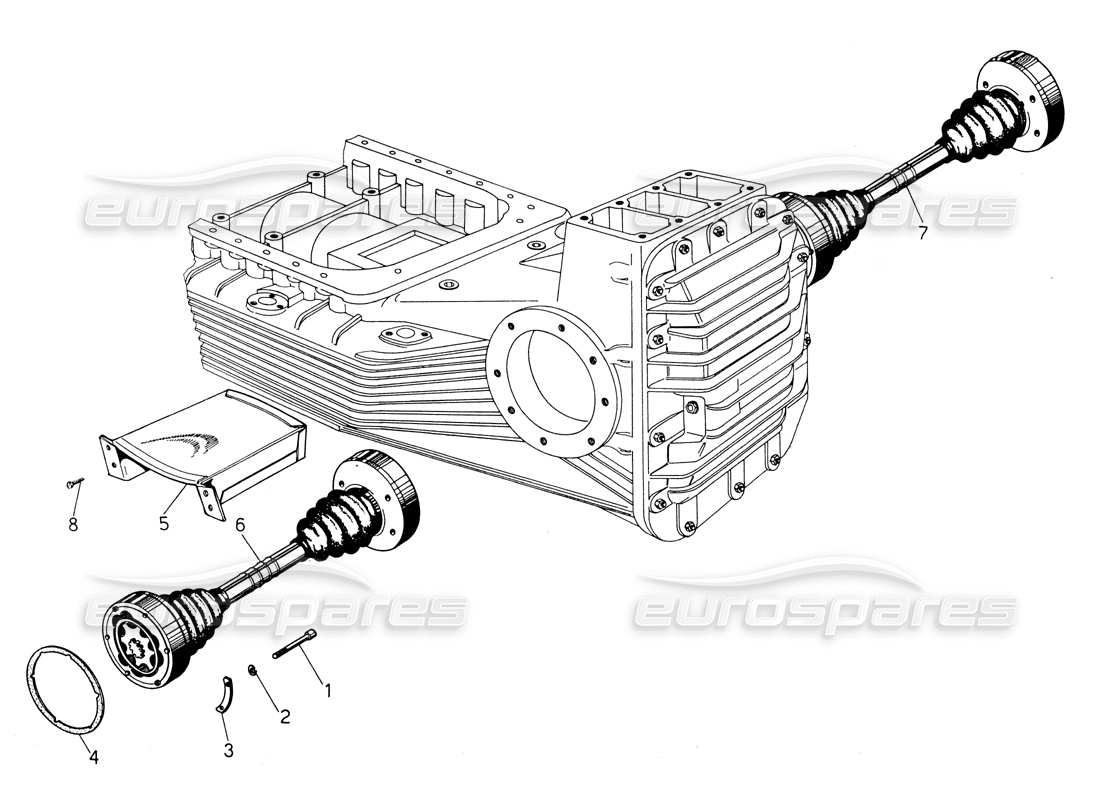

Lamborghini Countach LP400 Drive - shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 008701001
                  SCREW
                  from £2.10
                  from £2.10
                  # 002
                  MPN: 008411005
                  WASHER
                  from £0.48
                  from £0.48
                  # 003
                  MPN: 002506602
                  PLATE
                  from £67.16
                  from £67.16
                  # 004
                  MPN: 002506601
                  GASKET
                  from £14.88
                  from £14.88
                  # 005
                  MPN: 001511957
                  PARATIA DESTRA
                  # 005
                  MPN: 002511956
                  PARATIA SINISTRA
                  from £560.29
                  from £560.29
                  # 006
                  MPN: 002508077
                  SEMIASSE SINISTRO (OMOCINETICO)
                  from £3,507.13
                  from £3,507.13
                  # 007
                  MPN: 002508076
                  SEMIASSE DESTRO (OMOCINETICO)
                  from £2,338.08
                  from £2,338.08
                  # 008
                  MPN: 008700506
                  SCREW
                  from £0.51
                  from £0.51
