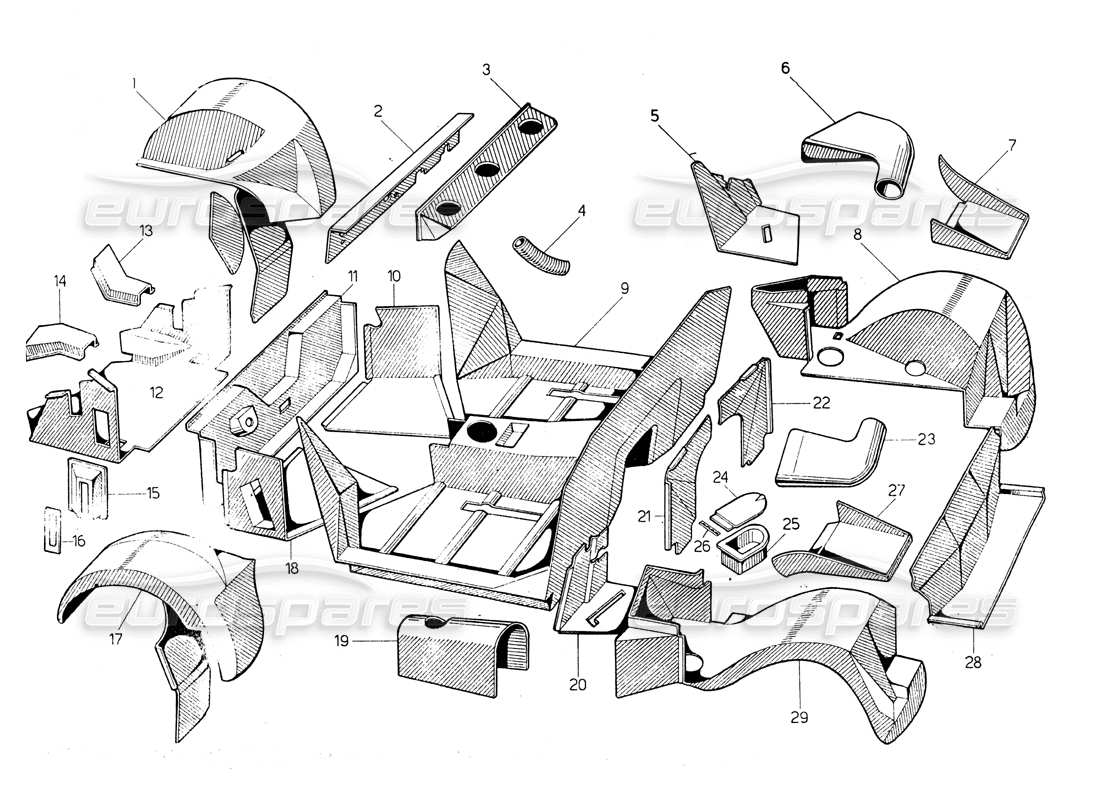

Lamborghini Countach LP400 Fiberglass inner coating Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 007011002
PASSARUOTA ANTERIORE DESTRO
# 002
MPN: 007011026
PARAFIAMMA ANT. PARTE SUPERIORE
from £636.76
from £636.76
# 003
MPN: 007011030
CONVOGLIATORE ARIA
from £1,660.12
from £1,660.12
# 004
MPN: 004711726
TUBO MANDATA ARIA
from £26.63
from £26.63
# 005
MPN: 007011033
RIVESTIMENTO VANO MOTORE PARTE DESTRA
# 006
MPN: 007053003
PRESA ARIA SUPERIORE DESTRA
# 007
MPN: 007011016
CONVOGLIATORE PER SCARICO ARIA DESTRO
from £250.40
from £250.40
# 008
MPN: 007011022
PASSARUOTA POSTERIORE DESTRO
# 009
MPN: 007011008
PIANALE
# 010
MPN: 007011028
FIANCHETTO INTERNO DESTRO
from £1,882.08
from £1,882.08
# 011
MPN: 007011027
PARAFIAMMA ANT. PARTE INFERIORE
from £1,173.15
from £1,173.15
# 012
MPN: 007011001
CONTENITORE RUOTA DI SCORTA
from £3,851.99
from £3,851.99
# 013
MPN: 007005018
CONVOGLIATORE ARIA AL FRENO ANT. DESTRO
from £100.33
from £100.33
# 014
MPN: 007005019
CONVOGLIATORE ARIA AL FRENO ANT. SINISTRO
from £100.33
from £100.33
# 015
MPN: 007011004
SCATOLA PER ASTA CREMAGLIERA PARTE DESTRA
# 015
MPN: 007011005
SCATOLA PER ASTA CREMAGLIERA PARTE SIN.
# 016
MPN: 007090002
CORNICE
from £22.26
from £22.26
# 017
MPN: 007011003
PASSARUOTA ANTERIORE SINISTRO
# 018
MPN: 007011029
PASSARUOTA INTERNO SINISTRO
from £1,019.80
from £1,019.80
# 019
MPN: 007011009
COPRITUNNEL
from £1,193.93
from £1,193.93
# 020
MPN: 007011032
RIVESTIMENTO VANO MOTORE PARTE SINISTRA
from £355.69
from £355.69
# 021
MPN: 007011035
RIVESTIMENTO ZONA FRIZIONE PARTE SINISTRA
from £416.22
from £416.22
# 022
MPN: 007011034
RIVESTIMENTO ZONA FRIZIONE PARTE DESTRA
from £416.22
from £416.22
# 023
MPN: 007053005
PRESA ARIA SUPERIORE SINISTRA
# 024
MPN: 006211538
PORTELLA PER BOCCHETTONE BENZINA
from £17.75
from £17.75
# 025
MPN: 007011015
CARENATURA PER BOCCHETTONE BENZINA
# 026
MPN: 006211537
CERNIERA
from £21.56
from £21.56
# 027
MPN: 007011017
CONVOGLIATORE PER SCARICO ARIA SINISTRO
# 028
MPN: 007011024
PARETE FRA VANO MOTORE E BAGAGLIAIO
from £2,134.96
from £2,134.96
# 029
MPN: 007011023
PASSARUOTA POSTERIORE SINISTRO
from £1,288.32
from £1,288.32
