lamborghini countach lpi 800-4 (2022) electrics parts diagram

907.01.00 - electrics

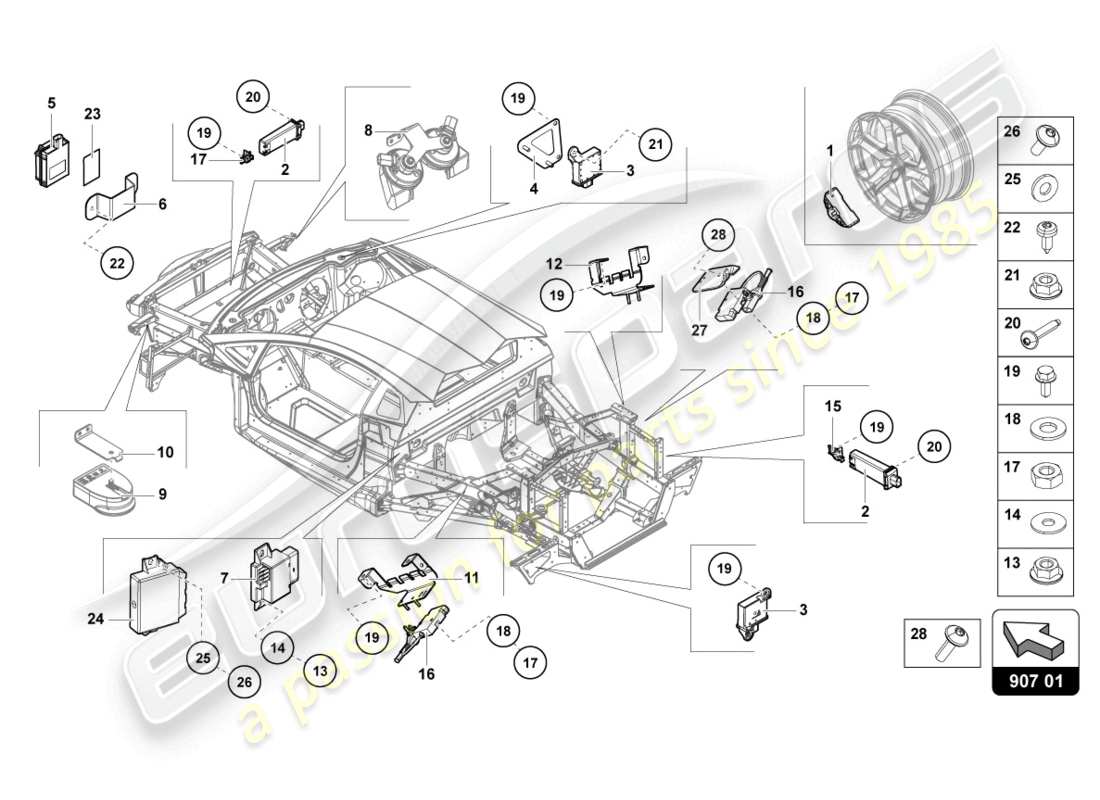

Lamborghini Countach LPI 800-4 (2022) ELECTRICS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 7PP907275F
            TYRE PRESSURE SENSOR
            433,92 MHZ - EU - SCANDINAVIA - SWEDEN - GB - SOUTH AFRICA - RUSSIA - ARABIA - DUBAI - BRASIL - SUD KOREA - AUSTRALIA - NEW ZEALAND - PHILIPPINE - USA - CANADA - MEXICO - TAIWAN-433MHZ
            from £54.22
            from £54.22
            TPMS SENSOR STANDARD Genuine Lamborghini - New In stock
            TPMS SENSOR STANDARD Genuine Lamborghini - Used In stock
            Genuine Porsche Part (no longer available to order)
            # 001
            MPN: 7PP907275G
            TYRE PRESSURE SENSOR
            315 MHZ - JAPAN - HONG KONG - SINGAPORE - CHINA-315MHZ (EUROPE spec vehicles)
            from £95.11
            from £95.11
            WHEEL ELECTRONICS US AND JAPAN Genuine Lamborghini - New (to order)
            Genuine Porsche Part (no longer available to order)
            # 002
            MPN: 8E0907277
            aerial
            433,92 MHZ - EU - SCANDINAVIA - SWEDEN - GB - SOUTH AFRICA - RUSSIA - ARABIA - DUBAI - BRASIL - SUD KOREA - AUSTRALIA - NEW ZEALAND - PHILIPPINE - USA - CANADA - MEXICO - TAIWAN-433 MHZ
            from £55.40
            from £55.40
            ANTENNA Genuine Lamborghini - New (to order)
            ANTENNA Genuine Lamborghini - Used In stock
            # 002
            MPN: 8E0907277A
            aerial
            315 MHZ - GIAPPONE - HONG KONG - SINGAPORE - CINA (EUROPE spec vehicles)
            from £100.73
            from £100.73
            ANTENNA Genuine Lamborghini - New (to order)
            # 003
            MPN: 7PP907283
            SENDER UNIT
            from £47.04
            from £47.04
            TRANSMITTING UNIT Genuine Lamborghini - New (to order)
            TRANSMITTING UNIT Genuine Lamborghini - Used In stock
            remote control transmitter (7PP907283) Genuine Porsche Part - New (to order)
            # 004
            MPN: 470907732A
            ARM
            from £996.29
            from £996.29
            HOLDER,ELECTR. CON Genuine Lamborghini - New (to order)
            HOLDER,ELECTR. CON Genuine Lamborghini - Used In stock
            # 005
            -
            CONTROL UNIT FOR OPENING GARAGE DOOR
            # 006
            -
            BRACKET
            # 007
            MPN: 8K0906093E
            CONTROL UNIT FOR FUEL PUMP
            from £65.63
            from £65.63
            CONTROL UNIT, FUEL Genuine Lamborghini - New (to order)
            CONTROL UNIT, FUEL Genuine Lamborghini - Used In stock
            # 008
            -
            REPAIR KIT FOR SIGNAL HORN
            # 009
            -
            ELECTRONIC SIREN
            # 010
            -
            ARM
            # 011
            MPN: 470971593B
            BRACKET
            LEFT
            from £9.52
            from £9.52
            BRACKET CONNETTORE LAMDA Genuine Lamborghini - New (to order)
            BRACKET CONNETTORE LAMDA Genuine Lamborghini - Used In stock
            # 012
            MPN: 470971592B
            BRACKET
            RIGHT
            from £9.52
            from £9.52
            BRACKET CONNETTORE LAMBDA Genuine Lamborghini - New (to order)
            BRACKET CONNETTORE LAMBDA Genuine Lamborghini - Used In stock
            # 013
            MPN: N10017307
            HEXAGON COLLAR NUT
            M5
            from £1.16
            from £1.16
            HEXAGON FLANGE NUTM5 Genuine Lamborghini - New In stock
            # 014
            MPN: N10612001
            WASHER
            5,3X15X1
            from £0.53
            from £0.53
            WASHER 5.3X15X1 Genuine Lamborghini - New In stock
            # 015
            MPN: 3W0907323
            CLIP
            from £4.80
            from £4.80
            CLIP Genuine Lamborghini - New (to order)
            # 016
            MPN: 470919197C
            COUPLING ELEMENT
            from £375.32
            from £375.32
            Genuine Lamborghini (no longer available to order)
            COLD JOINT KIT (470998161) Genuine Lamborghini - New (to order)
            # 017
            MPN: N01100412
            HEXAGON NUT
            M4
            from £0.47
            from £0.47
            HEX.NUT M4 Genuine Lamborghini - New In stock
            6KT-MU M 4 I 4032 8 R645 (N 01100412) Genuine Porsche Part - New (to order)
            # 018
            MPN: N01152221
            WASHER
            4,3X9X0,8
            from £0.53
            from £0.53
            This part replaces part number 008400401
            WASHER 4.3X9X0.8 Genuine Lamborghini - New (to order)
            # 019
            MPN: N10653201
            HEX COLLARED BOLT
            M6X16
            from £1.15
            from £1.15
            HEXAGON FLANGE M6X16 Genuine Lamborghini - New In stock
            bolt, hex. hd. with shoulder (N 10653201) Genuine Porsche Part - New (to order)
            # 020
            MPN: N10703301
            HEX SOCKET OVAL HEAD COLLARED
            M5X35
            from £1.25
            from £1.25
            HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
            # 021
            MPN: N01508210
            HEXAGON COLLAR NUT
            M6
            from £0.47
            from £0.47
            HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
            Genuine Porsche Part (no longer available to order)
            # 022
            -
            OVAL HEAD PANEL SCREW
            # 023
            -
            DAMPING ELEMENT
            # 024
            -
            CONTROL UNIT FOR PARK STEERING ASSIST
            # 025
            -
            WASHER
            # 026
            -
            OVAL HEXAGON SOCKET HEAD BOLT
            # 027
            MPN: 470971593C
            BRACKET
            COLD JOINT-LEFT
            from £17.12
            from £17.12
            BRACKET Genuine Lamborghini - New (to order)
            # 027
            MPN: 470971593D
            BRACKET
            COLD JOINT-RIGHT
            from £17.12
            from £17.12
            BRACKET Genuine Lamborghini - New (to order)
            # 028
            MPN: N10661002
            HEX SOCKET OVAL HEAD COLLARED
            M6X20
            from £0.72
            from £0.72
            HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
            Hex socket oval head collared (N 10661002) Genuine Porsche Part - New (to order)
