lamborghini countach lpi 800-4 (2022) wiring looms parts diagram

971.02.00 - Wiring Looms

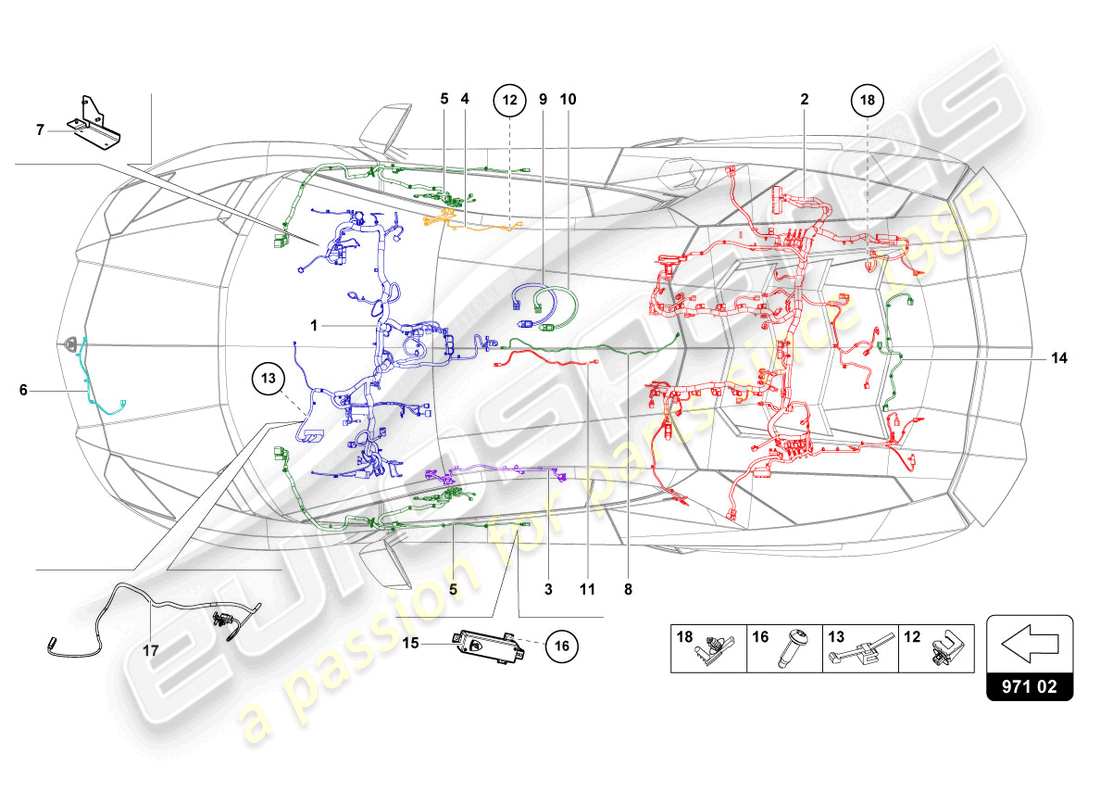

Lamborghini Countach LPI 800-4 (2022) WIRING LOOMS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 002
          -
          HARNESS FOR ENGINE COMPARTMENT
          SEE ILLUSTRATION : 905.01
          # 004
          MPN: 470971035K
          WIRING SET FOR DOOR
          PASSENGER SIDE
          from £97.53
          from £97.53
          HARNESS,DOOR Genuine Lamborghini - New (to order)
          # 005
          MPN: 470971029H
          WIRING SET FOR DOOR
          from £491.66
          from £491.66
          HARNESS,OUTSIDE Genuine Lamborghini - New (to order)
          HARNESS,OUTSIDE Genuine Lamborghini - Used In stock
          # 006
          -
          ADAPTER WIRE
          NOT FOR THIS MODEL
          # 007
          MPN: 471857779
          CARRIER
          LHD
          from £30.24
          from £30.24
          BRACKET Genuine Lamborghini - New In stock
          # 008
          MPN: 47F972566
          CABLE SET FOR CAMERA
          from £398.13
          from £398.13
          INTERNAL CAMERA CABLE Genuine Lamborghini - New (to order)
          # 009
          -
          WIRING SET FOR LCD SCREEN
          NO PART - VALID FOR CENTENARIO MODEL
          # 010
          MPN: 47F970245
          WIRING SET FOR LCD SCREEN
          from £659.56
          from £659.56
          TOUCHSCREEN VIDEO CABLE Genuine Lamborghini - New (to order)
          # 011
          -
          WIRING HARNESS FOR USB SOCKET
          NO PART - VALID FOR CENTENARIO MODEL
          # 012
          MPN: 6X0971845B
          BRACKET
          FOR: 1J0 973 802
          from £6.87
          from £6.87
          PLUG BRACKET Genuine Lamborghini - New (to order)
          # 013
          MPN: 5M0971838
          CABLE TIE WITH TERMINAL SOCKET
          4,6X200MM
          from £1.10
          from £1.10
          CABLE TIE BASE L-4.6X193 Genuine Lamborghini - New In stock
          CABLE TIE WITH TERMINAL SOCKET Genuine Bentley Part - New (to order)
          # 014
          -
          REAR WIRING SET
          NOT FOR THIS MODEL
          # 015
          MPN: 470971418A
          BATTERY FOR EMERGENCY SUPPLY
          from £638.16
          from £638.16
          BATTERY FOR EMERGENCY DOOR Genuine Lamborghini - New (to order)
          # 016
          MPN: N10595002
          ROUND HD. SCREW
          M5X18
          from £0.98
          from £0.98
          HEXALOBULAR SOCKET M5 X 18 Genuine Lamborghini - New In stock
          # 017
          -
          WIRE SET
          NOT FOR THIS MODEL
          # 018
          MPN: 1J0906029A
          BRACKET FOR CONNECTOR HOUSING
          6R0 973 735 1J0 973 835
          from £4.70
          from £4.70
          CLIP Genuine Lamborghini - New (to order)
          BRACKET FOR CONNECTOR HOUSING Genuine Bentley Part - New (to order)
