lamborghini diablo (1991) accessories for right cylinder head parts diagram

11.03.00 - accessories for right cylinder head

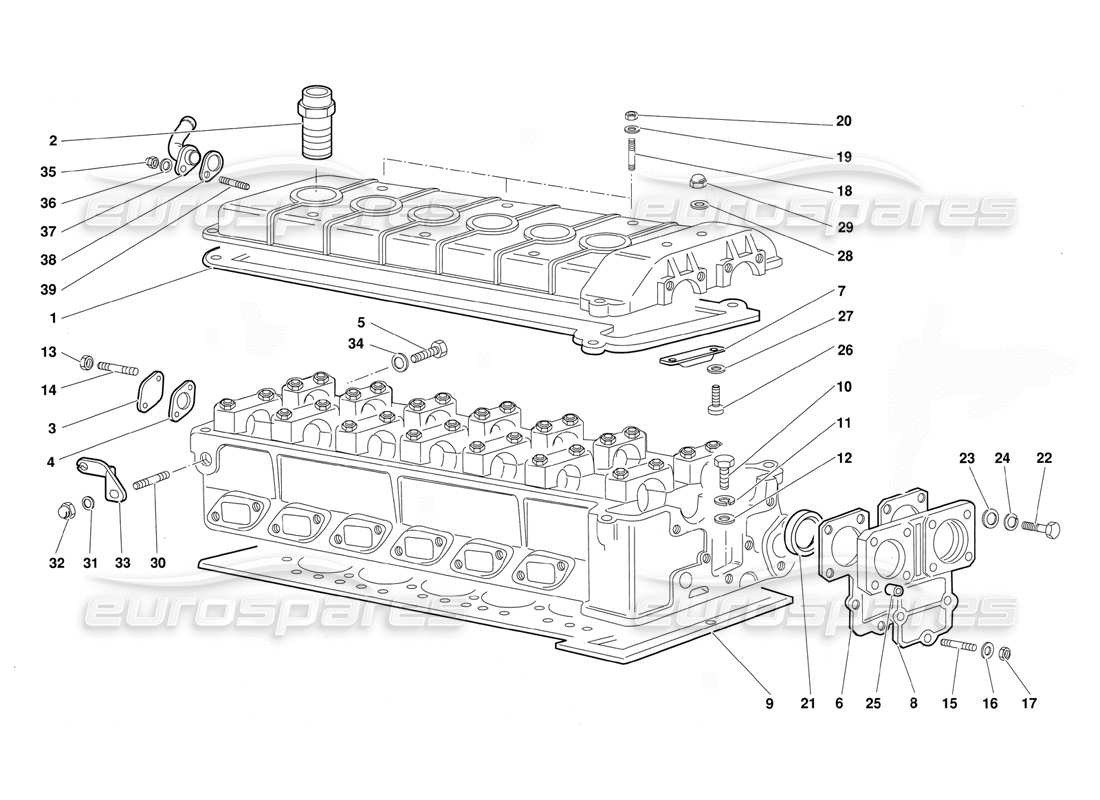

Lamborghini Diablo (1991) Accessories for Right Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 000
        MPN: LCCG002
        CAM COVER GASKET SET
        from £78.64
        from £78.64
        CAM COVER GASKET SET Genuine Lamborghini - New (to order)
        CAM COVER GASKET SET (LCCG002) Original Equipment - New (to order)
        # 001
        MPN: 001120811
        CAM COVER GASKET
        from £52.23
        from £52.23
        R H UPPER COVER/HEAD GASKET (shorter gasket) Genuine Lamborghini - New In stock
        # 002
        MPN: 001120857
        UNION
        BOCCHETTONE
        from £96.19
        from £96.19
        COVER MOUNTING UNION Genuine Lamborghini - New (to order)
        # 003
        MPN: 001121252
        FLANGE
        FLANGIA
        from £16.65
        from £16.65
        OUTLET HOLE CLOSING FLANGE Genuine Lamborghini - New (to order)
        # 004
        MPN: 001121254
        GASKET
        Guarnizione
        from £5.23
        from £5.23
        FLANGE SEAL Genuine Lamborghini - New In stock
        # 005
        MPN: 008100839
        SCREW
        VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 006
        MPN: 001125182
        GASKET
        Guarnizione
        from £17.55
        from £17.55
        RH HEAD FRONT COVER GASKET Genuine Lamborghini - New (to order)
        # 007
        MPN: 001131089
        CHAIN GUIDE
        GUIDA CATENA
        from £198.99
        from £198.99
        GUIDE FOR TIMING CHAIN Genuine Lamborghini - New (to order)
        # 008
        MPN: 001129204
        COVER
        COPERCHIO
        from £394.66
        from £394.66
        RH HEAD FRONT COVER Genuine Lamborghini - New (to order)
        # 009
        MPN: 001129852
        GASKET
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 010
        MPN: 008100807
        SCREW
        VITE
        from £0.53
        from £0.53
        SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
        # 011
        MPN: 008410806
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 012
        MPN: 008400806
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 013
        MPN: 008200605
        NUT
        DADO
        from £1.84
        from £1.84
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 014
        MPN: 008300610
        STUD
        PRIGIONIERO
        from £15.47
        from £15.47
        STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New In stock
        # 015
        MPN: 008300602
        STUD
        PRIGIONIERO
        from £4.19
        from £4.19
        STUD M6X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
        # 016
        MPN: 008410602
        WASHER
        RONDELLA
        from £26.39
        from £26.39
        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
        # 017
        MPN: 008200605
        NUT
        DADO
        from £1.71
        from £1.71
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 018
        MPN: 008300613
        STUD
        PRIGIONIERO
        from £3.07
        from £3.07
        STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
        # 019
        MPN: 008400606
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 020
        MPN: 008200605
        NUT
        DADO
        from £1.84
        from £1.84
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 021
        MPN: 008614211
        SEAL
        ANELLOTENUTA
        from £13.77
        from £13.77
        ANELLO ANG.PF. (A) 42558 VITON Genuine Lamborghini - New In stock
        # 022
        MPN: 008700608
        SCREW
        VITE
        from £0.53
        from £0.53
        SCREW 6X40 UNI 5931/8G/Z Genuine Lamborghini - New In stock
        # 023
        MPN: 008400606
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 024
        MPN: 008410611
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
        # 025
        MPN: 008800604
        DOWEL
        GRANO
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 026
        MPN: 008700661
        SCREW
        VITE
        from £8.00
        from £8.00
        SCREW M6X20 UNI 6107-67/8G/Z Genuine Lamborghini - New (to order)
        # 027
        MPN: WHT003041
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        This part replaces part number 008400609 - and 1 more. Click to view details
        SOFT COPPER WASHER 6.4X12X1.5 Genuine Lamborghini - New (to order)
        # 028
        MPN: 008410602
        WASHER
        RONDELLA
        from £28.66
        from £28.66
        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
        # 029
        MPN: 008200605
        NUT
        DADO .
        from £1.84
        from £1.84
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 030
        MPN: 008300844
        STUD
        PRIGIONIERO
        from £1.32
        from £1.32
        STUD M8X15 UNI 5914 8G ZD Genuine Lamborghini - New In stock
        # 031
        MPN: N90179103
        WASHER
        RONDELLA
        from £1.06
        from £1.06
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New In stock
        # 032
        MPN: N0111849
        NUT
        DADO
        from £1.51
        from £1.51
        This part replaces part number 008200809
        HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
        # 033
        MPN: 001130730
        BRACKET
        FERMAGUAINA
        from £84.58
        from £84.58
        ACCELERATOR WIRE SHEATH STOPPE R Genuine Lamborghini - New (to order)
        # 034
        MPN: 008400802
        WASHER
        RONDELLA
        from £1.03
        from £1.03
        COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
        # 035
        MPN: 008200605
        NUT
        DADO
        from £1.89
        from £1.89
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 036
        MPN: 008410602
        WASHER
        RONDELLA
        from £28.85
        from £28.85
        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
        # 038
        MPN: 001129770
        GASKET
        Guarnizione
        from £4.64
        from £4.64
        VAPOUR OUTLET PIPE SEAL Genuine Lamborghini - New (to order)
        # 039
        MPN: 008300613
        STUD
        PRIGIONIERO
        from £3.07
        from £3.07
        STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
