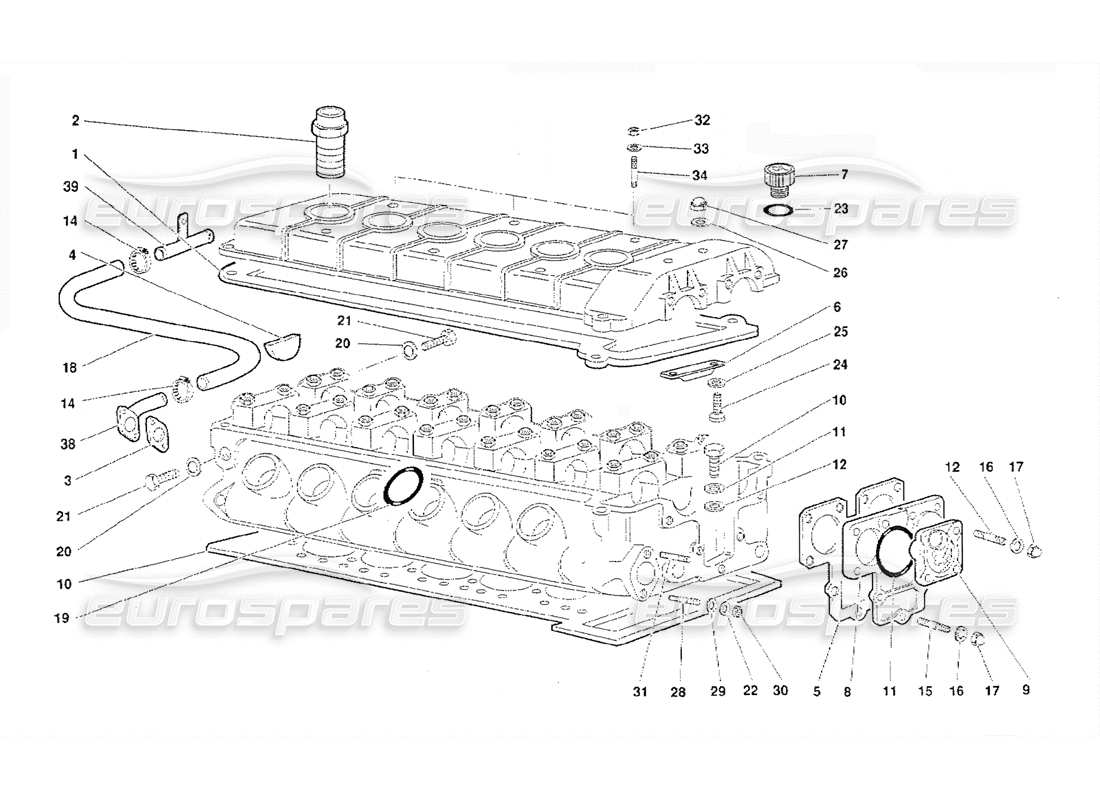

11.04.00 - accessories for left cylinder head
Lamborghini Diablo (1991) Accessories for Left Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001120813
GASKET
Guarnizione
from £78.35
from £78.35
# 002
MPN: 001120857
UNION
BOCCHETTONE
from £96.19
from £96.19
# 003
MPN: 001121254
GASKET
Guarnizione
from £5.23
from £5.23
# 004
MPN: 001122528
PLUG
TAPPO
from £36.67
from £36.67
# 005
MPN: 001125077
GASKET
Guarnizione
from £26.03
from £26.03
# 006
MPN: 001131089
CHAIN GUIDE
GUIDA CATENA
from £198.99
from £198.99
# 007
MPN: 001128555
PLUG
TAPPO
# 008
MPN: 001132669
COVER
COPERCHIO
from £446.07
from £446.07
# 009
MPN: 001132649
COVER
COPERCHIETTO
from £136.81
from £136.81
# 010
MPN: 001129853
HEAD GASKET
Supersession
Supersession
# 011
MPN: 008606205
SEAL
ANELLO TENUTA
from £2.69
from £2.69
This part replaces part number 008606201
# 012
MPN: 008300631
STUD
PRIGIONIERO
from £10.64
from £10.64
# 014
MPN: 008832204
STRAP
FASCETTA
from £10.49
from £10.49
# 015
MPN: 008300602
STUD
PRIGIONIERO
from £4.19
from £4.19
# 016
MPN: 008410602
WASHER
RONDELLA
from £26.39
from £26.39
# 017
MPN: 008200605
NUT
DADO
from £1.71
from £1.71
# 018
MPN: 410819370
PIPE
Tubo
from £38.09
from £38.09
# 019
MPN: 008604703
SEAL
ANELLO TENUTA OLIO
from £5.15
from £5.15
This part replaces part number 008604701
# 020
MPN: 008400802
WASHER
RONDELLA
from £1.00
from £1.00
# 021
MPN: 005100839
SCREW
VITE
# 022
MPN: 003200816
NUT
DADO
# 023
MPN: 008602801
OIL SEAL
ANELLO TENUTA OLIO
from £2.37
from £2.37
# 024
MPN: 008700661
SCREW
VITE
from £8.00
from £8.00
# 025
MPN: WHT003041
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400609 - and 1 more. Click to view details
# 026
MPN: 008410502
WASHER
RONDELLA
Supersession
Supersession
# 027
MPN: 008200605
NUT
DADO
from £1.84
from £1.84
# 028
MPN: 008300540
STUD
PRIGIONIERO
# 029
MPN: WHT001514
WASHER
RONDELLA
from £15.09
from £15.09
This part replaces part number 008410805
# 030
MPN: 008200816
NUT
DADO
from £2.90
from £2.90
# 031
MPN: 008300833
STUD
PRIGIONIERO
from £3.82
from £3.82
# 032
MPN: 008200605
NUT
DADO
from £1.84
from £1.84
# 033
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 034
MPN: 008800613
STUD
PRIGIONIERO
# 035
MPN: 008100807
SCREW
VITE
from £0.53
from £0.53
# 036
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 037
MPN: 008400806
WASHED
RONDELLA
Supersession
Supersession
# 038
MPN: 001730063
PIPE
Tubo
from £184.07
from £184.07
# 039
MPN: 001730064
CONNECTION
GIUNZIONE
from £14.85
from £14.85
