12.01.00 - timing system

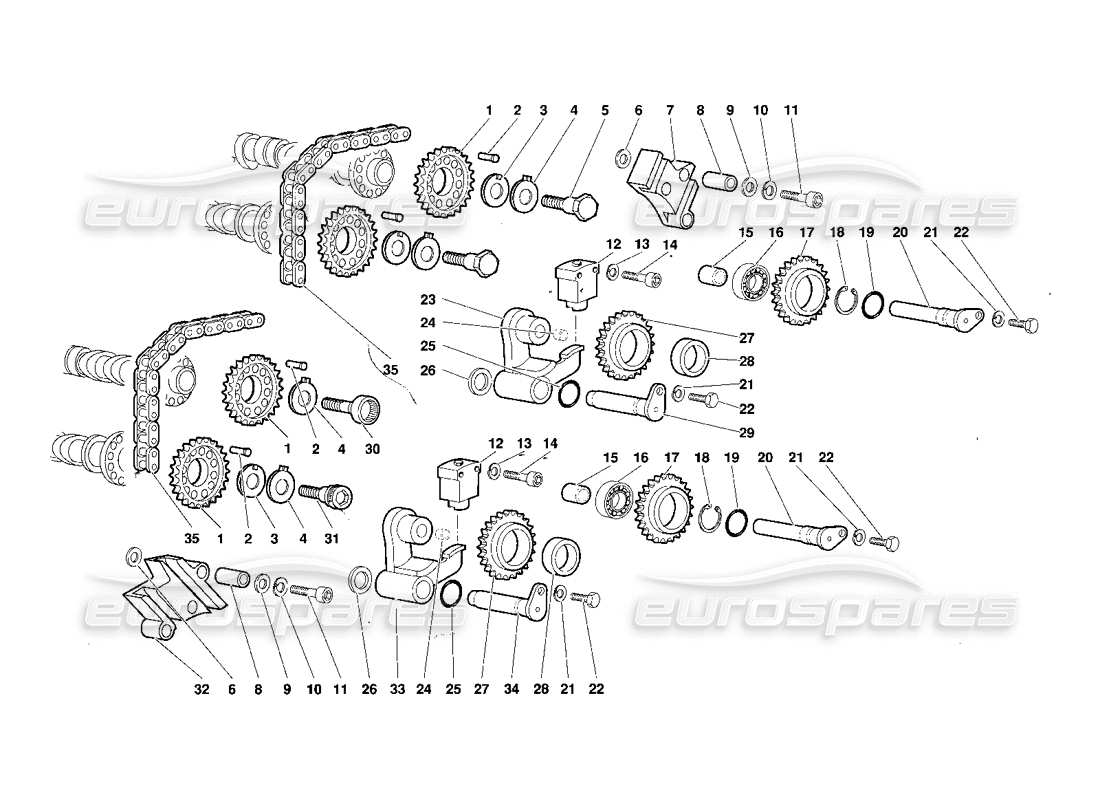

Lamborghini Diablo (1991) Timing System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001224809
GEAR
INGRANAGGIO
from £2,269.69
from £2,269.69
# 002
MPN: 001201964
DOWEL
GRAND
from £28.78
from £28.78
# 003
MPN: 001219761
SPACER
DISTANZIALE
from £58.37
from £58.37
# 004
MPN: 001219762
LOCKPLATE
PIASTRINA SICUREZZA
from £27.70
from £27.70
# 005
MPN: 001225771
SCREW
VITE
from £187.39
from £187.39
# 006
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: 001231720
GUIDE
GUIDA CATENA
from £61.76
from £61.76
# 008
MPN: 001231087
BUSHING
BOCCOLA
from £6.47
from £6.47
# 009
MPN: 001231040
WASHER
RONDELLA
# 010
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 011
MPN: 008700844
SCREW
VITE
from £0.53
from £0.53
# 012
MPN: 001222770
CHAIN STRETCHER
TENDICATENA
from £369.20
from £369.20
# 013
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 014
MPN: 008700829
SCREW
VITE
from £3.65
from £3.65
# 015
MPN: 001225046
SPACER
DISTANZIALE
from £19.94
from £19.94
# 016
MPN: 008501204
BEARING
CUSCINETTO
from £4.23
from £4.23
# 017
MPN: 001224991
GEAR
INGRANAGGIO
from £314.73
from £314.73
# 018
MPN: 008573203
RETAINER RING
ANELLO RITEGNO
from £3.78
from £3.78
# 019
MPN: 008601103
SEAL
ANELLO TENUTA
from £6.64
from £6.64
# 020
MPN: 001228095
PIN
PERNO
from £288.54
from £288.54
# 021
MPN: 008410603
LOCK WASHER
RONDELLA
Supersession
Supersession
# 022
MPN: 008100607
SCREW
VITE
from £3.65
from £3.65
# 023
MPN: 001230907
ROCKER
BILANCIERE SINISTRQ
from £530.46
from £530.46
# 024
MPN: 008930803
PLUG
TAPPO
from £0.54
from £0.54
# 025
MPN: 008601303
SEAL
ANELLO TENUTA
from £0.53
from £0.53
# 026
MPN: 008401234
SPACER
DISTANZIALE
Supersession
Supersession
# 027
MPN: 001224810
GEAR
INGRANAGGIO
from £744.46
from £744.46
# 028
MPN: 001225275
BUSHING
BOCCOLA
from £9.08
from £9.08
# 029
MPN: 001232020
PIN
PERNO PER TENDICATENA SX
from £184.47
from £184.47
# 030
MPN: 001225448
SCREW
VITE CON TRAINO
from £309.26
from £309.26
# 031
MPN: 001228419
SCREW
VITE CON TRAINO
from £272.79
from £272.79
# 032
MPN: 001231719
GUIDE
GUIDA CATENA
from £39.09
from £39.09
# 033
MPN: 001231651
ROCKER
BILANCIERE PER TENDICATENA DX
from £530.46
from £530.46
# 034
MPN: 001232021
PIN
PERNO PER TENDICATENA DESTRO
from £184.47
from £184.47
# 035
MPN: 001231564
TIMING CHAIN
CATENA Dl DISTRIBUZIONE
from £580.80
from £580.80
This part replaces part number 001229930
