lamborghini diablo (1991) crankgears (valid for june 1992 version) parts diagram

14.01.01 - Crankgears (Valid for June 1992 Version)

Lamborghini Diablo (1991) Crankgears (Valid for June 1992 Version) Parts Diagram

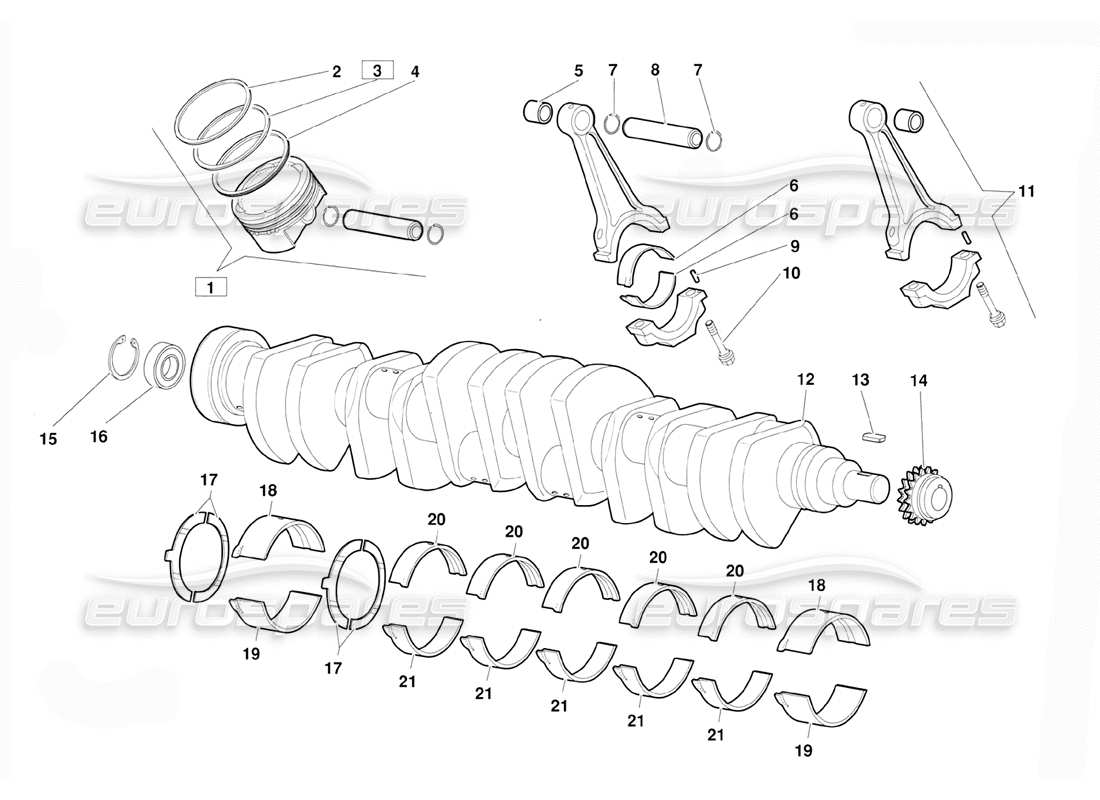

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 001433968
          PISTON
          from £853.99
          from £853.99
          PISTON COMPLETE Genuine Lamborghini - New (to order)
          # 001
          MPN: 001433968
          PISTON
          (Valid for June 1992 version) PISTONE COMPL. (dalla matricola 12467) (Particolare intercambiabile)
          from £853.99
          from £853.99
          PISTON COMPLETE Genuine Lamborghini - New (to order)
          # 002
          MPN: 07M107311
          PISTON RING
          (Valid for June 1992 version) SEGMENTO
          from £206.22
          from £206.22
          RING Genuine Lamborghini - New In stock
          # 003
          MPN: 001429984
          PISTON RING
          (Valid for June 1992 version) SEGMENTO (fino matricola 12466) (compatibile solo con pistone 001430953)
          from £37.07
          from £37.07
          TAPERED COMPRESSION RING Genuine Lamborghini - New In stock
          # 003
          MPN: 07M107313
          PISTON RING
          (Valid for June 1992 version) SEGMENTO (dalla matricola 12467) (compatibile solo con pistone 001433968)
          from £206.22
          from £206.22
          INTERMEDIATE RING Genuine Lamborghini - New (to order)
          # 004
          MPN: 07M107321
          PISTON RING
          (Valid for June 1992 version) SEGMENTO
          from £543.01
          from £543.01
          OIL SCRAPER Genuine Lamborghini - New (to order)
          # 005
          MPN: 001430768
          BUSHING
          (Valid for June 1992 version) BRONZINA
          from £34.95
          from £34.95
          SMALL END BUSHING Genuine Lamborghini - New (to order)
          # 006
          MPN: 07M105701
          HALF BEARING
          from £54.90
          from £54.90
          This part replaces part number 001419907
          CONNECTING ROD BEARING SHELL Genuine Lamborghini - New In stock
          # 007
          MPN: 001430537
          RETAINER RING
          (Valid for June 1992 version) ANELLO RITEGNO
          from £0.76
          from £0.76
          RING Genuine Lamborghini - New (to order)
          # 008
          MPN: 001430536
          PISTON PIN
          (Valid for June 1992 version) SPINOTTO
          from £235.19
          from £235.19
          PISTON PIN Genuine Lamborghini - New (to order)
          # 009
          MPN: 008900308
          DOWEL
          (Valid for June 1992 version) GRANO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 010
          MPN: 001422563
          CON. ROD BOLT
          (Valid for June 1992 version) BULLONE PER BIELLA
          from £46.01
          from £46.01
          CONNECTING ROD BOLT Genuine Lamborghini - New In stock
          # 011
          MPN: 001429577
          CON ROD ASSY
          from £451.04
          from £451.04
          CONNECTING ROD & BOLTS/DOWELS Genuine Lamborghini - New (to order)
          # 012
          MPN: 423400300
          crankshaft
          from £11,620.80
          from £11,620.80
          crankshaft Genuine Lamborghini - New (to order)
          # 013
          MPN: 008860506
          Key
          (Valid for June 1992 version) CHIAVETTA
          Lamborghini PART 008860506 Genuine Lamborghini - New (to order)
          # 014
          MPN: 001224808
          GEAR
          (Valid for June 1992 version) INGRANAGGIO
          from £350.18
          from £350.18
          FRONT CRANKSHAFT GEAR Genuine Lamborghini - New (to order)
          # 015
          MPN: 07M109381
          RETAINER RING
          (Valid for June 1992 version) ANELLO RITEGNO
          from £1.16
          from £1.16
          This part replaces part number 008573501 - and 1 more. Click to view details
          SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
          # 016
          MPN: 410109264
          BEARING
          (Valid for June 1992 version) CUSCINETTO
          from £14.84
          from £14.84
          This part replaces part number 008501501 - and 2 more. Click to view details
          BEARING Genuine Lamborghini - New In stock
          # 017
          MPN: 07M105532
          THRUST WASHER (PRICE EACH)
          use:2x 07M105531A & 2x 07M105532
          from £196.28
          from £196.28
          THRUST SHIM Genuine Lamborghini - New In stock
          # 018
          MPN: 07M105707
          HALF-BEARING
          (Valid for June 1992 version) SEMICUSCINETTO
          from £3,575.29
          from £3,575.29
          BUSHING Genuine Lamborghini - New In stock
          # 019
          MPN: 07M105707A
          HALF-BEARING
          (Valid for June 1992 version) SEMICUSCINETTO
          from £64.51
          from £64.51
          BUSHING Genuine Lamborghini - New (to order)
          # 020
          MPN: 07M105707B
          HALF-BEARING
          (Valid for June 1992 version) SEMICUSCINETTO
          from £153.04
          from £153.04
          BUSHING Genuine Lamborghini - New (to order)
          # 021
          MPN: 07M105707C
          HALF-BEARING
          (Valid for June 1992 version) SEMICUSCINETTO
          from £62.77
          from £62.77
          BUSHING Genuine Lamborghini - New In stock
          # 022
          MPN: 001436737
          MAIN & BIG ENDS BEARINGS STD
          from £1,435.31
          from £1,435.31
          BUSHING SET Genuine Lamborghini - New (to order)
