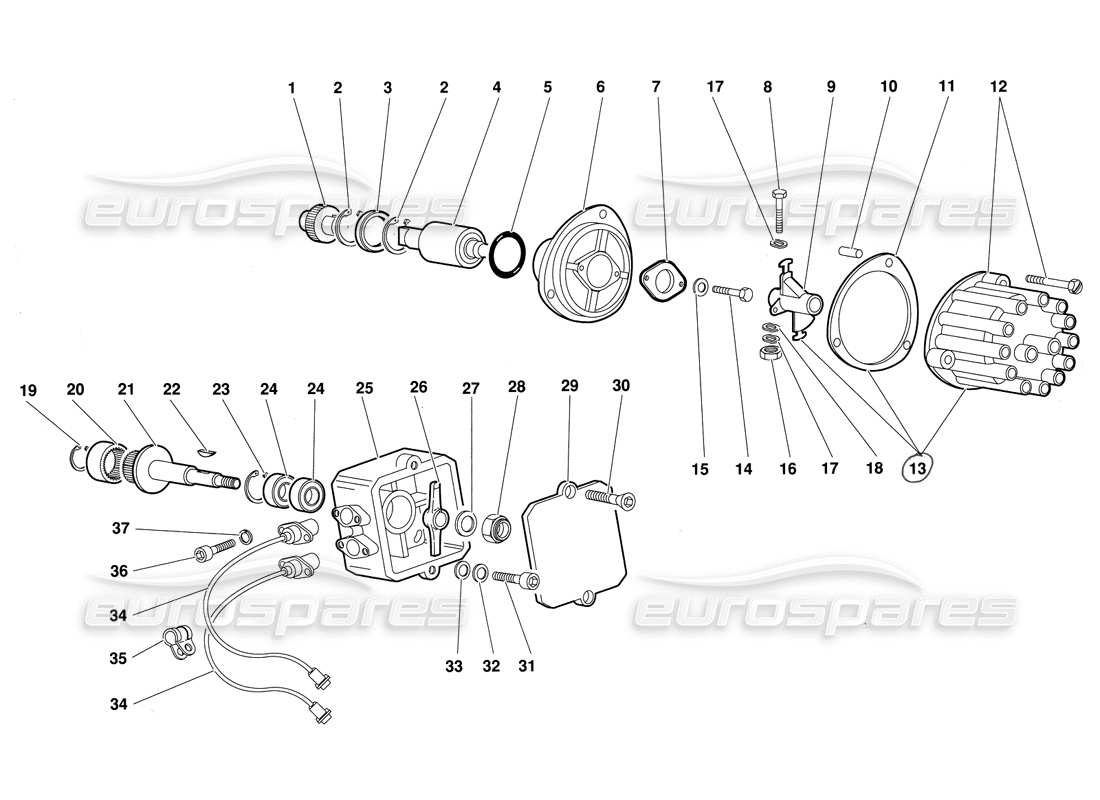

16.01.00 - Ignition Distributor and Phase Sensors

Lamborghini Diablo (1991) Ignition Distributor and Phase Sensors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 001625447
        GEAR
        INGRANAGGIO
        from £166.24
        from £166.24
        SPARK DISTRIBUTION DRIVE Genuine Lamborghini - New (to order)
        # 002
        MPN: 008573202
        RETAINER RING
        ANELLO RITEGNO
        from £3.48
        from £3.48
        O-RING I 30 UNI 3654 Genuine Lamborghini - New (to order)
        # 003
        MPN: 07L103051
        SEAL
        from £21.80
        from £21.80
        SEAL Genuine Lamborghini - New In stock
        # 004
        MPN: 001625446
        SMALL SHAFT
        ALBERINO
        from £121.88
        from £121.88
        SPARK DISTRIBUTOR CAP RADIAL B EARING Genuine Lamborghini - New (to order)
        # 005
        MPN: 008604601
        SEAL
        ANELLO TENUTA
        from £1.81
        from £1.81
        RING 46 MM OR Genuine Lamborghini - New In stock
        # 006
        MPN: 001625303
        FLANGE
        FLANGIA
        from £533.95
        from £533.95
        DISTRIBUTOR CAP BRACKET Genuine Lamborghini - New (to order)
        # 007
        MPN: 001629805
        FLANGE
        FLANGIA
        from £13.85
        from £13.85
        SHEET Genuine Lamborghini - New In stock
        # 008
        MPN: 008100506
        SCREW
        VITE
        from £6.43
        from £6.43
        SCREW M5X14 UNI 5739 Genuine Lamborghini - New (to order)
        # 009
        MPN: 001627730
        ROTOR ARM
        from £206.88
        from £206.88
        ROTATING BRUSH (001627730) Eurospares Approved Part - New In stock
        ROTATING BRUSH Genuine Lamborghini - New (to order)
        # 010
        MPN: 008850201
        DOWEL
        GRANO
        from £32.07
        from £32.07
        PIN UNI 1707H11 Z.5X8 Genuine Lamborghini - New In stock
        # 011
        MPN: 001627729
        GASKET
        Guarnizione
        from £9.66
        from £9.66
        SEAL Genuine Lamborghini - New In stock
        # 012
        MPN: 001627728
        DISTRIBUTOR CAP
        from £886.26
        from £886.26
        DISTRIBUTOR CAP Genuine Lamborghini - New In stock
        # 013
        MPN: 001625445
        IGN DISTRIBUTOR
        DISTRIBUTORE ACCENSIONE
        from £1,629.86
        from £1,629.86
        SPARK DISTRIBUTOR Genuine Lamborghini - New (to order)
        # 014
        MPN: 008100508
        SCREW
        VITE
        from £3.65
        from £3.65
        SCREW M5X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
        # 015
        MPN: 008410502
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 016
        MPN: 008200509
        NUT
        DADO
        NUT Genuine Lamborghini - New (to order)
        # 017
        MPN: 008410503
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 018
        MPN: 008400507
        WASHER
        RONDELLA
        WASHER Genuine Lamborghini - New (to order)
        # 019
        MPN: 008573202
        RETAINER RING
        ANELLO RITEGNO
        from £3.48
        from £3.48
        O-RING I 30 UNI 3654 Genuine Lamborghini - New (to order)
        # 020
        MPN: 001624409
        BUSHING
        BUSSOLA
        from £162.56
        from £162.56
        P.T.O. SLEEVE Genuine Lamborghini - New (to order)
        # 021
        MPN: 001629249
        SMALL SHAFT
        ALBERINO
        from £259.52
        from £259.52
        PHONIC WHEEL SHAFT Genuine Lamborghini - New (to order)
        # 022
        MPN: 008860301
        Key
        LINGUETTA
        from £0.73
        from £0.73
        KEY 3X5X13 Genuine Lamborghini - New (to order)
        KEY 3X5X13 Genuine Lamborghini - New (other) In stock
        LINGUETTA
        # 023
        MPN: 07M109381
        RETAINER RING
        ANELLO RITEGNO
        from £1.16
        from £1.16
        This part replaces part number 008573501 - and 1 more. Click to view details
        SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
        # 024
        MPN: 410109264
        BEARING
        CUSCINETTO
        from £14.84
        from £14.84
        This part replaces part number 008501501 - and 2 more. Click to view details
        BEARING Genuine Lamborghini - New In stock
        # 025
        MPN: 001629776
        CASE
        SCATOLA PICK-UP
        from £358.18
        from £358.18
        PICK-UP BRACKET Genuine Lamborghini - New (to order)
        # 026
        MPN: 001632285
        PULSE GENERATOR
        GENERATORE Dl IMPULSI
        from £223.86
        from £223.86
        TDC SENSOR BRUSH Genuine Lamborghini - New (to order)
        # 027
        MPN: N90179103
        WASHER
        RONDELLA
        from £1.06
        from £1.06
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New In stock
        # 028
        MPN: 008200819
        NUT
        DADO
        from £3.65
        from £3.65
        8X1X8.5 UNI 7474/5S/ZC NU T Genuine Lamborghini - New (to order)
        # 030
        MPN: 008700501
        SCREW
        VITE
        from £1.82
        from £1.82
        SCREW M5X10 UNI 5933/12K/F Genuine Lamborghini - New In stock
        # 031
        MPN: 008700608
        SCREW
        VITE
        from £0.53
        from £0.53
        SCREW 6X40 UNI 5931/8G/Z Genuine Lamborghini - New In stock
        # 032
        MPN: 008400606
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 033
        MPN: 008410611
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
        # 034
        MPN: 07M905381
        TIMING SENSOR
        (replaces: 001625411)
        from £393.41
        from £393.41
        This part replaces part number 001628403
        SENSOR SEN 8 D Genuine Lamborghini - New (to order)
        # 034
        MPN: 07M905381
        TIMING SENSOR
        from £393.41
        from £393.41
        This part replaces part number 001628403
        SENSOR SEN 8 D Genuine Lamborghini - New (to order)
        # 035
        MPN: 001628404
        STRAP
        FASCETTA
        from £1.87
        from £1.87
        PEG Genuine Lamborghini - New (to order)
        # 036
        MPN: 008700512
        SCREW
        VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 037
        MPN: 008410502
        WASHER
        RONDELLA
        Supersession
        Supersession
