lamborghini diablo (1991) electrical components (valid for june 1992 version) parts diagram

16.02.01 - Electrical Components (Valid for June 1992 Version)

Lamborghini Diablo (1991) Electrical Components (Valid for June 1992 Version) Parts Diagram

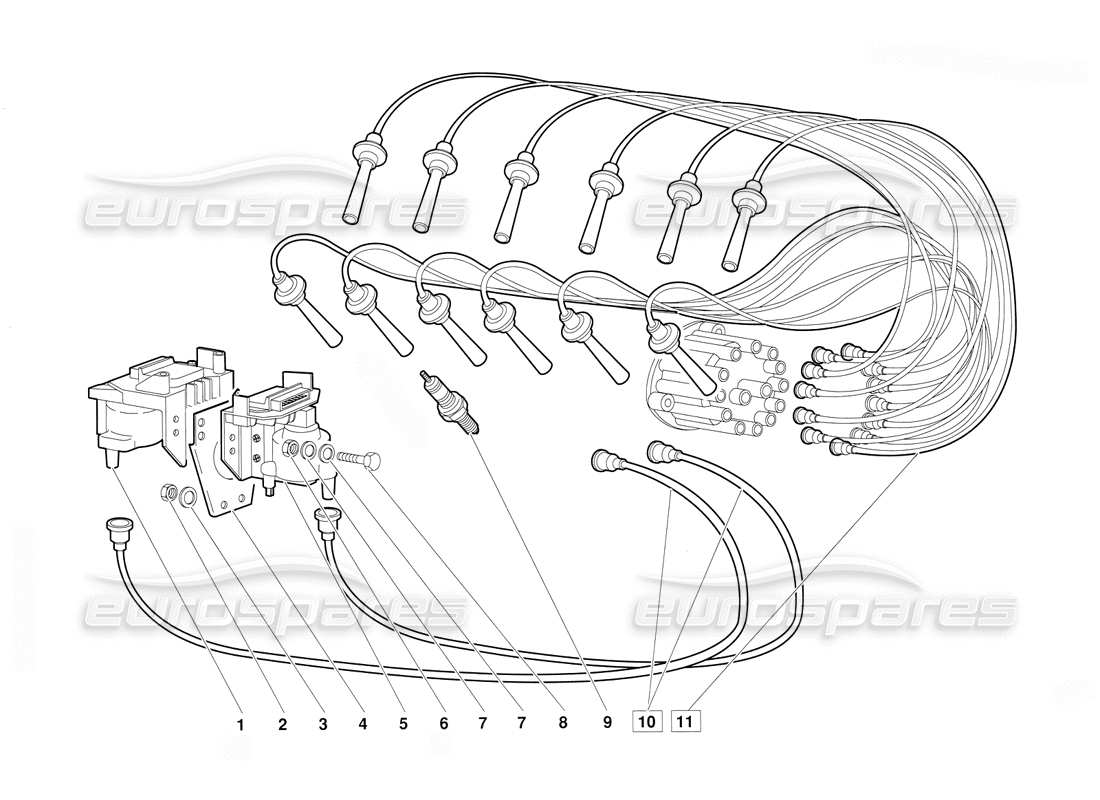

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 001630792
    IGNITION MODULE
    143413
    from £1,600.19
    from £1,600.19
    This part replaces part number 001631625
    POWER UNIT Genuine Lamborghini - New (to order)
    # 002
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 003
    MPN: 008400606
    WASHER
    (Valid for June 1992 version) RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 004
    MPN: 001630869
    PLATE
    (Valid for June 1992 version) PIASTRA
    from £23.97
    from £23.97
    POWER UNIT PLATE Genuine Lamborghini - New (to order)
    # 005
    MPN: 001631625
    IGNITION MODULE (AEI600G)
    MODULO ACCENSIONE BANCATA SX
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: N0111849
    NUT
    (Valid for June 1992 version) DADO
    from £1.52
    from £1.52
    This part replaces part number 008200809
    HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
    # 007
    MPN: 008400606
    WASHER
    (Valid for June 1992 version) RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 008
    MPN: 008100827
    SCREW
    (Valid for June 1992 version) VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 001630289
    SPARK PLUG
    Alternative USE 174954
    from £13.50
    from £13.50
    SPARK PLUG Genuine Lamborghini - New (to order)
    Alternative (#174954) SPARK PLUG (NGK IRIDIUM IX) Uprated Original Equipment - New In stock
    Uprated Iridium Spark Plug
    # 010
    MPN: 006129923
    ELECT CABLE
    (Valid for June 1992 version) ASSIEME CAVI DISTRIBUTORE/MODULI
    Lamborghini PART 006129923 Genuine Lamborghini - New (to order)
    # 010
    MPN: 006131474
    ELECT CABLE
    (Valid for June 1992 version) ASSIEME CAVI DISTRIBUTORE/MODULI (Particolare intercambiabile)
    from £152.18
    from £152.18
    MODULE/SPARK DISTRIBUTOR WIRES Genuine Lamborghini - New (to order)
    # 011
    MPN: 006129674
    SPARK PLUG CABLE
    (Valid for June 1992 version) ASSIEME CAVI CANDELE
    from £2,064.49
    from £2,064.49
    see 006134023 Genuine Lamborghini - New (to order)
    # 011
    MPN: 006131466
    SPARK PLUG CABLE
    (Valid for June 1992 version) ASSIEME CAVI CANDELE (Particolare intercambiabile)
    Lamborghini PART 006131466 Genuine Lamborghini - New (to order)
    # 011
    MPN: LHT011

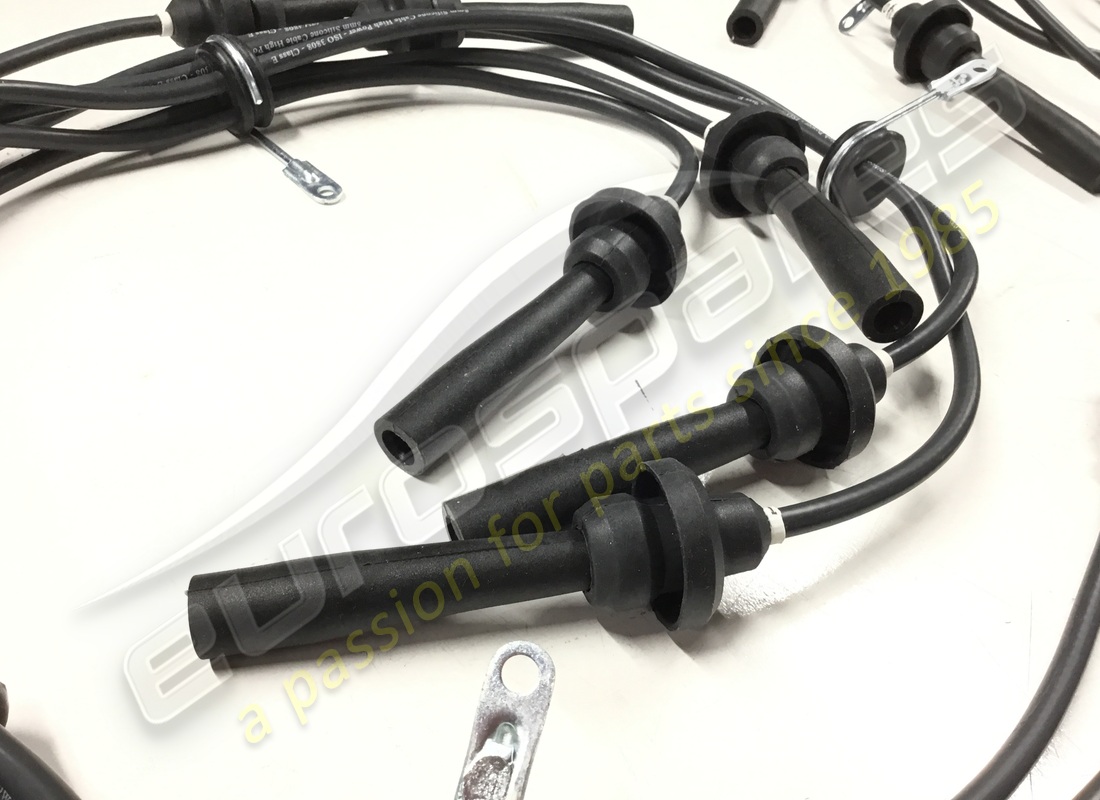

    Complete HT Lead Set
    from £1,195.00
    from £1,195.00
    Complete HT Lead Set Genuine Lamborghini - New (to order)
    Complete HT Lead Set Eurospares Approved Part - New In stock
