lamborghini diablo (1991) alternator (valid for june 1992 version) parts diagram

16.03.01 - Alternator (Valid for June 1992 Version)

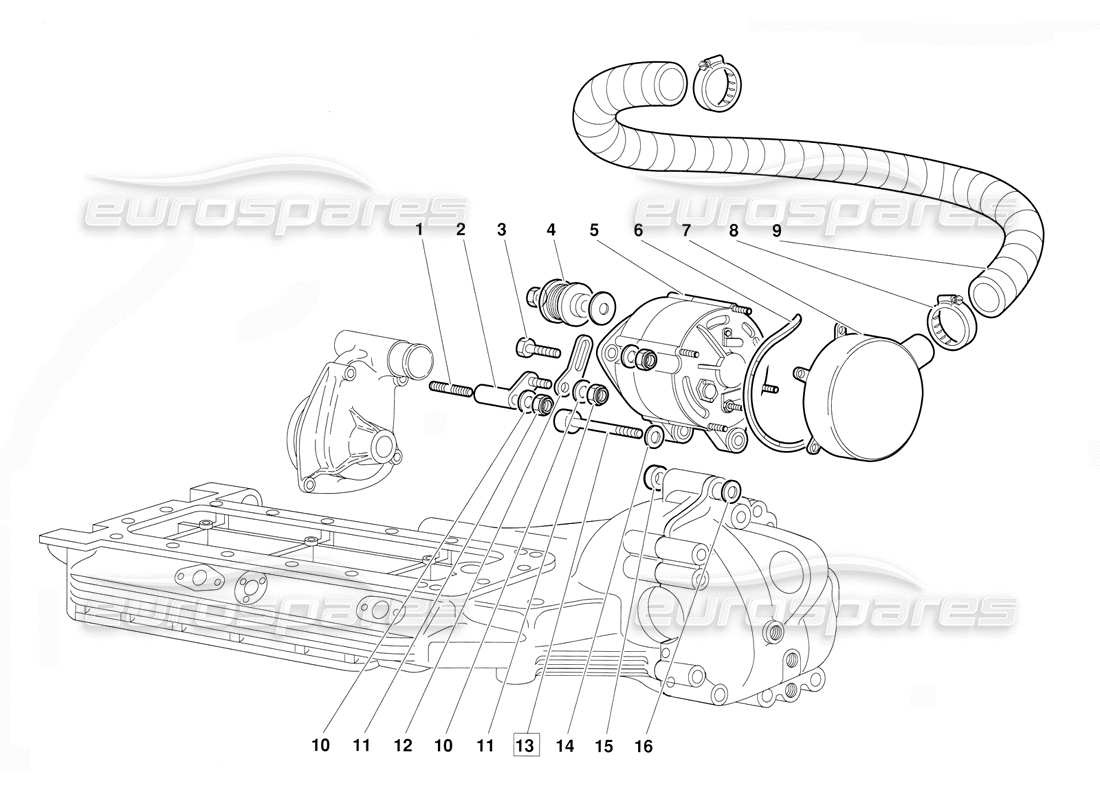

Lamborghini Diablo (1991) Alternator (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008301040
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £24.71
    from £24.71
    STUD M10X65 UNI 59118G/Z D Genuine Lamborghini - New (to order)
    # 002
    MPN: 001632543
    SUPPORT
    (Valid for June 1992 version) SUPPORTO
    from £169.96
    from £169.96
    HEIGHT ADJUSTMENT BRACKET ASSE MBLY Genuine Lamborghini - New (to order)
    # 003
    MPN: 008101048
    SCREW
    (Valid for June 1992 version) VITE
    from £2.37
    from £2.37
    SCREW M10X1.5X35 UNI5737/ Genuine Lamborghini - New (to order)
    # 004
    MPN: 001629620
    PULLEY
    (Valid for June 1992 version) PULEGGIA
    from £158.36
    from £158.36
    ALTERNATOR DRIVE PULLEY Genuine Lamborghini - New (to order)
    # 005
    MPN: 001625271
    ALTERNATOR
    (Valid for June 1992 version) ALTERNATORE
    from £2,178.90
    from £2,178.90
    ALTERNATOR DRIVE Genuine Lamborghini - New (to order)
    # 006
    MPN: 001625920
    GASKET
    (Valid for June 1992 version) GUARNIZIONE
    from £81.10
    from £81.10
    AIR MANIFOLD SEAL ONSHAFT Genuine Lamborghini - New (to order)
    # 007
    MPN: 001630088
    CONVEYOR
    (Valid for June 1992 version) CONVOGLIATORE
    from £370.93
    from £370.93
    ALTERNATOR AIR MANIFOLD Genuine Lamborghini - New (to order)
    # 008
    MPN: 008833901
    STRAP
    (Valid for June 1992 version) FASCETTA
    from £6.35
    from £6.35
    CLAMP Genuine Lamborghini - New (to order)
    # 009
    MPN: 001630090
    PIPE
    (Valid for June 1992 version) TUBO
    from £194.56
    from £194.56
    AIR DELIVERY PIPE TOALTERNATOR Genuine Lamborghini - New (to order)
    # 010
    MPN: 008401028
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £3.78
    from £3.78
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New (to order)
    # 011
    MPN: 008201010
    NUT
    (Valid for June 1992 version) DADO
    from £0.90
    from £0.90
    M10 SELF LOCKING NUT Genuine Lamborghini - New In stock
    # 012
    MPN: 001631501
    PLATE
    (Valid for June 1992 version) PIASTRA ASOLATA
    from £51.07
    from £51.07
    ALTERNATOR ADJUSTMENT BRACKET Genuine Lamborghini - New (to order)
    # 013
    MPN: 008701022
    SCREW
    (Valid for June 1992 version) VITE (dalla 12583) (particolare intercambiabile)
    from £1.12
    from £1.12
    SCREW M10X130UNI5931/8G/ZD Genuine Lamborghini - New In stock
    # 014
    MPN: WHT000768
    WASHER
    from £1.25
    from £1.25
    This part replaces part number 008410806 - and 1 more. Click to view details
    SPRING WASHER Genuine Lamborghini - New In stock
    # 015
    MPN: 001629623
    SPACER
    (Valid for June 1992 version) DISTANZIALESP10MM
    from £13.03
    from £13.03
    ALTERNATOR BRACKET SHIM Genuine Lamborghini - New (to order)
    # 016
    MPN: 001629624
    SPACER
    (Valid for June 1992 version) DISTANZIALE SP 2 MM
    from £2.61
    from £2.61
    ALTERNATOR BRACKET SHIM Genuine Lamborghini - New (to order)
