lamborghini diablo (1991) thermostat and water pump (valid for june 1992 version) parts diagram

17.01.01 - Thermostat and Water Pump (Valid for June 1992 Version)

Lamborghini Diablo (1991) Thermostat and Water Pump (Valid for June 1992 Version) Parts Diagram

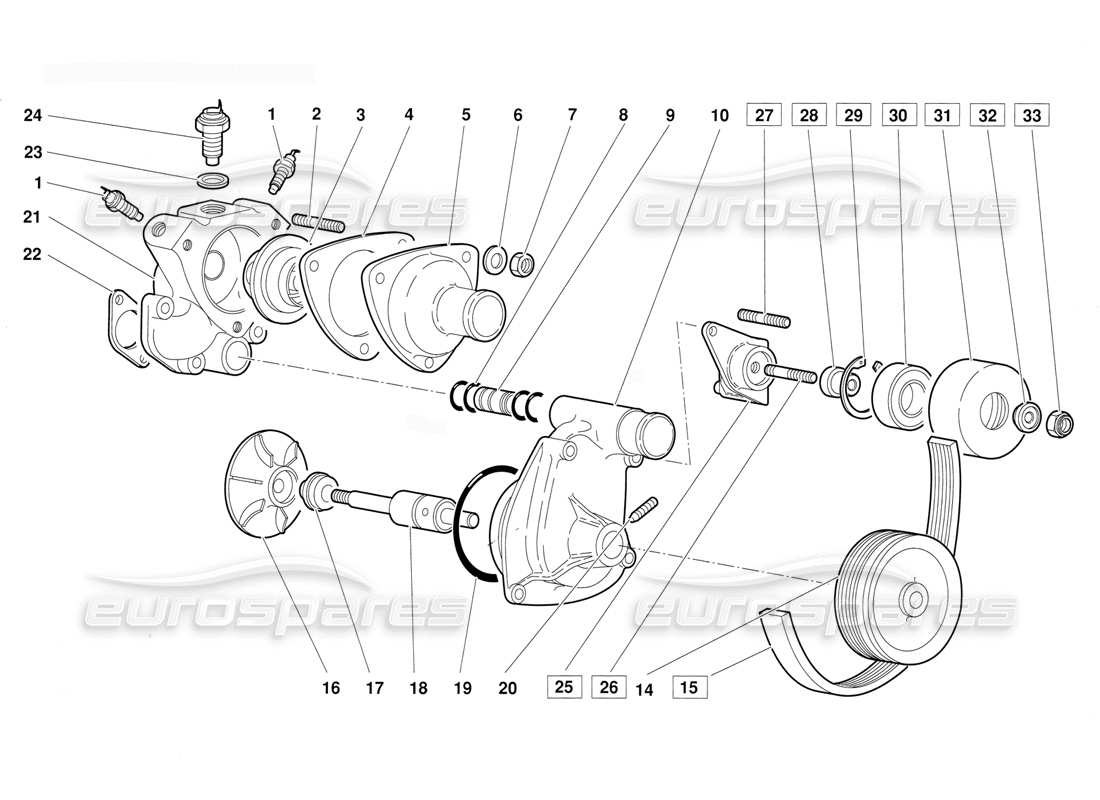

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 00
    MPN: 0017002474
    WATER PUMP ASSY
    (power steering type)
    from £3,445.61
    from £3,445.61
    # 000
    MPN: 0017002473
    WATER PUMP ASSY
    (non power steering type)
    from £2,995.99
    from £2,995.99
    # 001
    MPN: 07L919501A
    TEMPERATURE SENS.
    (Valid for June 1992 version) SENSORE TEMPERATURA
    from £116.28
    from £116.28
    This part replaces part number 002024394 - and 1 more. Click to view details
    # 002
    MPN: 008300615
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £12.69
    from £12.69
    # 003
    MPN: 001726644
    THERMOSTAT
    (Valid for June 1992 version) TERMOSTATO
    from £321.70
    from £321.70
    # 004
    MPN: 001726745
    GASKET
    (Valid for June 1992 version) GUARNIZIONE
    from £4.64
    from £4.64
    # 005
    MPN: 001726731
    COVER
    (Valid for June 1992 version) COPERCHIO
    from £373.94
    from £373.94
    # 006
    MPN: 008400606
    WASHER
    (Valid for June 1992 version) RONDELLA
    Supersession
    Supersession
    # 007
    MPN: 008200605
    NUT
    (Valid for June 1992 version) DADO
    from £1.79
    from £1.79
    # 008
    MPN: 008601801
    SEAL
    (Valid for June 1992 version) ANELLOTENUTA
    from £7.01
    from £7.01
    # 009
    MPN: 001726729
    PIPE
    (Valid for June 1992 version) TUBO
    from £83.18
    from £83.18
    # 010
    MPN: 001729615
    COVER
    (Valid for June 1992 version) COPERCHIO
    from £968.81
    from £968.81
    # 014
    MPN: 001729616
    PULLEY
    (Valid for June 1992 version) PULEGGIA
    from £698.63
    from £698.63
    # 015
    MPN: 001725107
    TRANS BELT
    (Valid for June 1992 version) CINGHIA POMPA ACQUA E ALTERNAT. (fino alia 12582)
    from £80.33
    from £80.33
    # 015
    MPN: 001731857
    TRANS BELT
    (Valid for June 1992 version) CINGHIA POMPA ACQUA E ALTERNAT. (dalla 12583)
    from £66.00
    from £66.00
    # 016
    MPN: 001734252
    IMPELLER
    from £359.69
    from £359.69
    # 017
    MPN: 001726539
    SEAL
    (Valid for June 1992 version) ANELLOTENUTA
    from £137.92
    from £137.92
    # 018
    MPN: 001727739
    SMALL SHAFT
    (Valid for June 1992 version) ALBERINO
    from £263.71
    from £263.71
    # 019
    MPN: WHT003018
    SEAL
    (Valid for June 1992 version) ANELLOTENUTA
    from £53.01
    from £53.01
    This part replaces part number 008609907
    # 020
    MPN: 008700650
    SCREW
    (Valid for June 1992 version) VITE
    from £1.68
    from £1.68
    # 021
    MPN: 001726730
    BODY
    (Valid for June 1992 version) CORPO TERMOSTATO
    from £281.90
    from £281.90
    # 022
    MPN: 001721922
    GASKET
    (Valid for June 1992 version) GUARNIZIONE
    from £6.53
    from £6.53
    # 023
    MPN: 008401425
    WASHER
    (Valid for June 1992 version) RONDELLA
    Supersession
    Supersession
    # 024
    MPN: 001724221
    THERMOCOUPLE
    (Valid for June 1992 version) TERMOCOPPIA
    from £79.90
    from £79.90
    # 025
    MPN: 001731878
    SUPPORT
    (Valid for June 1992 version) SUPPORTO TENDICINGHIA (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedent! con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £208.80
    from £208.80
    # 026
    MPN: 008301004
    STUD
    (Valid for June 1992 version) PRIGIONIERO (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £18.99
    from £18.99
    # 027
    MPN: 008300880
    STUD
    (Valid for June 1992 version) PRIGIONIERO (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £15.47
    from £15.47
    # 028
    MPN: 001626942
    BUSHING
    (Valid for June 1992 version) BUSSOLA (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedent! con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £24.78
    from £24.78
    # 029
    MPN: 008575201
    RETAINER RING
    (Valid for June 1992 version) ANELLO RITEGNO (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £0.79
    from £0.79
    # 030
    MPN: 008502501
    BEARING
    (Valid for June 1992 version) CUSCINETTO (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £34.37
    from £34.37
    # 031
    MPN: 001228675
    Belt stretcher
    (Valid for June 1992 version) TENDICINGHIA (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £236.30
    from £236.30
    # 032
    MPN: 001626949
    SPACER
    (Valid for June 1992 version) DISTANZIALE (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £20.11
    from £20.11
    # 033
    MPN: 008201008
    NUT
    (Valid for June 1992 version) DADO (dalla 12583) (Particolari utilizzabili in assieme anche sulle vetture precedentI con aggiunta della vite 008701 022) ved.tav. 16.03.01 rif. 13
    from £0.57
    from £0.57
