lamborghini diablo (1991) water cooling system parts diagram

17.02.00 - Water Cooling System

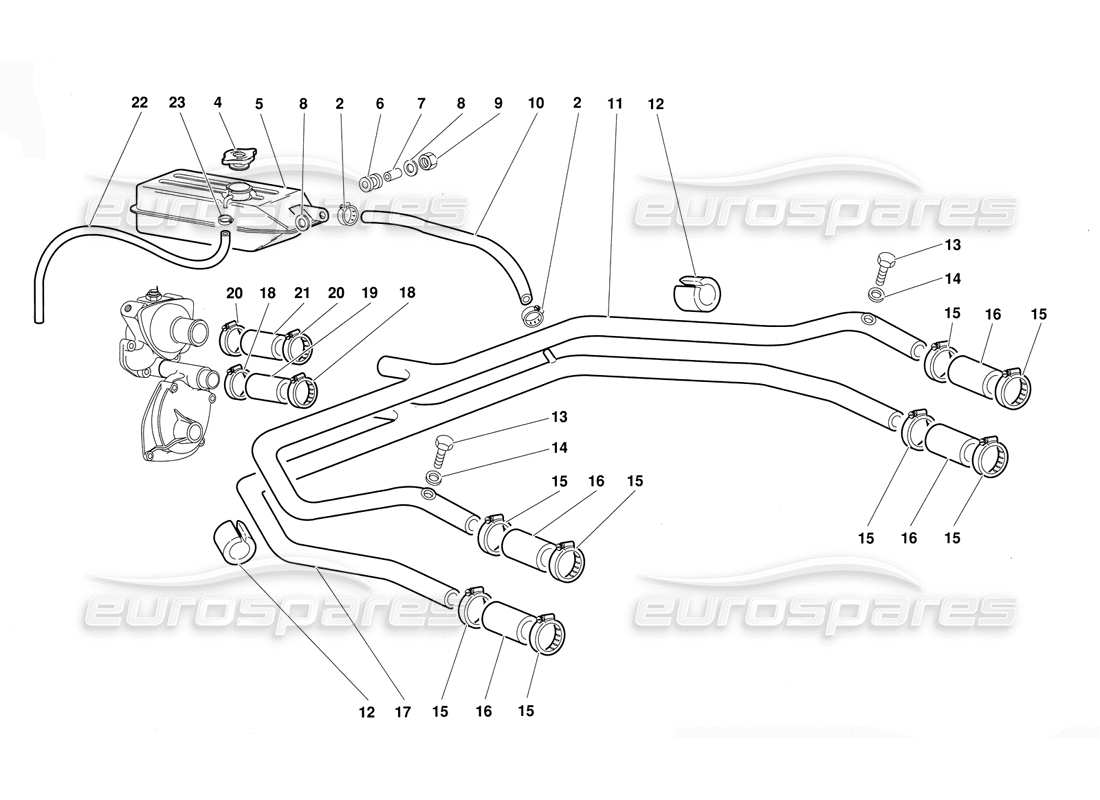

Lamborghini Diablo (1991) Water Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 002
        MPN: 008832003
        STRAP
        FASCETTA
        from £27.78
        from £27.78
        FASC.19-28 H.12 Genuine Lamborghini - New In stock
        # 004
        MPN: 001704296
        TANK CAP 1,0 BAR
        from £87.32
        from £87.32
        MIURA COOLANT RESERVOIR PLUG Genuine Lamborghini - New In stock
        # 005
        MPN: 001731297
        RESERVOIR
        SERBATOIO
        from £721.11
        from £721.11
        COOLANT CIRCUIT SUPPLEMENTARY RESERVOIR Genuine Lamborghini - New (to order)
        # 006
        MPN: 008610903
        RUBBER BUSHING
        BOCCOLA COMMA
        from £9.91
        from £9.91
        GROMMET MM 9X12.8X2.5 MM Genuine Lamborghini - New (to order)
        # 007
        MPN: 008800602
        BUSHING
        BOCCOLA
        from £20.28
        from £20.28
        BUSHING 6X8X10 MM Genuine Lamborghini - New (to order)
        # 008
        MPN: WHT002961
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        This part replaces part number 008400607
        WASHER Genuine Lamborghini - New In stock
        # 009
        MPN: N02214812
        NUT
        DADO
        from £1.10
        from £1.10
        This part replaces part number 008200612
        HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
        hex. nut, self-locking - M6 (N 02214812) Genuine Porsche Part - New In stock
        # 010
        MPN: 001731848
        PIPE
        Tubo
        from £77.22
        from £77.22
        NOURICE/PIPE Genuine Lamborghini - New (to order)
        # 011
        MPN: 001730568
        PIPE
        Tubo
        from £542.66
        from £542.66
        THERMOSTAT VALVE/RADIATOR PIPE Genuine Lamborghini - New (to order)
        THERMOSTAT VALVE/RADIATOR PIPE Genuine Lamborghini - Used In stock
        # 012
        MPN: 07L121199
        PIPE
        TUBO PROTEZIONE
        from £12.11
        from £12.11
        This part replaces part number 001732057
        SLEEVE Genuine Lamborghini - New (to order)
        # 013
        MPN: 008100620
        BOLT
        VITE
        from £3.65
        from £3.65
        SCREW M6X12 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
        # 014
        MPN: WHT003041
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        This part replaces part number 008400609 - and 1 more. Click to view details
        SOFT COPPER WASHER 6.4X12X1.5 Genuine Lamborghini - New In stock
        # 015
        MPN: 008833001
        STRAP
        FASCETTA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 016
        MPN: 07M121074
        PIPE
        from £24.21
        from £24.21
        RADIATOR/COOLANT PIPE SLEEVE Genuine Lamborghini - New In stock
        # 017
        MPN: 001730569
        PIPE
        Tubo
        from £589.50
        from £589.50
        RADIATOR COOLANT OUTLET/COOLAN T PUMP PI Genuine Lamborghini - New (to order)
        # 018
        MPN: 008834501
        STRAP
        FASCETTA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 019
        MPN: 07M121057
        PIPE
        from £59.93
        from £59.93
        RADIATOR COOLANT OUTLET/COOLAN T PUMP CA Genuine Lamborghini - New In stock
        # 020
        MPN: 008833802
        STRAP
        FASCETTA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 021
        MPN: 001730573
        PIPE
        Tubo
        from £87.48
        from £87.48
        THERMOSTAT VALVE/ER PIPE Genuine Lamborghini - New (to order)
        # 022
        MPN: 001731993
        PIPE
        Tubo
        from £8.42
        from £8.42
        NOURICE COOLANT DRAIN PIPE Genuine Lamborghini - New (to order)
        # 023
        MPN: 001731994
        STRAP
        FASCETTA
        from £6.35
        from £6.35
        CLAMP Genuine Lamborghini - New (to order)
