lamborghini diablo (1991) crankcase and lower mounting (valid for june 1992 version) parts diagram

18.02.01 - Crankcase and Lower Mounting (Valid for June 1992 Version)

Lamborghini Diablo (1991) Crankcase and Lower Mounting (Valid for June 1992 Version) Parts Diagram

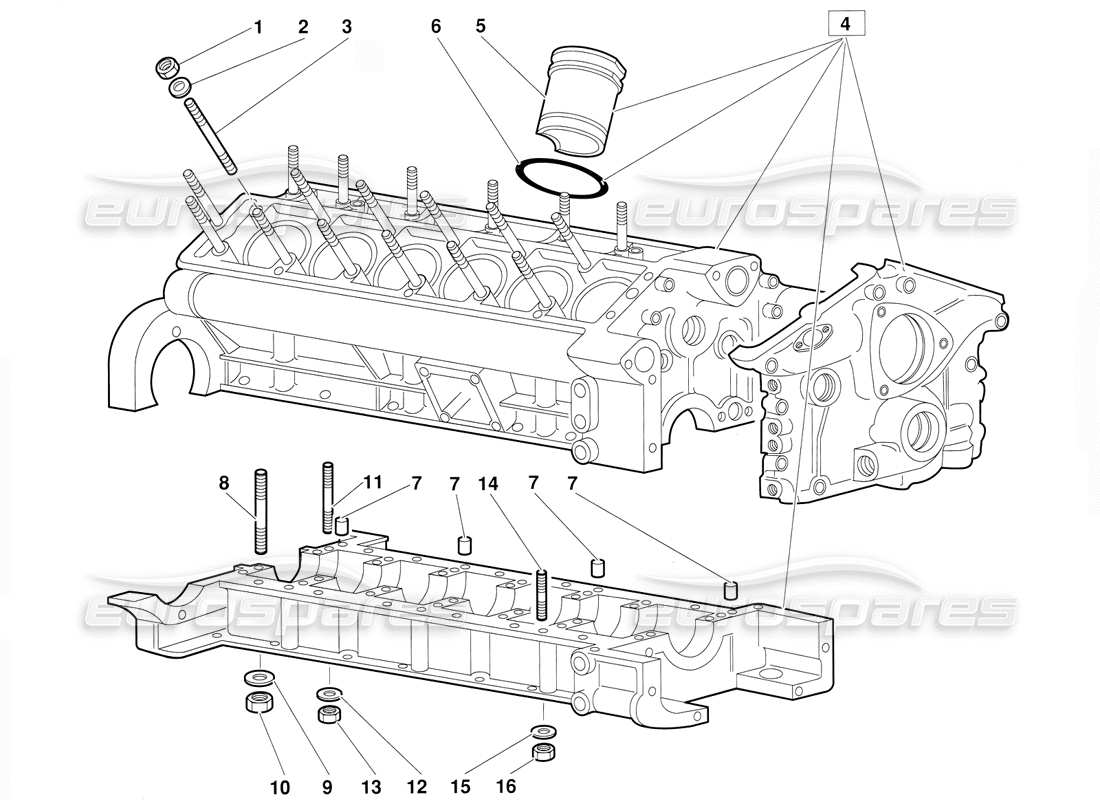

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 000
      MPN: 001532101
      GASKET SET
      from £1,118.65
      from £1,118.65

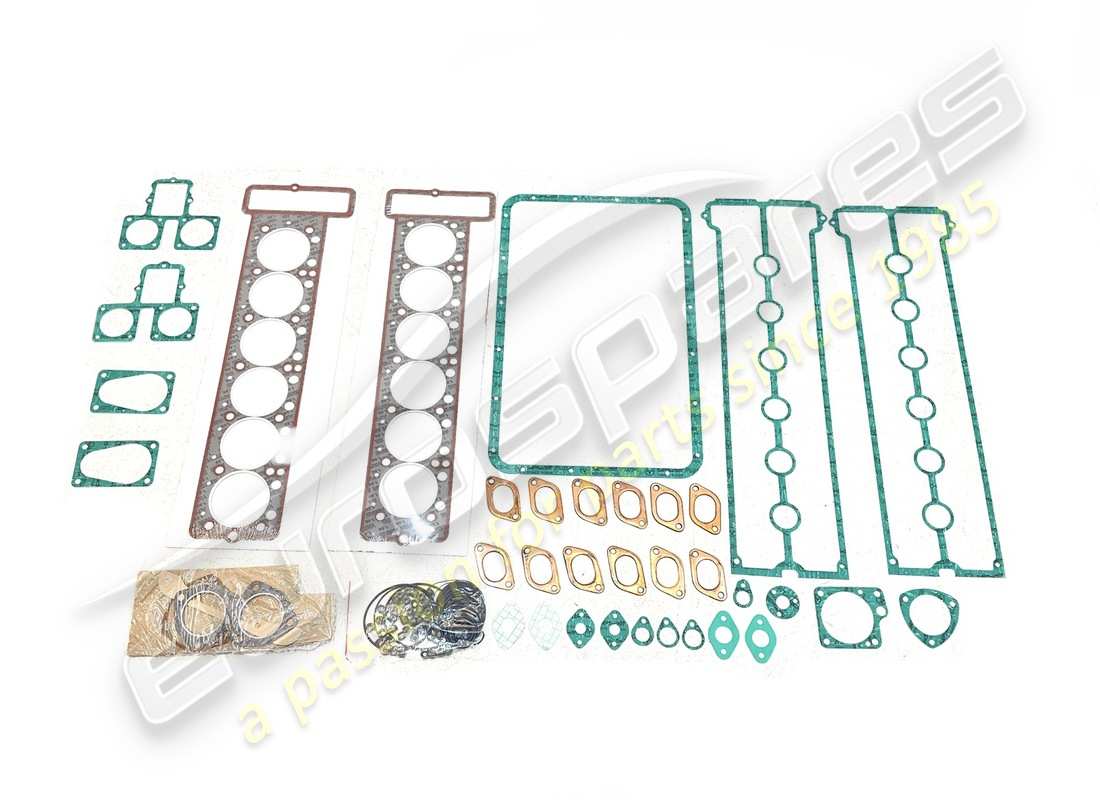

      DIABLO GASKET KIT (001532101) Eurospares Approved Part - New In stock
      DIABLO GASKET KIT Genuine Lamborghini - New (to order)
      # 001
      MPN: 001120924
      NUT
      (Valid for June 1992 version) DADO
      from £22.93
      from £22.93
      STUD NUT Genuine Lamborghini - New (to order)
      # 002
      MPN: 008401230
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £32.72
      from £32.72
      WASHER Genuine Lamborghini - New In stock
      # 003
      MPN: 001824761
      HEADS STUD
      (Valid for June 1992 version) PRIGIONIERO TESTE
      from £64.60
      from £64.60
      CYLINDER HEAD STUD ON CRANKCAS E. Genuine Lamborghini - New In stock
      # 004
      MPN: 403400100
      crankcase
      (Valid for June 1992 version) BASAMENTO COMPLETO Dl CANNE, COPERCHIO DISTRIB. E SOTTOCOPPA (Per esigenze di lavorazione e stato aggiunto a questo assieme il coperchio distribuzione)
      from £12,969.64
      from £12,969.64
      Lamborghini PART 403400100 Genuine Lamborghini - New (to order)
      # 005
      MPN: 001829442
      CYLINDER
      (Valid for June 1992 version) CILINDRO
      from £297.66
      from £297.66
      CYLINDER LINER Genuine Lamborghini - New In stock
      # 006
      MPN: WHT003085
      SEAL
      (Valid for June 1992 version) ANELLO TENUTA
      from £2.68
      from £2.68
      CYLINDER LINER RUBBER WASHER M M 78X1 Genuine Lamborghini - New (to order)
      # 007
      MPN: 008851105
      DOWEL
      (Valid for June 1992 version) GRANO
      Lamborghini PART 008851105 Genuine Lamborghini - New (to order)
      # 008
      MPN: 008301238
      STUD D = 12 MM
      (Valid for June 1992 version) PRIGIONIEROD= 12 MM
      from £10.57
      from £10.57
      SPECIAL STUD M12X110 Genuine Lamborghini - New (to order)
      # 009
      MPN: 008401227
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £9.64
      from £9.64
      FLAT WASHER 12.5X26X3 Genuine Lamborghini - New (to order)
      # 010
      MPN: 008201221
      NUT
      (Valid for June 1992 version) DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 011
      MPN: 008300886
      STUD D = 8 MM
      (Valid for June 1992 version) PRIGIONIEROD = 8MM
      from £27.99
      from £27.99
      ZINC SPECIAL STUD 8X105 Genuine Lamborghini - New (to order)
      # 012
      MPN: 008400820
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £10.30
      from £10.30
      WASHER 8.5X18X3.5 Genuine Lamborghini - New (to order)
      # 013
      MPN: 008200805
      NUT
      from £0.49
      from £0.49
      M8X1X8 8G/B NUT Genuine Lamborghini - New In stock
      # 014
      MPN: 008100871
      SCREW L = 95 MM
      (Valid for June 1992 version) VITE L= 95 MM
      from £2.61
      from £2.61
      SCREW M8X95 UNI 5737/8G ZD Genuine Lamborghini - New (to order)
      # 014
      MPN: 008300808
      STUD L = 35 MM
      use : WHT003027
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 014
      MPN: 008300884
      STUD L = 95 MM
      (Valid for June 1992 version) PRIGIONIEROL=95MM
      from £20.98
      from £20.98
      SPECIAL STUD M8X95 Genuine Lamborghini - New (to order)
      # 014
      MPN: WHT003028
      STUD L = 25 MM
      (Valid for June 1992 version) PRIGIONIEROL=25MM
      from £12.54
      from £12.54
      TAP END STUD Genuine Lamborghini - New In stock
      # 015
      MPN: 008410815
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £0.49
      from £0.49
      WASHER 8.4X15X0.5 DIN137/B C70 Genuine Lamborghini - New (to order)
      # 016
      MPN: N01100845
      NUT
      (Valid for June 1992 version) DADO
      from £1.18
      from £1.18
      This part replaces part number 008200801 - and 2 more. Click to view details
      HEX.NUT Genuine Lamborghini - New In stock
      HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
