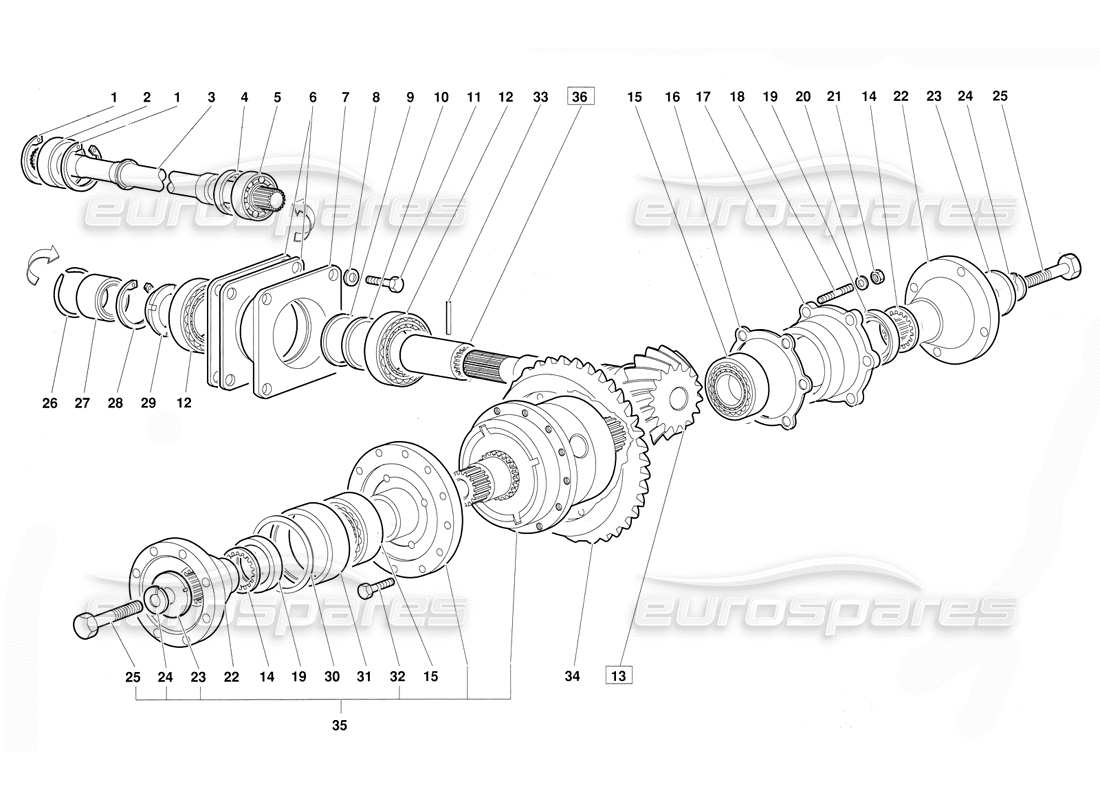

23.01.01 - Differential (Valid for June 1992 Version)

Lamborghini Diablo (1991) Differential (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008575501
    RETAINER RING
    (Valid for June 1992 version) ANELLO RITEGNO
    from £0.90
    from £0.90
    SEEGER I 55 UNI 3654 Genuine Lamborghini - New In stock
    # 002
    MPN: 410103520
    BEARING
    (Valid for June 1992 version) CUSCINETTO
    from £42.29
    from £42.29
    This part replaces part number 008503013
    BEARING Genuine Lamborghini - New (to order)
    # 003
    MPN: 002331406
    SHAFT
    (Valid for June 1992 version) ALBERO DI TRASMISSIONE
    from £1,854.67
    from £1,854.67
    REAR DIFFERENTIAL PROPELLER SH AFT Genuine Lamborghini - New (to order)
    # 004
    MPN: 008613508
    SEAL
    (Valid for June 1992 version) ANELLO TENUTA
    from £73.64
    from £73.64
    SPACER Genuine Lamborghini - New In stock
    # 005
    MPN: 008503010
    BEARING
    (Valid for June 1992 version) CUSCINETTO
    from £13.72
    from £13.72
    BEARING Genuine Lamborghini - New (to order)
    # 006
    MPN: 002324939
    SHIM
    (Valid for June 1992 version)SPESSORE DI REGISTRO
    from £25.17
    from £25.17
    SPACER Genuine Lamborghini - New (to order)
    # 007
    MPN: 002324938
    FLANGE
    (Valid for June 1992 version) FLANGIA PORTACUSCINETTI
    from £453.94
    from £453.94
    SLEEVE Genuine Lamborghini - New (to order)
    # 008
    MPN: 008410815
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.53
    from £0.53
    WASHER 8.4X15X0.5 DIN137/B C70 Genuine Lamborghini - New (to order)
    # 009
    MPN: 002330693
    SHIM 0.5 MM
    (Valid for June 1992 version) SPESSORE DI REGISTRO 0.5 MM
    from £15.47
    from £15.47
    REAR DIFFERENTIAL ADJUSTMENT S HIM 0.3 M Genuine Lamborghini - New (to order)
    # 009
    MPN: 002330694
    SHIM 0.3 MM
    (Valid for June 1992 version) SPESSORE DI REGISTRO 0.3 MM
    from £23.00
    from £23.00
    REAR DIFFERENTIAL ADJUSTMENT S HIM 0.3 M Genuine Lamborghini - New (to order)
    # 009
    MPN: 002330695
    SHIM 0.25 MM
    (Valid for June 1992 version) SPESSORE DI REGISTRO 0.25 MM
    from £23.00
    from £23.00
    REAR DIFFERENTIAL ADJUSTMENT S HIM 0.25 Genuine Lamborghini - New (to order)
    # 009
    MPN: 002330696
    SHIM 0.2 MM
    (Valid for June 1992 version) SPESSORE DI REGISTRO 0.2 MM
    from £23.00
    from £23.00
    REAR DIFFERENTIAL ADJUSTMENT S HIM 0.2 M Genuine Lamborghini - New (to order)
    # 009
    MPN: 002330697
    SHIM0.15 MM
    (Valid for June 1992 version) SPESSORE DI REGISTRO 0.15 MM
    from £15.47
    from £15.47
    ORDER 5000 PARTS IN TOTAL, WIT H OTHER S Genuine Lamborghini - New (to order)
    # 010
    MPN: 002328764
    SPACER
    (Valid for June 1992 version) DISTANZIALE
    from £39.14
    from £39.14
    SHIM Genuine Lamborghini - New (to order)
    # 011
    MPN: 008100803
    SCREW
    (Valid for June 1992 version) VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 012
    MPN: 008545004
    BEARING
    (Valid for June 1992 version) CUSCINETTO
    from £87.32
    from £87.32
    BEARING Genuine Lamborghini - New (to order)
    # 013
    MPN: 002326586
    PINION
    (Valid for June 1992 version) PIGNONE CON GIUNZIONE (fino 12727)
    Lamborghini PART 002326586 Genuine Lamborghini - New (to order)
    # 013
    MPN: 002333371
    PINION
    (Valid for June 1992 version) PIGNONE (dalla 12728 intercambiabile) (Per esigenze di lavorazione questo particolare e fornito assieme alia corona 002324937)
    Lamborghini PART 002333371 Genuine Lamborghini - New (to order)
    # 014
    MPN: 002325117
    THRUST PLATE
    (Valid for June 1992 version) RALLA
    from £52.23
    from £52.23
    FIFTH WHEEL Genuine Lamborghini - New (to order)
    # 015
    MPN: 008545002
    BEARING
    (Valid for June 1992 version) CUSCINETTO
    from £289.36
    from £289.36
    TAPER ROLLER BEARING50X88X22 Genuine Lamborghini - New (to order)
    # 016
    MPN: 002324942
    SHIM
    (Valid for June 1992 version) SPESSORE DI REGISTRO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 017
    MPN: 002324452
    FLANGE
    (Valid for June 1992 version) FLANGIA PORTA CUSCINETTO
    from £160.02
    from £160.02
    FLANGE Genuine Lamborghini - New (to order)
    # 018
    MPN: 008301032
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £6.64
    from £6.64
    see 008301022 Genuine Lamborghini - New (to order)
    # 019
    MPN: 008614507
    SEAL
    (Valid for June 1992 version) ANELLO TENUTA
    from £31.31
    from £31.31
    This part replaces part number 008614509
    OIL SEAL 45X65X8 MM Genuine Lamborghini - New In stock
    # 020
    MPN: WHT000768
    WASHER
    from £1.24
    from £1.24
    This part replaces part number 008410806 - and 1 more. Click to view details
    SPRING WASHER Genuine Lamborghini - New In stock
    # 021
    MPN: N10155210
    NUT
    (Valid for June 1992 version) DADO
    from £1.28
    from £1.28
    This part replaces part number 008201001
    HEX.NUT Genuine Lamborghini - New In stock
    hex. nut - M 10 DIN 934-8 (N 10155210) Genuine Porsche Part - New (to order)
    # 022
    MPN: 002331911
    HUB
    (Valid for June 1992 version) MOZZO PORTA SEMIASSE
    Lamborghini PART 002331911 Genuine Lamborghini - New (to order)
    # 023
    MPN: 002332653
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £69.01
    from £69.01
    WASHER Genuine Lamborghini - New (to order)
    # 024
    MPN: 002332652
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £6.10
    from £6.10
    WASHER Genuine Lamborghini - New (to order)
    # 025
    MPN: 002332651
    SCREW
    (Valid for June 1992 version) VITE
    from £14.09
    from £14.09
    SCREW Genuine Lamborghini - New (to order)
    # 026
    MPN: 008583502
    RETAINER RING
    (Valid for June 1992 version) ANELLO RITEGNO
    from £2.24
    from £2.24
    CIRCLIP Genuine Lamborghini - New In stock
    # 027
    MPN: 008523514
    BEARING
    (Valid for June 1992 version) CUSCINETTO A RULLINI
    from £38.27
    from £38.27
    BEARING Genuine Lamborghini - New (to order)
    # 028
    MPN: 008575000
    RETAINER RING
    (Valid for June 1992 version) ANELLO RITEGNO
    from £0.57
    from £0.57
    O-RING I 50 UNI 3654 Genuine Lamborghini - New (to order)
    # 029
    MPN: 008254503
    PLUG
    (Valid for June 1992 version) GHIERA
    from £109.38
    from £109.38
    M45X1.5 SPECIAL RINGNUT Genuine Lamborghini - New (to order)
    # 030
    MPN: 002331917
    SHIM
    (Valid for June 1992 version) SPESSORE DI REGISTRO
    from £16.14
    from £16.14
    SPACER Genuine Lamborghini - New (to order)
    # 030
    MPN: 002331918
    SHIM
    (Valid for June 1992 version) SPESSORE DI REGISTRO
    from £15.47
    from £15.47
    SPACER Genuine Lamborghini - New (to order)
    # 030
    MPN: 002331919
    SHIM
    (Valid for June 1992 version) SPESSORE Dl REGISTRO
    from £15.47
    from £15.47
    SPACER Genuine Lamborghini - New (to order)
    # 030
    MPN: 002331920
    SHIM
    (Valid for June 1992 version) SPESSORE Dl REGISTRO
    from £15.47
    from £15.47
    SPACER Genuine Lamborghini - New (to order)
    # 030
    MPN: 002331921
    SHIM
    (Valid for June 1992 version) SPESSORE Dl REGISTRO
    from £15.47
    from £15.47
    SPACER Genuine Lamborghini - New (to order)
    # 031
    MPN: 002324940
    BEARING CASE
    (Valid for June 1992 version) ANELLO PORTACUSCINETTO
    from £150.88
    from £150.88
    BUSHING Genuine Lamborghini - New (to order)
    # 032
    MPN: 002332650
    SCREW
    (Valid for June 1992 version) VITE
    from £17.17
    from £17.17
    SCREW Genuine Lamborghini - New (to order)
    # 033
    MPN: 008900503
    PIN
    (Valid for June 1992 version) SPINA
    from £0.73
    from £0.73
    ELASTIC PIN 5X36 DIN1481 Genuine Lamborghini - New In stock
    # 034
    MPN: 002324937
    CROWN
    (Valid for June 1992 version) CORONA (Per esigenze di lavorazione questo particolare e fornito assieme al pignone 002333371)
    from £2,735.04
    from £2,735.04
    CROWN WHEEL & PINION 002334682 Genuine Lamborghini - New (to order)
    CROWN WHEEL & PINION 002334682 (002324937) Original Equipment - New (to order)
    # 035
    MPN: 002332210
    KIT DIFFERENTIAL
    (Valid for June 1992 version) COMPLESSIVO DIFFERENZIALE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 036
    MPN: 002324935
    RIGID SLEEVE
    (Valid for June 1992 version) GIUNZIONE (particolare fornito ora singolarmente)
    from £217.02
    from £217.02
    PROPELLER SHAFT SLEEVE Genuine Lamborghini - New (to order)
