24.07.00 - Speedometer Sender

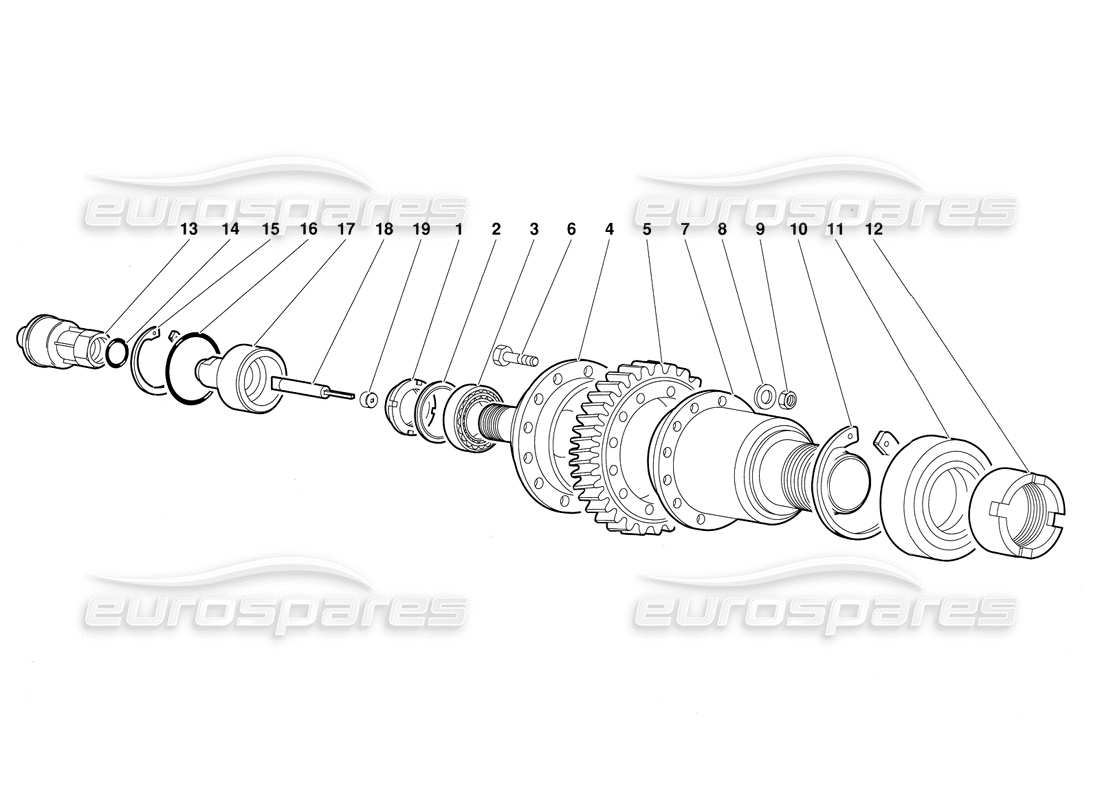

Lamborghini Diablo (1991) Speedometer Sender Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008252502
PLUG
GHIERA
from £99.91
from £99.91
# 002
MPN: 002429290
SHIM
SPESSORE
from £50.01
from £50.01
# 003
MPN: 008522500
BEARING
CUSCINETTO
from £92.64
from £92.64
# 004
MPN: 002429786
FLANGE
FLANGIA
from £543.87
from £543.87
# 005
MPN: 002429789
GEAR
INGRANAGGIO
from £792.64
from £792.64
# 006
MPN: 008100873
SCREW
VITE
from £1.76
from £1.76
# 007
MPN: 002429787
FLANGE
FLANGIA
from £205.20
from £205.20
# 008
MPN: 008410817
WASHER
RONDELLA
Supersession
Supersession
# 009
MPN: 008200806
NUT
DADO
Supersession
Supersession
# 010
MPN: 008578001
RETAINER RING
ANELLO RITEGNO
from £3.72
from £3.72
# 011
MPN: 008514001
BEARING
CUSCINETTO
from £92.03
from £92.03
# 012
MPN: 008254004
PLUG
GHIERA
from £88.72
from £88.72
# 013
MPN: 0R1320001
SPEEDOMETER - KM
RINVIO CONTACHILOMETW
from £530.90
from £530.90
# 014
MPN: 008601801
SEAL
ANELLO TENUTA
from £7.01
from £7.01
# 015
MPN: 008575201
RETAINER RING
ANELLO RITEGNO
from £0.79
from £0.79
# 016
MPN: 008605201
SEAL
ANELLO TENUTA
from £3.03
from £3.03
# 017
MPN: 002426585
SUPPORT
SUPPORTO RINVIO
from £203.63
from £203.63
# 018
MPN: 002426583
SMALL SHAFT
ALBERINO
from £82.67
from £82.67
# 019
MPN: 002426901
TERMINAL
TERMINALS
from £10.57
from £10.57
