41.01.00 - Frame Elements

Lamborghini Diablo (1991) Frame Elements Parts Diagram

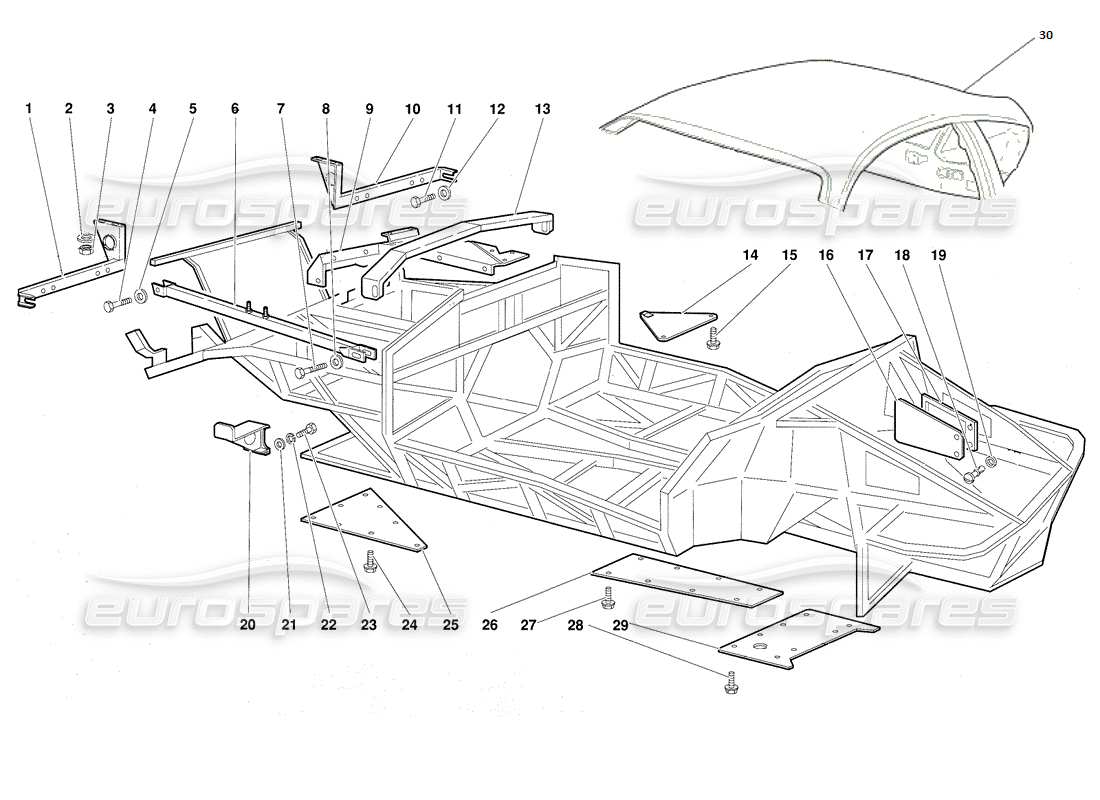

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 000
    MPN: 004131090
    FRONT SUBFRAME
    FRONT SUBFRAME Genuine Lamborghini - New (to order)
    # 001
    MPN: 004130080
    SUPPORT
    SUPPORTO FANALE DESTRO
    SUPPORT Genuine Lamborghini - New (to order)
    # 002
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 003
    MPN: N02214812
    NUT
    DADO
    from £1.10
    from £1.10
    This part replaces part number 008200612
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    hex. nut, self-locking - M6 (N 02214812) Genuine Porsche Part - New In stock
    # 004
    MPN: 008100854
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 005
    MPN: 008410819
    WASHER
    RONDELLA
    from £1.50
    from £1.50
    SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
    SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
    WASHER
    # 006
    MPN: 004131415
    ARM
    BRACCIO SINISTRO
    from £83.00
    from £83.00
    REAR CHASSIS MOBILE CROSSMEMBE R Genuine Lamborghini - New (to order)
    REAR CHASSIS MOBILE CROSSMEMBE R Genuine Lamborghini - Used In stock
    # 006
    MPN: 004131845
    ARM
    BRACCIO DESTRO
    from £201.64
    from £201.64
    RH REAR MOBILE CROSSMEMBER Genuine Lamborghini - New (to order)
    RH REAR MOBILE CROSSMEMBER Genuine Lamborghini - Used In stock
    # 007
    MPN: 008700846
    SCREW
    VITE
    from £1.37
    from £1.37
    SCREW M8X22 Genuine Lamborghini - New (to order)
    # 008
    MPN: 008410819
    WASHER
    RONDELLA
    from £1.50
    from £1.50
    SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
    SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
    WASHER
    # 009
    MPN: 009411503
    PLATE
    PIASTRA FILTRO ARIA DESTRO
    from £237.20
    from £237.20
    AIR CLEANER BRACKET PLATE Genuine Lamborghini - New (to order)
    # 009
    MPN: 009411507
    PLATE
    PIASTRA FILTRO ARIA SINISTRO
    from £110.69
    from £110.69
    AIR CLEANER BRACKET PLATE Genuine Lamborghini - New (to order)
    # 010
    MPN: 004130079
    SUPPORT
    SUPPORTO FANALE SINISTRO
    SUPPORT Genuine Lamborghini - New (to order)
    # 011
    MPN: 008700663
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW M6 Genuine Lamborghini - New (to order)
    # 012
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 013
    MPN: 004131512
    CROSSRAIL
    TRAVERSA
    from £210.00
    from £210.00
    ENGINE MOBILE CROSSMEMBER Genuine Lamborghini - New (to order)
    ENGINE MOBILE CROSSMEMBER Genuine Lamborghini - Used In stock
    # 014
    MPN: 004131098
    PANEL
    PANNELLO ISPEZIONE FILTRO OLIO
    from £119.82
    from £119.82
    OIL FILTER INSPECTION FLAP Genuine Lamborghini - New (to order)
    # 015
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
    bolt, hex. hd. with shoulder (N 10718801) Genuine Porsche Part - New In stock
    # 016
    MPN: 004130206
    PANEL
    PANNELLO ISPEZIONE ALZAFARI DX
    from £55.34
    from £55.34
    INSPECTION DOOR ON UPPER SIDE PANEL RH S Genuine Lamborghini - New (to order)
    # 016
    MPN: 004130207
    PANEL
    PANNELLO ISPEZIONE ALZAFARI SX
    from £55.34
    from £55.34
    INSPECTION DOOR ON UPPER SIDE PANEL LH S Genuine Lamborghini - New (to order)
    # 017
    MPN: 009490205
    GASKET
    GUARNIZIONE SINISTRA
    LH GASKET Genuine Lamborghini - New (to order)
    # 017
    MPN: 410805349
    GASKET
    GUARNIZIONE DESTRA
    from £13.84
    from £13.84
    RH HEADLIGHT INSPECTION FLAP S EAL Genuine Lamborghini - New (to order)
    # 018
    MPN: 004131085
    PIN
    PERNO AGGANCIO RAPIDO.
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 019
    MPN: 007014263
    WASHER
    RONDELLA IN GOMMA
    Lamborghini PART 007014263 Genuine Lamborghini - New (to order)
    # 020
    MPN: 004130092
    SUPPORT
    SUPPORTO SERBATOIO BENZINA
    from £107.79
    from £107.79
    FUEL TANK REAR MOUNT Genuine Lamborghini - New (to order)
    # 021
    MPN: N90179103
    WASHER
    RONDELLA
    from £1.04
    from £1.04
    This part replaces part number 008400801
    WASHER Genuine Lamborghini - New In stock
    # 022
    MPN: 008410819
    WASHER
    RONDELLA
    from £1.50
    from £1.50
    SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
    SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
    WASHER
    # 023
    MPN: 008100812
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW 8X1.25X16 UNI 5739/8 Genuine Lamborghini - New (to order)
    # 024
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
    bolt, hex. hd. with shoulder (N 10718801) Genuine Porsche Part - New In stock
    # 025
    MPN: 004131316
    PANEL
    PANNELLO ISPEZIONE FILTRI BENZINA
    from £249.02
    from £249.02
    LOWER CHASSIS SHEET TANK AREA Genuine Lamborghini - New (to order)
    # 026
    MPN: 004130445
    PANEL
    PANNELLO
    from £194.13
    from £194.13
    TUNNEL FRONT CHASSISBOTTOM Genuine Lamborghini - New (to order)
    # 027
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
    bolt, hex. hd. with shoulder (N 10718801) Genuine Porsche Part - New In stock
    # 028
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
    bolt, hex. hd. with shoulder (N 10718801) Genuine Porsche Part - New In stock
    # 030
    MPN: 004131089
    COMPLETE ROOF
    from £4,083.20
    from £4,083.20
    COMPLETE ROOF Genuine Lamborghini - New (to order)
    COMPLETE ROOF Genuine Lamborghini - Used In stock
    # 030
    MPN: 004131089/B

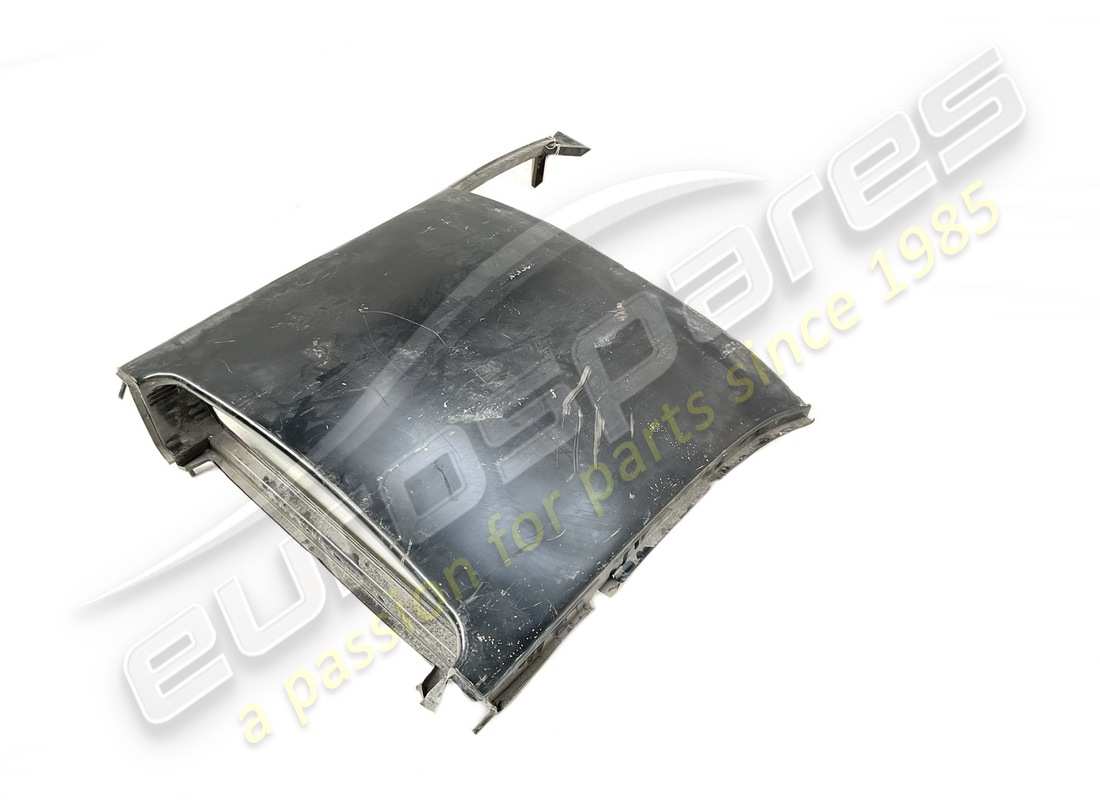

    ROOF SKIN
    SKIN ONLY
    ROOF SKIN Genuine Lamborghini - New (to order)
