lamborghini diablo (1991) pedals (valid for june 1992 version) parts diagram

42.01.01 - Pedals (Valid for June 1992 Version)

Lamborghini Diablo (1991) Pedals (Valid for June 1992 Version) Parts Diagram

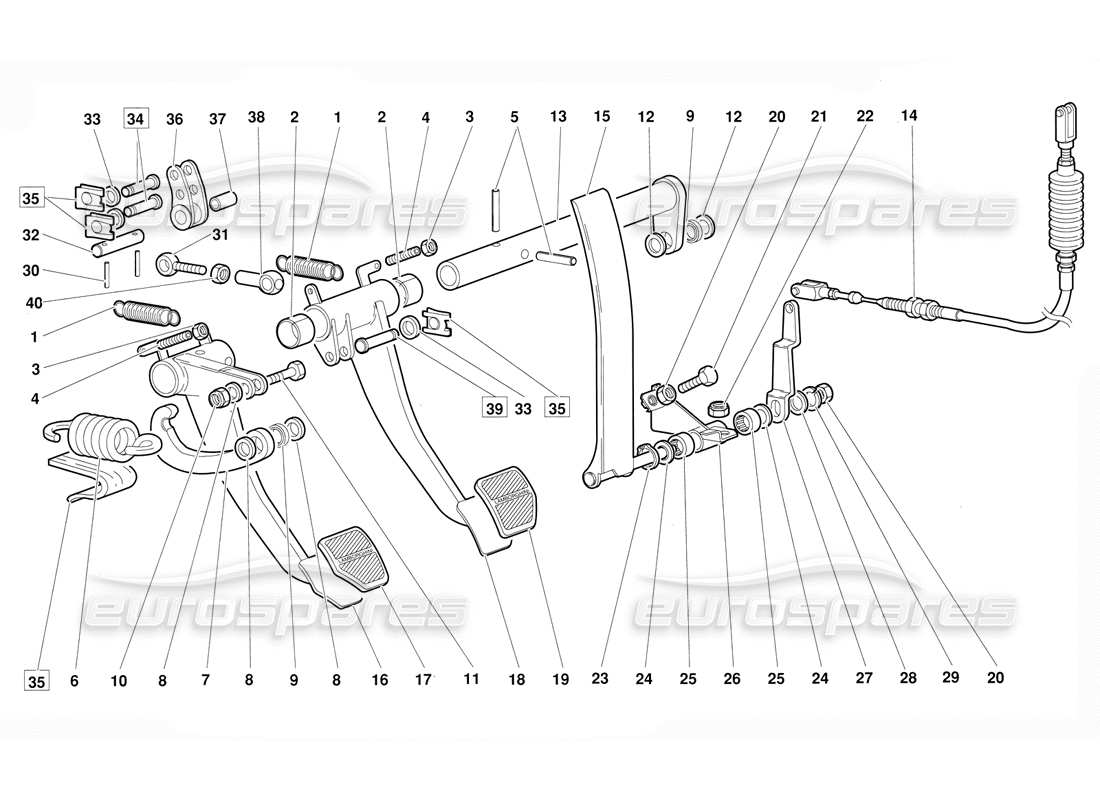

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001321270
SPRING
(Valid for June 1992 version) MOLLA
from £5.27
from £5.27
# 002
MPN: 008802501
BUSHING
(Valid for June 1992 version) BOCCOLA
Supersession
Supersession
# 003
MPN: N01100637
NUT
(Valid for June 1992 version) DADO
from £0.53
from £0.53
This part replaces part number 008200604
# 004
MPN: 004210834
ADJUSTING SLEEVE
(Valid for June 1992 version) REGISTRO
from £2.83
from £2.83
# 005
MPN: 008900803
PIN
(Valid for June 1992 version) SPINA
from £0.68
from £0.68
# 006
MPN: 004227889
SPRING
(Valid for June 1992 version) MOLLA
from £47.43
from £47.43
# 007
MPN: 004225066
ROCKER
(Valid for June 1992 version) BILANCIERE
# 008
MPN: 008400816
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 009
MPN: 004225225
COUPLING
(Valid for June 1992 version) TESTA A SNODO
Supersession
Supersession
# 010
MPN: 008200809
NUT
(Valid for June 1992 version) DADO
Supersession
Supersession
# 011
MPN: 008100841
SCREW
(Valid for June 1992 version) VITE
Supersession
Supersession
# 012
MPN: 008400819
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 013
MPN: 004225064
SHAFT
(Valid for June 1992 version) ALBERO CON LEVA
# 014
MPN: 004230089
GAS CABLE
(Valid for June 1992 version) CAVO ACCELERATORE
from £722.16
from £722.16
# 015
MPN: 004230143
GAS PEDAL
(Valid for June 1992 version) PEDALE ACCELERATORE
from £344.09
from £344.09
# 016
MPN: 004231965
CLUTCH PEDAL
(Valid for June 1992 version) PEDALE FRIZIONE
from £204.50
from £204.50
# 017
MPN: 004228349
PEDAL PAD
(Valid for June 1992 version) COPRIPEDALE GOMMA
from £26.55
from £26.55
# 018
MPN: 004230144
BRAKE PEDAL
(Valid for June 1992 version) PEDALE FRENO
from £323.35
from £323.35
# 019
MPN: 004228351
PEDAL PAD
(Valid for June 1992 version) COPRIPEDALE GOMMA
from £41.90
from £41.90
# 020
MPN: 008200801
NUT
(Valid for June 1992 version) DADO
Supersession
Supersession
# 021
MPN: 008100828
SCREW
(Valid for June 1992 version) VITE
from £0.54
from £0.54
# 022
MPN: 008200809
NUT
(Valid for June 1992 version) DADO
Supersession
Supersession
# 023
MPN: 008581101
RETAINER RING
(Valid for June 1992 version) ANELLO RITEGNO
from £3.65
from £3.65
# 024
MPN: 008401220
WASHER
(Valid for June 1992 version) RONDELLA
from £3.74
from £3.74
# 025
MPN: 008521205
ROLLER CAGE
(Valid for June 1992 version) GABBIAARULLI
from £6.93
from £6.93
# 026
MPN: 004231811
SUPPORT
(Valid for June 1992 version) SUPPORTO
from £86.87
from £86.87
# 027
MPN: 004230149
LEVER
(Valid for June 1992 version) LEVA
# 028
MPN: N90179103
WASHER
(Valid for June 1992 version) RONDELLA
from £1.06
from £1.06
This part replaces part number 008400801
# 029
MPN: 008410819
WASHER
(Valid for June 1992 version) RONDELLA
from £1.55
from £1.55
# 030
MPN: 008900305
PIN
(Valid for June 1992 version) SPINA
from £0.53
from £0.53
# 031
MPN: 004225062
TIE ROD
(Valid for June 1992 version) TIRANTE
from £41.21
from £41.21
# 032
MPN: 004225074
PIN
(Valid for June 1992 version) PERNO
# 033
MPN: 008401007
WASHER
(Valid for June 1992 version) RONDELLA
from £0.52
from £0.52
# 034
MPN: 004232621
PIN
(Valid for June 1992 version) PERNO (sostituisce 004225072)
from £23.68
from £23.68
# 035
MPN: 008581004
CLIP
(Valid for June 1992 version) MOLLETTA (sostituisce 008820304)
from £5.85
from £5.85
# 036
MPN: 004225060
ROCKER
(Valid for June 1992 version) BILANCIERE
from £47.35
from £47.35
# 037
MPN: 008801209
BUSHING
(Valid for June 1992 version) BOCCOLA
from £5.97
from £5.97
# 038
MPN: 004225061
COUPLING
(Valid for June 1992 version) TESTA A SNODO
from £42.95
from £42.95
# 039
MPN: 004232622
PIN
(Valid for June 1992 version) PERNO (sostituisce 004225071)
from £16.72
from £16.72
# 040
MPN: N10155210
NUT
(Valid for June 1992 version) DADO
from £1.36
from £1.36
This part replaces part number 008201001
# 041
MPN: 004233379
PROTECTION
(Valid for June 1992 version) RIPARO IN GOMMA (Particolare utilizzabile su tutte le vetture)
from £37.97
from £37.97
