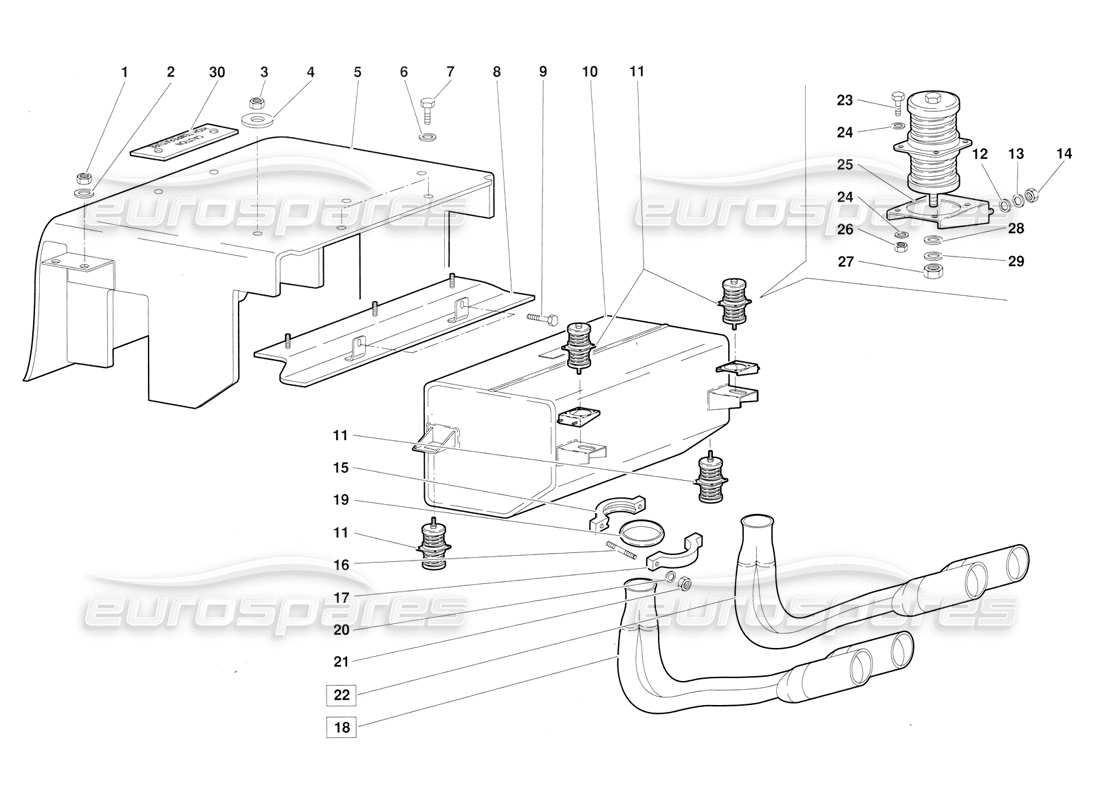

44.03.01 - Exhaust System (Valid for June 1992 Version)

Lamborghini Diablo (1991) Exhaust System (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008200615
    NUT
    (Valid for June 1992 version) DADO
    from £0.53
    from £0.53
    D5006 OTECO SELF-LOCKING NUT Genuine Lamborghini - New (to order)
    # 002
    MPN: 008400620
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.95
    from £0.95
    WASHER 6.5 UNI 1734/5S/B Genuine Lamborghini - New (to order)
    # 003
    MPN: 008200615
    NUT
    (Valid for June 1992 version) DADO
    from £0.53
    from £0.53
    D5006 OTECO SELF-LOCKING NUT Genuine Lamborghini - New (to order)
    # 004
    MPN: 004432213
    WASHER
    (Valid for June 1992 version) RONDELLA IN TEFLON
    from £26.08
    from £26.08
    ENGINE BULKHEAD WASHER Genuine Lamborghini - New (to order)
    # 005
    MPN: 004431533
    SHIELD
    (Valid for June 1992 version) PARATIA ANTICALORE
    Lamborghini PART 004431533 Genuine Lamborghini - New (to order)
    # 006
    MPN: 008100616
    BOLT
    (Valid for June 1992 version) VITE
    from £0.53
    from £0.53
    SCREW M6X16 UNI 5739/5S/Z Genuine Lamborghini - New In stock
    # 007
    MPN: 008400620
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £1.00
    from £1.00
    WASHER 6.5 UNI 1734/5S/B Genuine Lamborghini - New (to order)
    # 008
    MPN: 004432116
    SHIELD
    (Valid for June 1992 version) PARATIA ANTICALORE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 008700506
    SCREW
    (Valid for June 1992 version) VITE
    from £0.53
    from £0.53
    SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
    # 010
    MPN: 004430979
    SILENCER/MUFFLER
    (Valid for June 1992 version) SILENZIATORE
    from £1,522.50
    from £1,522.50
    MUFFLER (ASSEMBLY) Genuine Lamborghini - New (to order)
    MUFFLER (ASSEMBLY) Genuine Lamborghini - Used In stock
    broken / bent studs as pictured
    # 011
    MPN: 400251393A
    EXHAUST SUPPORT MOUNT
    from £151.23
    from £151.23
    This part replaces part number 004432031 - and 5 more. Click to view details
    SUPPORT Genuine Lamborghini - New In stock
    SUPPORT Genuine Lamborghini - Used In stock
    # 012
    MPN: N90179103
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.98
    from £0.98
    This part replaces part number 008400801
    WASHER Genuine Lamborghini - New In stock
    # 013
    MPN: 008410806
    WASHER
    (Valid for June 1992 version) RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 014
    MPN: N01100845
    NUT
    (Valid for June 1992 version) DADO
    from £1.21
    from £1.21
    This part replaces part number 008200801 - and 2 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
    # 015
    MPN: 004425084
    HALF RING
    (Valid for June 1992 version) SEMIANELLO FILETTATO
    from £283.61
    from £283.61
    MANIFOLD TO REAR SILENCER ATTA CHMENT Genuine Lamborghini - New (to order)
    # 016
    MPN: N0444416
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £2.18
    from £2.18
    TAP END STUD Genuine Lamborghini - New In stock
    # 017
    MPN: 004425084
    HALF RING
    (Valid for June 1992 version) SEMIANELLO CON FORI
    from £283.61
    from £283.61
    MANIFOLD TO REAR SILENCER ATTA CHMENT Genuine Lamborghini - New (to order)
    # 018
    MPN: 004431307
    TERMINAL
    (Valid for June 1992 version) TERMINALE SX (fino 12710)
    Lamborghini PART 004431307 Genuine Lamborghini - New (to order)
    # 018
    MPN: 004432725
    TERMINAL
    (Valid for June 1992 version) TERMINALE SX (dalla 12711) (Particolare intercambiabile solamente se accoppiato con la griglia 009430138)
    from £694.06
    from £694.06
    LH EXHAUST TERMINAL Genuine Lamborghini - New In stock
    LH EXHAUST TERMINAL (004432725) Original Equipment - New (to order)
    # 019
    MPN: 004424070
    BL-CONE RING
    (Valid for June 1992 version) ANELLO DOPPIO CONO
    from £93.82
    from £93.82
    EXHAUST PIPE MOUNTING DOUBLE T APER Genuine Lamborghini - New In stock
    # 020
    MPN: 008440806
    WASHER
    use : WHT001185
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 021
    MPN: N02214621
    NUT
    (Valid for June 1992 version) DADO
    from £1.39
    from £1.39
    This part replaces part number N0221468
    PREV.TORQUE TYPE M8 Genuine Lamborghini - New In stock
    # 022
    MPN: 004431308
    TERMINAL
    (Valid for June 1992 version) TERMINALE DX (fino 12710)
    Lamborghini PART 004431308 Genuine Lamborghini - New (to order)
    # 022
    MPN: 004432726
    TERMINAL
    (Valid for June 1992 version) TERMINALE DX (dalla 12711) (Particolare intercambiabile solamente se accoppiato con la griglia 00943013)
    from £694.06
    from £694.06
    RH EXHAUST TERMINAL Genuine Lamborghini - New In stock
    RH EXHAUST TERMINAL (004432726) Original Equipment - New (to order)
    # 023
    MPN: 008100502
    SCREW
    (Valid for June 1992 version) VITE
    from £0.51
    from £0.51
    SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
    # 024
    MPN: WHT001187
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.50
    from £0.50
    This part replaces part number 008400502
    WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
    # 025
    MPN: 004431081
    SUPPORT
    (Valid for June 1992 version) SUPPORTO
    from £92.09
    from £92.09
    RH/LH REAR MUFFLER BRACKET Genuine Lamborghini - New (to order)
    # 026
    MPN: N0211963
    NUT
    (Valid for June 1992 version) DADO
    from £0.48
    from £0.48
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
    # 027
    MPN: N10155210
    NUT
    (Valid for June 1992 version) DADO
    from £1.25
    from £1.25
    This part replaces part number 008201001
    HEX.NUT Genuine Lamborghini - New In stock
    hex. nut - M 10 DIN 934-8 (N 10155210) Genuine Porsche Part - New (to order)
    # 028
    MPN: 008401006
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.53
    from £0.53
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
    # 029
    MPN: 008451005
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.50
    from £0.50
    WASHER 1751 10.5X17.5X2.2 Genuine Lamborghini - New (to order)
    WASHER 1751 10.5X17.5X2.2 Genuine Lamborghini - New (other) In stock
    RONDELLA
    # 030
    MPN: 009466105
    PLATE
    (Valid for June 1992 version) TARGHETTA CAUTION HIGH TEMP
    from £26.66
    from £26.66
    CAUTION HIGH TEMPERATURE PLATE Genuine Lamborghini - New (to order)
