51.02.01 - Front Suspension (Valid for June 1992 Version)

Lamborghini Diablo (1991) Front Suspension (Valid for June 1992 Version) Parts Diagram

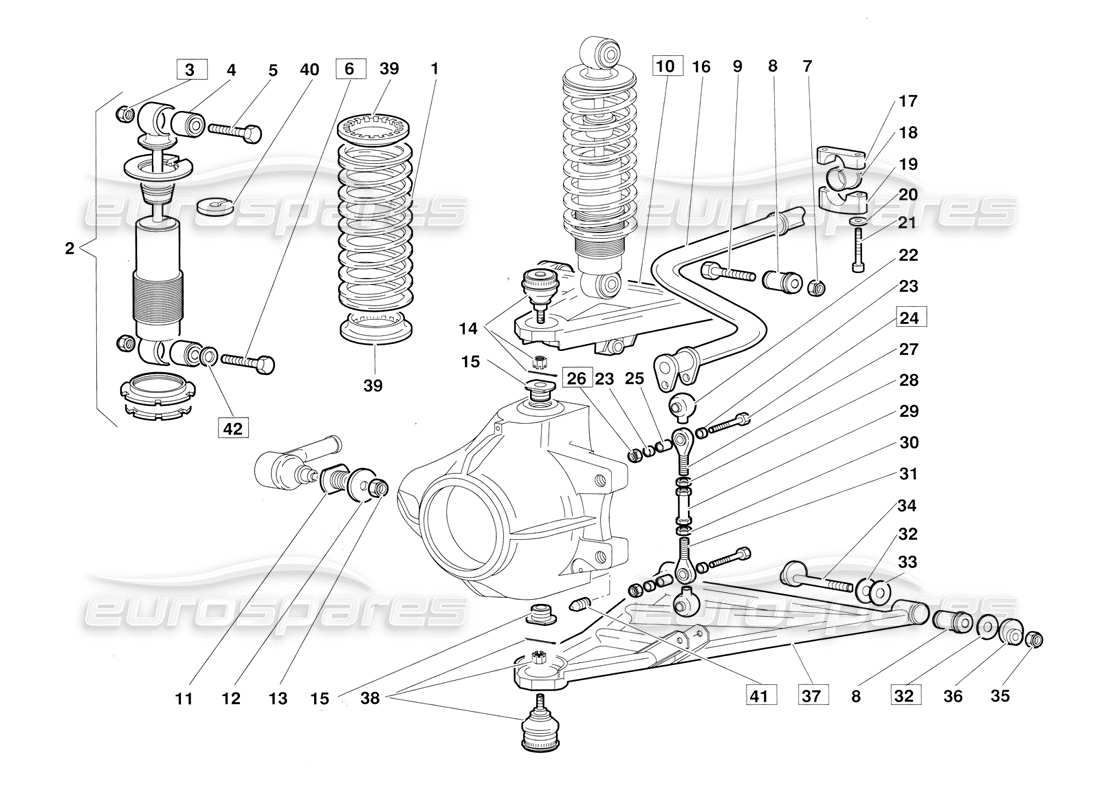

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 005126155
        SPRING
        (Valid for June 1992 version) MOLLA AMMORTIZZATORE ANTERIORE
        from £267.81
        from £267.81
        FRONT SUSPENSION SPRING Genuine Lamborghini - New (to order)
        # 002
        MPN: 005129802
        SHOCK ABSORBER
        (Valid for June 1992 version) AMMORTIZZATORE ANTERIORE
        from £653.67
        from £653.67
        FRONT SHOCK ABSORBER Genuine Lamborghini - New (to order)
        # 003
        MPN: WHT003355
        NUT
        (Valid for June 1992 version) DADO (Sostituisce il 008201206)
        from £13.28
        from £13.28
        CLAMPING NUT Genuine Lamborghini - New In stock
        # 004
        MPN: 410512383
        RESILIENT BUSHING
        from £356.24
        from £356.24
        EXTENDIBLE 012 X 042X 46 X 35 Genuine Lamborghini - New In stock
        # 005
        MPN: 008101259
        SCREW
        (Valid for June 1992 version) VITE
        from £9.74
        from £9.74
        SCREW 12X1.25X70UNI5738ZG8G Genuine Lamborghini - New In stock
        # 006
        MPN: 005133229
        SCREW
        (Valid for June 1992 version) VITE (sostotuisce il 0081 01 268)
        from £4.78
        from £4.78
        FRONT SHOCK ABSORBERBOLTS Genuine Lamborghini - New (to order)
        # 007
        MPN: WHT003355
        NUT
        (Valid for June 1992 version) DADO
        from £13.28
        from £13.28
        CLAMPING NUT Genuine Lamborghini - New In stock
        # 008
        MPN: 008921206
        RESILIENT BUSHING
        (Valid for June 1992 version) BOCCOLA ELASTICA
        from £29.93
        from £29.93
        FLANBLOC Genuine Lamborghini - New In stock
        # 009
        MPN: 008101269
        SCREW
        (Valid for June 1992 version) VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 010
        MPN: 005129602
        ARM
        (Valid for June 1992 version) BRACCIO SUPERIORE DX (fino 12677)
        Lamborghini PART 005129602 Genuine Lamborghini - New (to order)
        # 010
        MPN: 005129603
        ARM
        (Valid for June 1992 version) BRACCIO SUPERIORE SX (fino 12677)
        from £376.99
        from £376.99
        see 005133345 Genuine Lamborghini - New (to order)
        # 010
        MPN: 005133344
        ARM
        (Valid for June 1992 version) BRACCIO SUPERIORE DX (dalla 12678) (Particolare intercambiabile)
        from £518.36
        from £518.36
        RH UPPER WISHBONE Genuine Lamborghini - New (to order)
        RH UPPER WISHBONE Genuine Lamborghini - Used In stock
        # 010
        MPN: 005133345
        ARM
        (Valid for June 1992 version) BRACCIO SUPERIORE SX (dalla 12678) (Particolare intercambiabile)
        from £544.51
        from £544.51
        LH UPPER WISHBONE Genuine Lamborghini - New (to order)
        LH UPPER WISHBONE Genuine Lamborghini - Used In stock
        # 011
        MPN: 005129541
        THREADED BUSHING
        (Valid for June 1992 version) BOCCOLA FILETTATA
        from £29.81
        from £29.81
        STEERING ARM JOINT SLEEVE Genuine Lamborghini - New (to order)
        # 012
        MPN: WHT000919
        WASHER
        from £9.08
        from £9.08
        WASHER Genuine Lamborghini - New (to order)
        # 013
        MPN: 008201003
        NUT
        (Valid for June 1992 version) DADO
        from £2.18
        from £2.18
        10X1.25 SELF-LOCKINGNUT Genuine Lamborghini - New (to order)
        # 014
        MPN: 410407365
        COUPLING
        (Valid for June 1992 version) TESTA A SNODO
        from £127.12
        from £127.12
        JOINT (410407365) Eurospares Approved Part - New In stock
        JOINT Genuine Lamborghini - New (to order)
        # 015
        MPN: 410407171C
        THREADED BUSHING
        (Valid for June 1992 version) BOCCOLA FILETTATA
        from £407.25
        from £407.25
        This part replaces part number 410407171
        BUSH Genuine Lamborghini - New (to order)
        # 016
        MPN: 005130255
        STABILIZER BAR
        (Valid for June 1992 version) BARRA STABILIZZATRICE
        from £798.93
        from £798.93
        ROLL BAR Genuine Lamborghini - New (to order)
        # 017
        MPN: 005230256
        RETAINER
        (Valid for June 1992 version) CAVALLOTTO SUPERIORE
        Lamborghini PART 005230256 Genuine Lamborghini - New (to order)
        # 018
        MPN: 005238302
        BUSHING
        (Valid for June 1992 version) BOCCOLA
        from £88.31
        from £88.31
        This part replaces part number 005230804
        TORSION BAR BUSHING Genuine Lamborghini - New In stock
        # 019
        MPN: 005230257
        RETAINER
        (Valid for June 1992 version) CAVALLOTTO INFERIORE
        Lamborghini PART 005230257 Genuine Lamborghini - New (to order)
        # 020
        MPN: 008410602
        WASHER
        (Valid for June 1992 version) RONDELLA
        from £28.28
        from £28.28
        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
        # 021
        MPN: 008700609
        SCREW
        (Valid for June 1992 version) VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 022
        MPN: 005109714
        BOOT
        (Valid for June 1992 version) CAPPUCCIO
        from £16.55
        from £16.55
        BOOT Genuine Lamborghini - New In stock
        # 023
        MPN: 005227297
        BUSHING
        (Valid for June 1992 version) BOCCOLA
        from £18.21
        from £18.21
        BALL JOINT BUSHING Genuine Lamborghini - New (to order)
        # 024
        MPN: 008100810
        SCREW
        (Valid for June 1992 version) VITE (dalla 12609 sostituisce 008100807)
        Lamborghini PART 008100810 Genuine Lamborghini - New (to order)
        # 025
        MPN: 005227298
        BUSHING
        (Valid for June 1992 version) BOCCOLA
        from £11.08
        from £11.08
        TORSION BAR ADAPTER BUSHING Genuine Lamborghini - New In stock
        # 026
        MPN: N0111849
        NUT
        (Valid for June 1992 version) DADO (dalla 12609 sostituisce 008200809)
        from £1.39
        from £1.39
        This part replaces part number 008200809
        HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
        # 027
        MPN: 417801931A
        BALL JOINT
        (Valid for June 1992 version) GIUNTO SFERICO
        from £160.39
        from £160.39
        This part replaces part number 005206963 - and 1 more. Click to view details
        STRAP JOINT Genuine Lamborghini - New In stock
        # 028
        MPN: 008201014
        NUT
        (Valid for June 1992 version) DADO
        from £3.86
        from £3.86
        M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
        # 029
        MPN: 005209770
        TIE ROD
        (Valid for June 1992 version) TIRANTE
        from £71.89
        from £71.89
        TORSION BAR TIEROD Genuine Lamborghini - New (to order)
        # 030
        MPN: 008201016
        NUT
        (Valid for June 1992 version) DADO
        from £14.30
        from £14.30
        This part replaces part number 008201034
        10X1X6 S LEFT NUT Genuine Lamborghini - New (to order)
        # 031
        MPN: 005227295
        BALL JOINT
        (Valid for June 1992 version) GIUNTO SFERICO
        from £72.47
        from £72.47
        BALL JOINT (005227295) Eurospares Approved Part - New (to order)
        BALL JOINT (use 005227295 & 005227298) (005206964) Genuine Lamborghini - New (to order)
        BALL JOINT Genuine Lamborghini - New In stock
        # 032
        MPN: 005133488
        SHIM SP = 1,5 MM
        (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1,5 MM
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 032
        MPN: 410407295
        SHIM SP = 1 MM
        (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1 MM
        from £2.73
        from £2.73
        SPACER RING Genuine Lamborghini - New (to order)
        # 032
        MPN: 410407295B
        SHIM SP = 2 MM
        (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2 MM
        from £2.39
        from £2.39
        SPACER RING Genuine Lamborghini - New In stock
        # 032
        MPN: 410407295C
        SHIM SP = 2,5 MM
        (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2,5 MM
        from £2.64
        from £2.64
        SPACER RING Genuine Lamborghini - New In stock
        # 032
        MPN: 410407295D
        SHIM SP = 3 MM
        (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 3 MM
        from £17.99
        from £17.99
        SPACER RING Genuine Lamborghini - New In stock
        # 034
        MPN: 410407127A
        BOLT
        (Valid for June 1992 version) PERNO CON ECCENTRICO
        from £608.71
        from £608.71
        This part replaces part number 005231923
        ECCENTRIC Genuine Lamborghini - New (to order)
        # 035
        MPN: WHT003355
        NUT
        (Valid for June 1992 version) DADO
        from £13.28
        from £13.28
        CLAMPING NUT Genuine Lamborghini - New In stock
        # 036
        MPN: 410407127A
        BOLT
        (Valid for June 1992 version) ECCENTRICO
        from £608.71
        from £608.71
        This part replaces part number 005231923
        ECCENTRIC Genuine Lamborghini - New (to order)
        # 037
        MPN: 005127023
        ARM
        (Valid for June 1992 version) BRACCIO INFERIORE DX (fino 12745)
        Lamborghini PART 005127023 Genuine Lamborghini - New (to order)
        # 037
        MPN: 005127024
        ARM
        (Valid for June 1992 version) BRACCIO INFERIORE SX (fino 12745)
        Lamborghini PART 005127024 Genuine Lamborghini - New (to order)
        # 037
        MPN: 005133038
        ARM
        (Valid for June 1992 version) BRACCIO INFERIORE DX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati)
        from £734.08
        from £734.08
        RH LOWER WISHBONE Genuine Lamborghini - New (to order)
        # 037
        MPN: 005133039
        ARM
        (Valid for June 1992 version) BRACCIO INFERIORE SX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati)
        from £734.08
        from £734.08
        LH LOWER WISHBONE Genuine Lamborghini - New (to order)
        # 038
        MPN: 410407361B
        COUPLING
        (Valid for June 1992 version) TESTA A SNODO
        from £254.24
        from £254.24
        This part replaces part number 410407361
        LOCATING LINKAGE (410407361B) Eurospares Approved Part - New In stock
        LOCATING LINKAGE Genuine Lamborghini - New In stock
        # 039
        MPN: 410512385
        RUBBER RING
        from £32.34
        from £32.34
        SHOCK ABSORBER BULKHEAD Genuine Lamborghini - New (to order)
        # 040
        MPN: 005131484
        SPACER
        (Valid for June 1992 version) DISTANZIALE
        from £22.26
        from £22.26
        SHOCK ABSORBER TOP SHIM Genuine Lamborghini - New (to order)
        # 041
        MPN: 008700606
        DOWEL
        (Valid for June 1992 version) GRAND (dalla 12678)
        from £0.50
        from £0.50
        SCREW EI M6X1X10 12KD Genuine Lamborghini - New In stock
        SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
        (Valid for June 1992 version) GRAND (dalla 12678)
        # 042
        MPN: 008401234
        WASHER
        (Valid for June 1992 version) RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
