52.02.00 - Rear Suspension

Lamborghini Diablo (1991) Rear Suspension Parts Diagram

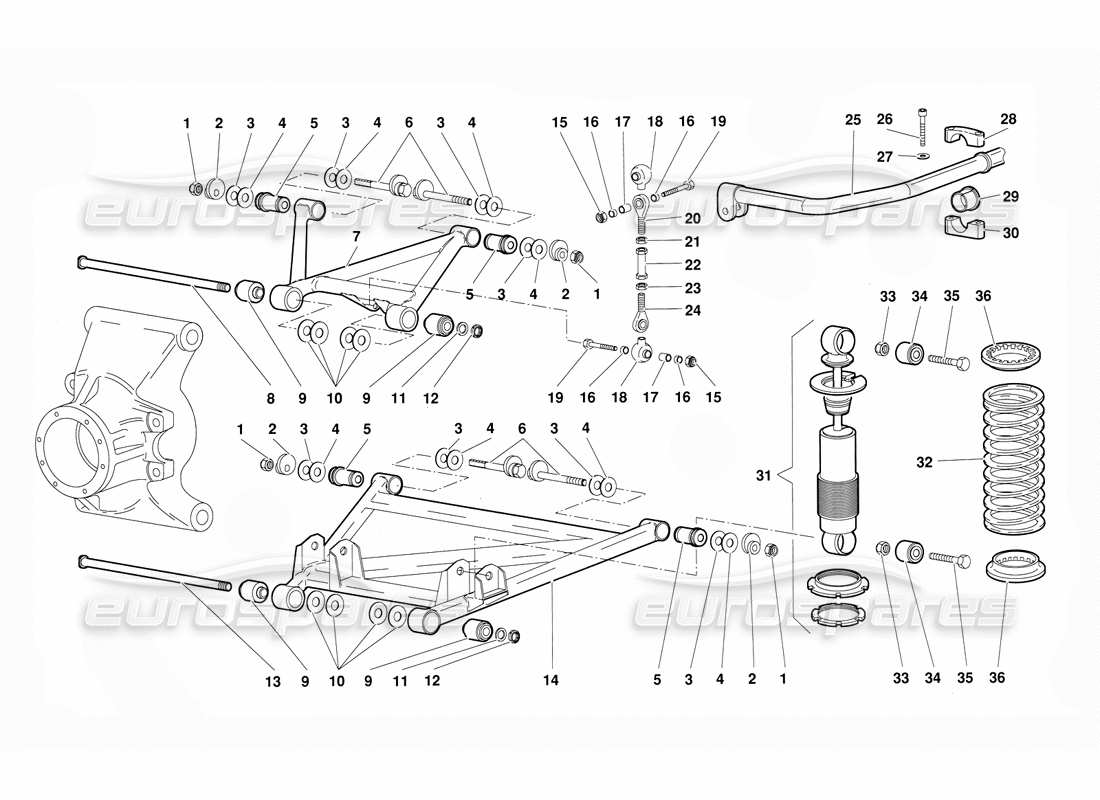

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: WHT003355
      NUT
      DADO
      from £13.28
      from £13.28
      CLAMPING NUT Genuine Lamborghini - New In stock
      # 002
      MPN: 410407127A
      BOLT
      ECCENTRICO
      from £608.71
      from £608.71
      This part replaces part number 005231923
      ECCENTRIC Genuine Lamborghini - New (to order)
      # 003
      MPN: 008401235
      SHIM
      SPESSORE Dl REGISTRO SP = 1 MM
      from £0.54
      from £0.54
      WASHER Genuine Lamborghini - New (to order)
      # 004
      MPN: 008401236
      SHIM
      SPESSORE Dl REGISTRO SP = 0.5 MM
      from £0.54
      from £0.54
      WASHER Genuine Lamborghini - New (to order)
      # 005
      MPN: 008921206
      RESILIENT BUSHING
      BOCCOLA ELASTICA
      from £29.93
      from £29.93
      FLANBLOC Genuine Lamborghini - New In stock
      # 006
      MPN: 410407127A
      BOLT
      PERNO CON ECCENTRICO
      from £608.71
      from £608.71
      This part replaces part number 005231923
      ECCENTRIC Genuine Lamborghini - New (to order)
      # 007
      MPN: 005225908
      RH UPPER SUSPENSION ARM
      from £1,344.52
      from £1,344.52
      RH UPPER ARM Genuine Lamborghini - New (to order)
      # 007
      MPN: 005225909
      ARM
      BRACCIO SUPERIORE SINISTRO
      from £1,539.06
      from £1,539.06
      LH UPPER ARM Genuine Lamborghini - New (to order)
      # 008
      MPN: 005225204
      PIN
      PERNO
      from £57.79
      from £57.79
      UPPER REAR ARM PIN Genuine Lamborghini - New (to order)
      # 009
      MPN: 005225207
      RESILIENT BUSHING
      BOCCOLA ELASTICA
      from £129.30
      from £129.30
      BUSH (005225207) Eurospares Approved Part - New In stock
      JOINT Genuine Lamborghini - New (to order)
      # 010
      MPN: 008401710
      SHIM
      SPESSORE Dl REGISTRO
      from £26.12
      from £26.12
      FLAT WASHER 17X34X1 Genuine Lamborghini - New (to order)
      # 011
      MPN: 008401708
      WASHER
      RONDELLA
      from £1.58
      from £1.58
      WASHER 17.5X26X3 AQ42 Genuine Lamborghini - New In stock
      # 012
      MPN: 008251702
      PLUG
      GHIERA
      from £2.41
      from £2.41
      This part replaces part number 008251701
      M17X1X28 SELF-LOCKING RING NUT Genuine Lamborghini - New In stock
      # 013
      MPN: 005225205
      PIN
      PERNO
      from £57.79
      from £57.79
      UPPER ARM PIN Genuine Lamborghini - New (to order)
      # 014
      MPN: 005225906
      ARM
      BRACCIO INFERIORE DESTRO
      from £1,119.71
      from £1,119.71
      RH LOWER ARM Genuine Lamborghini - New (to order)
      # 014
      MPN: 005225907
      ARM
      BRACCIO INFERIORE SINISTRO
      from £1,111.07
      from £1,111.07
      LH LOWER ARM Genuine Lamborghini - New (to order)
      # 015
      MPN: 008200809
      NUT
      DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 016
      MPN: 005227297
      BUSHING
      BOCCOLA
      from £18.21
      from £18.21
      BALL JOINT BUSHING Genuine Lamborghini - New (to order)
      # 017
      MPN: 005227298
      BUSHING
      BOCCOLA
      from £11.08
      from £11.08
      TORSION BAR ADAPTER BUSHING Genuine Lamborghini - New In stock
      # 018
      MPN: 005109714
      BOOT
      CAPPUCCIO
      from £16.55
      from £16.55
      BOOT Genuine Lamborghini - New In stock
      # 019
      MPN: 008100807
      SCREW
      VITE
      from £0.51
      from £0.51
      SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
      # 020
      MPN: 417801931A
      BALL JOINT
      GlUNTO SFERICO
      from £160.39
      from £160.39
      This part replaces part number 005206963 - and 1 more. Click to view details
      STRAP JOINT Genuine Lamborghini - New In stock
      # 021
      MPN: 008201014
      NUT
      DADO
      from £3.86
      from £3.86
      M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
      # 022
      MPN: 005209770
      TIE ROD
      TIRANTE
      from £71.89
      from £71.89
      TORSION BAR TIEROD Genuine Lamborghini - New (to order)
      # 023
      MPN: 008201016
      NUT
      DADO
      from £14.30
      from £14.30
      This part replaces part number 008201034
      10X1X6 S LEFT NUT Genuine Lamborghini - New (to order)
      # 024
      MPN: 005227295
      BALL JOINT
      GlUNTO SFERICO
      from £72.47
      from £72.47
      BALL JOINT (005227295) Eurospares Approved Part - New (to order)
      BALL JOINT (use 005227295 & 005227298) (005206964) Genuine Lamborghini - New (to order)
      BALL JOINT Genuine Lamborghini - New In stock
      # 025
      MPN: 005230211
      STABILIZER BAR
      BARRA STABILIZZATRIC
      from £798.93
      from £798.93
      ROLL BAR Genuine Lamborghini - New (to order)
      # 026
      MPN: 008700609
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 027
      MPN: 008410602
      WASHER
      RONDELLA
      from £27.52
      from £27.52
      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
      # 028
      MPN: 005230256
      RETAINER
      CAVALLOTTO
      Lamborghini PART 005230256 Genuine Lamborghini - New (to order)
      # 029
      MPN: 005238302
      BUSHING
      BOCCOLA
      from £88.31
      from £88.31
      This part replaces part number 005230804
      TORSION BAR BUSHING Genuine Lamborghini - New In stock
      # 030
      MPN: 005230257
      RETAINER
      CAVALLOTTO
      Lamborghini PART 005230257 Genuine Lamborghini - New (to order)
      # 031
      MPN: 005229803
      SHOCK ABSORBER
      AMMORTIZZATORE POSTERIORE
      from £769.53
      from £769.53
      REAR SHOCK ABSORBER Genuine Lamborghini - New (to order)
      # 032
      MPN: 005226158
      SPRING
      MOLLA
      from £428.65
      from £428.65
      SHOCK ABSORBER SPRING Genuine Lamborghini - New (to order)
      # 033
      MPN: 008201206
      NUT
      DADO
      from £3.70
      from £3.70
      12X1.25X11.8/ NUT Genuine Lamborghini - New (to order)
      # 034
      MPN: 410512383
      RESILIENT BUSHING
      from £356.24
      from £356.24
      EXTENDIBLE 012 X 042X 46 X 35 Genuine Lamborghini - New In stock
      # 035
      MPN: 008101274
      SCREW
      VITE
      from £4.03
      from £4.03
      SCREW M12X1.25X65UNI5738/8 Genuine Lamborghini - New (to order)
      # 036
      MPN: 410512385
      RUBBER RING
      from £32.34
      from £32.34
      SHOCK ABSORBER BULKHEAD Genuine Lamborghini - New (to order)
