62.01.00 - fuel system
Lamborghini Diablo (1991) Fuel System Parts Diagram

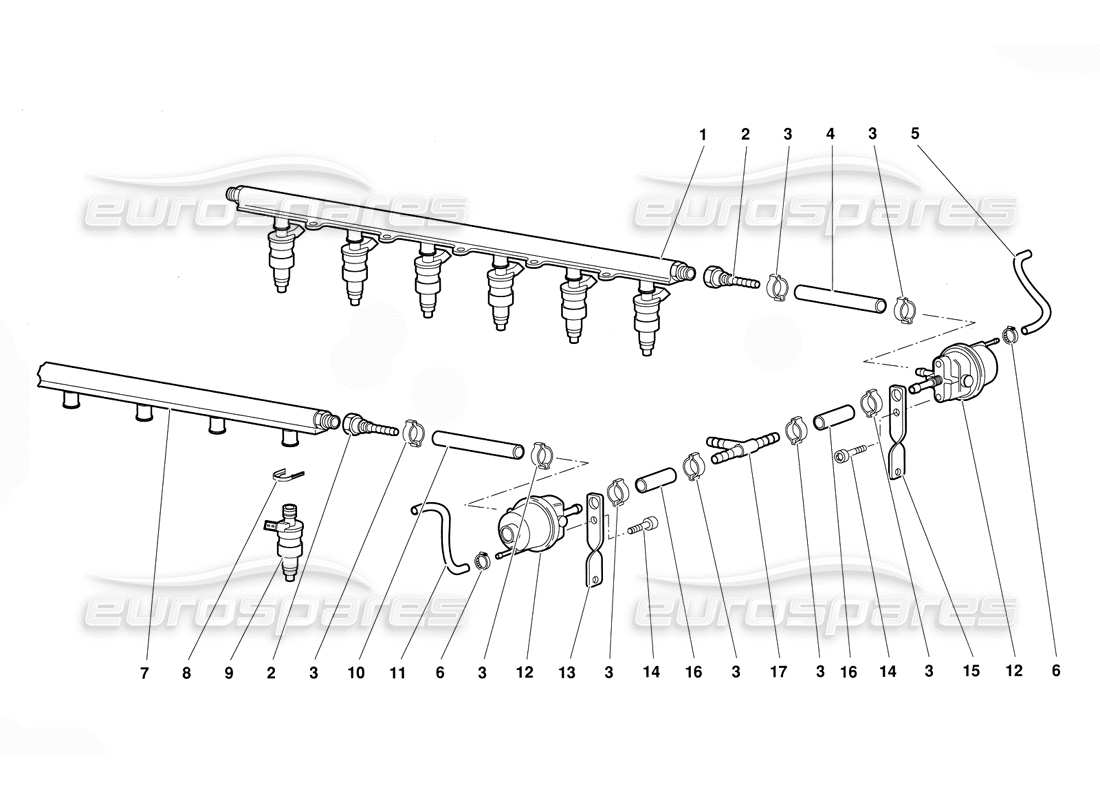

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002027643
INJECTOR ASSEMBLY
ASSIEME TUBAZIONE INTIETTORI
from £2,810.68
from £2,810.68
This part replaces part number 002026178
# 002
MPN: 006227630
CONNECTION
RACCORDO
from £8.43
from £8.43
# 003
MPN: 008830902
STRAP
FASCETTA
from £3.28
from £3.28
# 004
MPN: 002030229
PIPE
Tubo
from £118.89
from £118.89
# 005
MPN: 001330451
PIPE
Tubo
from £36.74
from £36.74
# 006
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 007
MPN: 002026178
RIGID PIPE
TUBAZIONE RIGIDA
Supersession
Supersession
# 008
MPN: 002027642
CLIP
MOLLETTA
# 009
MPN: 002024396
INJECTOR
INIETTORE
from £218.89
from £218.89
# 010
MPN: 002030231
PIPE
Tubo
# 011
MPN: 001330452
PIPE
Tubo
# 012
MPN: 002027648
PRESSURE REGULAT.
REGOLATORE PRESSIONE
from £291.52
from £291.52
# 013
MPN: 002030227
SUPPORT
SUPPORTO
from £26.85
from £26.85
# 014
MPN: 008700643
SCREW
VITE
from £0.53
from £0.53
# 015
MPN: 002030228
SUPPORT
SUPPORTO
from £26.85
from £26.85
# 016
MPN: 002030233
PIPE
Tubo
from £229.13
from £229.13
# 017
MPN: 002032279
CONNECTION
RACCORDO A THE VIE
from £32.09
from £32.09
