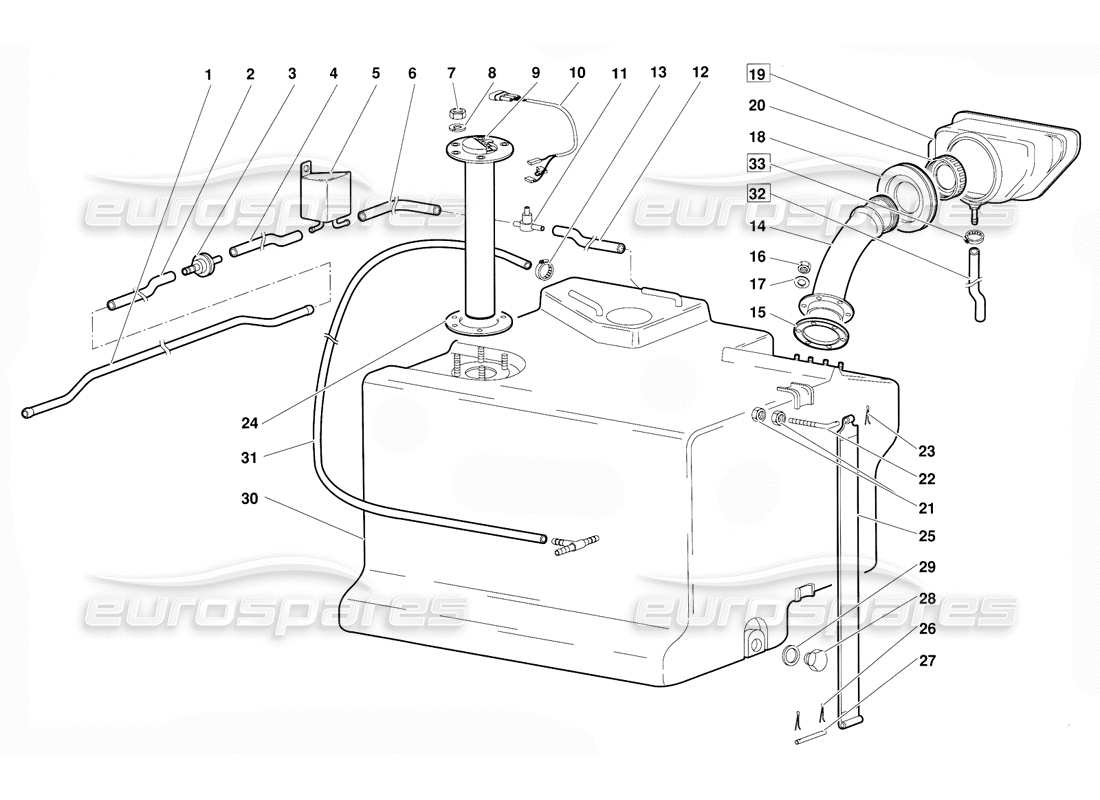

Lamborghini Diablo (1991) Fuel System (Valid for June 1992 Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006231441
PIPE
(Valid for June 1992 version) TUBO IN RAME
from £293.50
from £293.50
# 002
MPN: 006231442
PIPE
(Valid for June 1992 version) TUBO
from £4.44
from £4.44
# 003
MPN: 006229379
SAFETY VALVE
(Valid for June 1992 version) VALVOLA Dl SOVRAPRESSIONE
from £82.34
from £82.34
# 004
MPN: 006230435
PIPE
(Valid for June 1992 version) TUBO
from £5.43
from £5.43
# 005
MPN: 006231444
VAPOUR TANK
(Valid for June 1992 version) SEPARATORE VAPORI BENZINA
# 006
MPN: 006230437
PIPE
(Valid for June 1992 version) TUBO
from £22.28
from £22.28
# 007
MPN: 008200501
NUT
(Valid for June 1992 version) DADO
Supersession
Supersession
# 008
MPN: 008410502
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 009
MPN: 006229648
LEVEL GAUGE
(Valid for June 1992 version) INDICATORE LIVELLO
from £215.57
from £215.57
# 010
MPN: 006130617
ELECT CABLE
(Valid for June 1992 version) CABLAGGIO GALLEGGIANTE
from £22.81
from £22.81
# 011
MPN: 006230531
SAFETY VALVE
(Valid for June 1992 version) VALVOLA SICUREZZA
from £185.31
from £185.31
# 012
MPN: 006230438
PIPE
(Valid for June 1992 version) TUBO
from £9.00
from £9.00
# 013
MPN: 008831117
STRAP
(Valid for June 1992 version) FASCETTA
Supersession
Supersession
# 014
MPN: 006221128
FILLER TUBE
(Valid for June 1992 version) TUBO INTRODUZIONE
from £1,128.37
from £1,128.37
# 015
MPN: 006205360
GASKET
(Valid for June 1992 version) GUARNIZIONE
from £34.14
from £34.14
# 016
MPN: N01100412
NUT
(Valid for June 1992 version) DADO
from £0.82
from £0.82
# 017
MPN: 008410402
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 018
MPN: 009409215
GASKET
(Valid for June 1992 version) GUARNIZIONE
from £20.65
from £20.65
This part replaces part number 009404215
# 019
MPN: 009490517
CASE
(Valid for June 1992 version) SCATOLA (dalla 1 2471 sostit. 0094905,06)
# 020
MPN: 400201587A
TANK CAP
(Valid for June 1992 version) TAPPO SERBATOIO
from £567.22
from £567.22
# 021
MPN: N01100845
NUT
(Valid for June 1992 version) DADO
from £1.28
from £1.28
This part replaces part number 008200801 - and 2 more. Click to view details
# 022
MPN: 006226884
TIE ROD
(Valid for June 1992 version) TIRANTE
# 023
MPN: 008820304
SPLIT PIN
(Valid for June 1992 version) COPIGLIA
Supersession
Supersession
# 024
MPN: 006229649
GASKET
(Valid for June 1992 version) GUARNIZIONE
from £9.77
from £9.77
# 025
MPN: 006229506
TIE ROD
(Valid for June 1992 version) TIRANTE
from £24.67
from £24.67
# 026
MPN: 008820201
SPLIT PIN
(Valid for June 1992 version) COPIGLIA
from £4.11
from £4.11
# 027
MPN: 006231344
PIN
(Valid for June 1992 version) PERNO
from £17.39
from £17.39
# 028
MPN: 008931203
DRAIN PLUG
(Valid for June 1992 version) TAPPO Dl SCARICO
from £9.44
from £9.44
# 029
MPN: WHT003362
WASHER
(Valid for June 1992 version) RONDELLA
from £0.92
from £0.92
# 030
MPN: 006229504
FUEL TANK
(Valid for June 1992 version) SERBATOIO COMBUSTIBILE
# 031
MPN: 006230215
PIPE
(Valid for June 1992 version) TUBO
from £84.58
from £84.58
# 032
MPN: 009490516
PIPE
(Valid for June 1992 version) TUBO (dalla 12471 sostit. 009490513)
from £8.38
from £8.38
# 033
MPN: 008832205
STRAP
(Valid for June 1992 version) FASCETTA (dalla 12471)
from £12.98
from £12.98
