lamborghini diablo (1991) windscreen wiper and headlamp washers (valid for gb version - october 1991) parts diagram

74.9420.01.00 - Windscreen Wiper and Headlamp Washers (Valid for GB Version - October 1991)

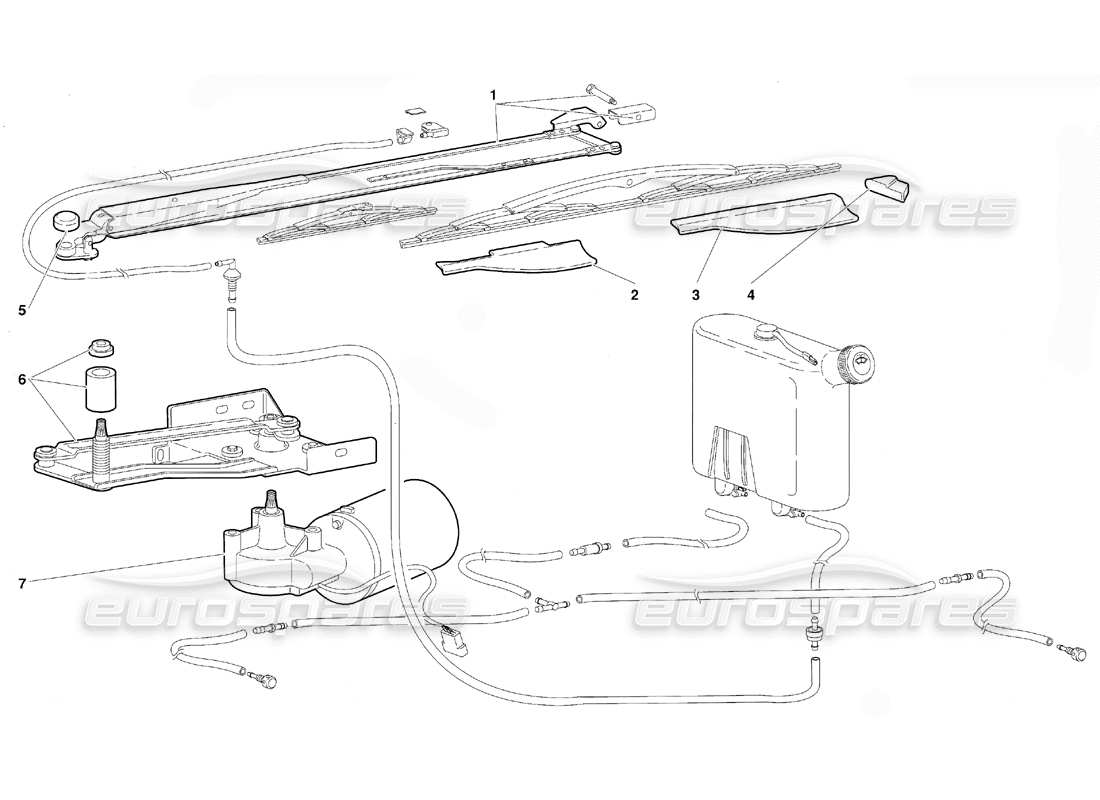

Lamborghini Diablo (1991) Windscreen Wiper and Headlamp Washers (Valid for GB Version - October 1991) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009421124
WIPER ARM
(Valid for GB version – October 1991) BRACCIOTERGITORE
# 002
MPN: 009420120
WING
(Valid for GB version – October 1991) ALETTA PICCOLA
from £237.96
from £237.96
# 003
MPN: 009420121
WING
(Valid for GB version – October 1991) ALETTA GRANGE
from £237.96
from £237.96
# 004
MPN: 009420122
STOP CATCH
(Valid for GB version – October 1991) GOMMA ARRESTO TERGI
# 005
MPN: 006119917
PLUG
(Valid for GB version – October 1991) TAPPO
from £4.36
from £4.36
# 006
MPN: 009421123
KIT WINSHIELD WIPER
(Valid for GB version – October 1991) MECCANISMO TERGI
# 007
MPN: 009420112
ELECT MOTOR
(Valid for GB version – October 1991) MOTORING ELETTRICO
from £378.90
from £378.90
