76.61.01.00 - Electrical System (Valid for Australia Version - October 1991)

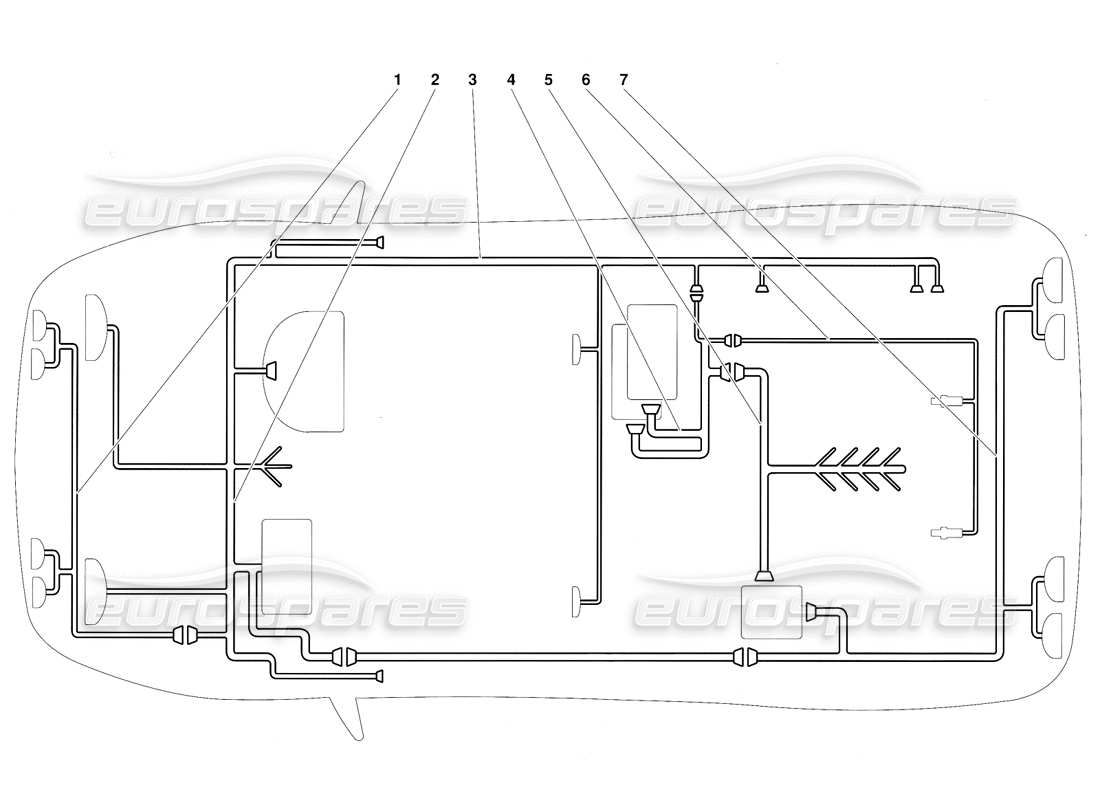

Lamborghini Diablo (1991) Electrical System (Valid for Australia Version - October 1991) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006132499
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO PARAURTI ANTERIORE
from £1,954.09
from £1,954.09
# 002
MPN: 006132500
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO CENTRALE
from £291.84
from £291.84
# 003
MPN: 006132503
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO CENTRALINE CATALYST
from £407.10
from £407.10
# 004
MPN: 006131376
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO CENTRALINE ACC./INIEZ.
from £447.89
from £447.89
# 005
MPN: 006132502
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO MOTORE
from £1,883.32
from £1,883.32
# 006
MPN: 006131363
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO SONDE LAMBDA
from £106.95
from £106.95
# 007
MPN: 006132501
ELECT CABLE
(Valid for AUSTRALIA version – October 1991) CABLAGGIO PARAURTI POSTERIORE
