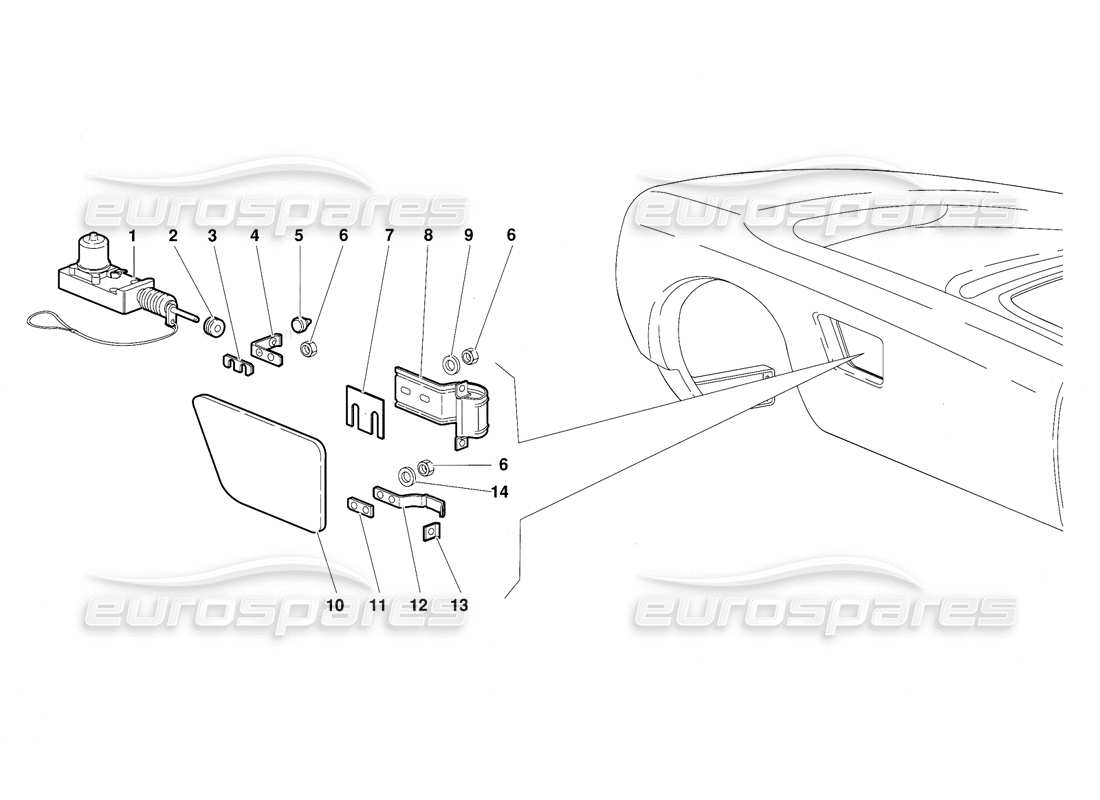

9410.02.00 - FUEL CAP

Lamborghini Diablo (1991) Fuel Cap Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 005930521
CONTROL
COMANDO APERTURA PORTELLO
from £395.00
from £395.00
# 002
MPN: 008610503
RUBBER RING
ANELLO COMMA
Supersession
Supersession
# 003
MPN: 009490512
SHIM
SPESSORE
from £23.39
from £23.39
# 004
MPN: 009490511
ANGLE PIECE
ANGOLARE
from £92.45
from £92.45
# 005
MPN: 009490509
RUBBER BUMPER
PARACOLPI GOMMA
# 006
MPN: N0211963
NUT
DADO
from £0.52
from £0.52
# 007
MPN: 009490510
SHIM
SPESSORE
from £23.84
from £23.84
# 008
MPN: 009490501
HINGE
CERNIERA
from £516.19
from £516.19
# 009
MPN: 008400508
WASHER
RONDELLA
Supersession
Supersession
# 010
MPN: 009410209
LID
SPORTELLO BENZINA
from £480.31
from £480.31
# 011
MPN: 009490508
SHIM
SPESSORE
from £2.87
from £2.87
# 012
MPN: 009490505
PLATE
PIASTRINA ELASTICA
from £5.35
from £5.35
# 013
MPN: 009490507
PLATE
Piastrina
from £1.92
from £1.92
# 014
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
