lamborghini diablo (1991) body elements-left flank parts diagram

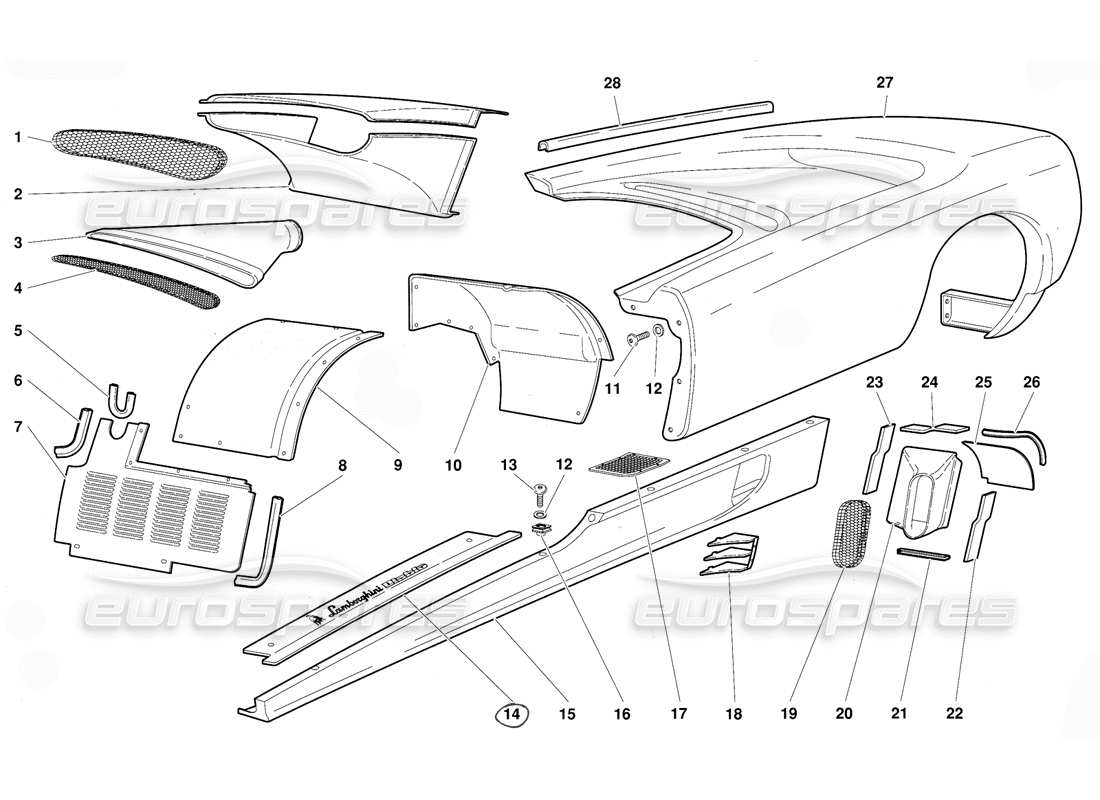

9410.04.00 - Body Elements-Left Flank

Lamborghini Diablo (1991) Body Elements-Left Flank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009430125
NET
RETE
from £228.28
from £228.28
# 002
MPN: 009453101
CONVEYOR
CONVOGLIATORE
from £1,131.74
from £1,131.74
# 003
MPN: 009453103
CONVEYOR
CONVOGLIATORE
from £366.47
from £366.47
# 004
MPN: 009430127
NET
RETE
from £157.12
from £157.12
# 005
MPN: 009411513
GASKET
Guarnizione
from £102.46
from £102.46
# 006
MPN: 009411512
GASKET
Guarnizione
from £38.31
from £38.31
# 007
MPN: 009411504
REAR WHEELBOX
ELEMENTO PASSARUOTA POST.
from £435.29
from £435.29
# 008
MPN: 009411511
GASKET
Guarnizione
from £69.15
from £69.15
# 009
MPN: 009411505
REAR WHEELBOX
ELEMENTO PASSARUOTA POST.
from £282.74
from £282.74
# 010
MPN: 009411506
REAR WHEELBOX
ELEMENTO PASSARUOTA POST.
from £305.11
from £305.11
# 011
MPN: 008700685
SCREW
VITE
Supersession
Supersession
# 012
MPN: 008400624
WASHER
RONDELLA
from £2.68
from £2.68
# 013
MPN: N10718801
SCREW
VITE
from £0.59
from £0.59
# 014
MPN: 009458308
DOORSILL MOULDING
BATTICALCAGNO
from £1,167.49
from £1,167.49
# 015
MPN: 009410301
SIDE PANEL
BRANCARDO
from £4,564.25
from £4,564.25
# 016
MPN: N90327506
PLATE
PIASTRINA FILETTATA
from £0.56
from £0.56
# 017
MPN: 009430131
GRILLE
GRIGLIA
from £155.06
from £155.06
# 018
MPN: 009430002
GRILLE
GRIGLIA
from £114.42
from £114.42
# 019
MPN: 009430102
NET
RETE
from £170.35
from £170.35
# 020
MPN: 009453104
CONVEYOR
CONVOGLIATORE
from £313.00
from £313.00
# 021
MPN: 009453123
GASKET
Guarnizione
from £9.55
from £9.55
# 022
MPN: 009453126
GASKET
Guarnizione
from £2.53
from £2.53
# 023
MPN: 009453125
GASKET
Guarnizione
from £3.32
from £3.32
# 024
MPN: 009453124
GASKET
Guarnizione
from £4.48
from £4.48
# 025
MPN: 009453117
CONVEYOR
CONVOGLIATORE
from £56.97
from £56.97
# 026
MPN: 009490200
GASKET
Guarnizione
from £86.23
from £86.23
# 027
MPN: 009410003
REAR FENDER
PARAFANGO POSTERIORE SINISTRO
Supersession
Supersession
# 028
MPN: 009490110
GASKET
Guarnizione
Supersession
Supersession
