lamborghini diablo (1991) body elements-right flank (valid for june 1992 version) parts diagram

9410.05.01 - Body Elements-Right Flank (Valid for June 1992 Version)

Lamborghini Diablo (1991) Body Elements-Right Flank (Valid for June 1992 Version) Parts Diagram

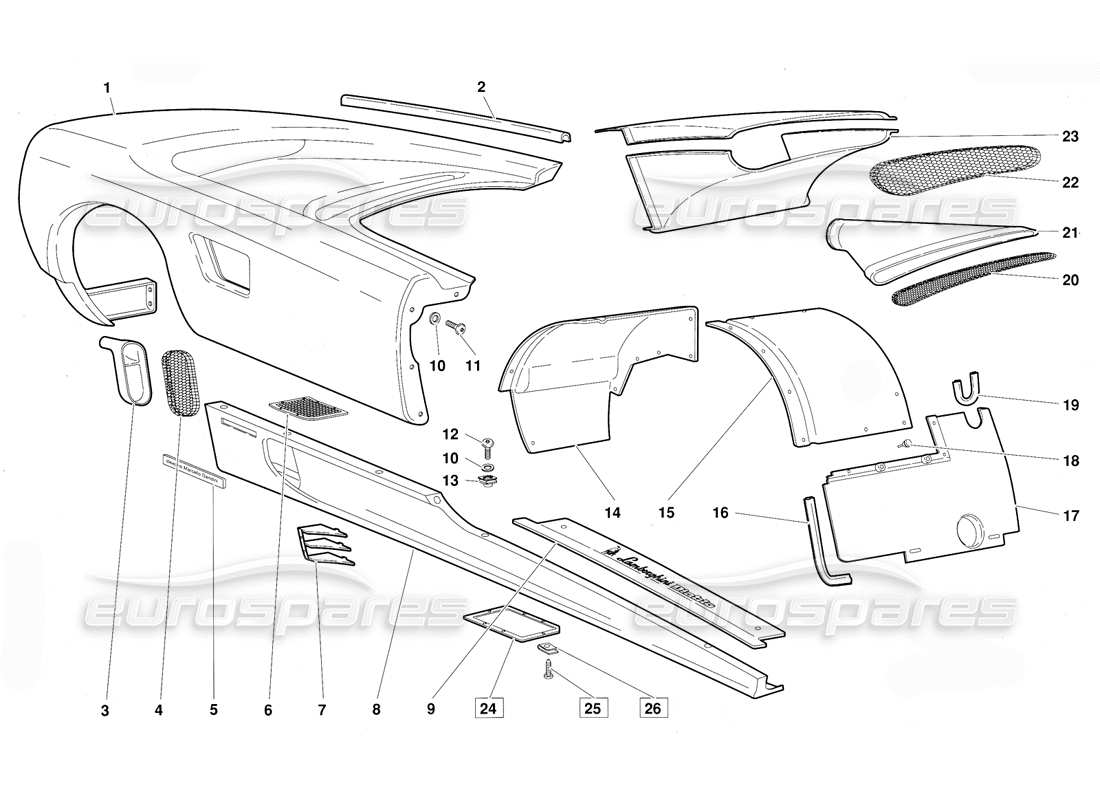

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 009410012
    RH REAR FENDER
    from £6,251.48
    from £6,251.48
    RIGHT REAR FENDER Genuine Lamborghini - New (to order)
    # 002
    MPN: 009490110
    GASKET
    (Valid for June 1992 version) GUARNIZIONE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 003
    MPN: 009453114
    CONVEYOR
    (Valid for June 1992 version) CONVOGLIATORE
    Lamborghini PART 009453114 Genuine Lamborghini - New (to order)
    # 004
    MPN: 009430101
    NET
    (Valid for June 1992 version) RETE
    from £170.35
    from £170.35
    RH SIDEMEMBER MESH Genuine Lamborghini - New (to order)
    # 005
    MPN: 009466109
    PLATE
    (Valid for June 1992 version) TARGHETTA MARCELLO GANDINI
    from £170.78
    from £170.78
    MARCELLO GANDINI PLATE Genuine Lamborghini - New In stock
    # 006
    MPN: 009430130
    GRILLE
    (Valid for June 1992 version) GRIGLIA
    from £155.06
    from £155.06
    SIDEMEMBER AIR EXHAUST GRID Genuine Lamborghini - New (to order)
    # 007
    MPN: 009430001
    GRILLE
    (Valid for June 1992 version) GRIGLIA
    from £589.50
    from £589.50
    RH SIDEMEMBER GRID Genuine Lamborghini - New (to order)
    # 008
    MPN: 009410300

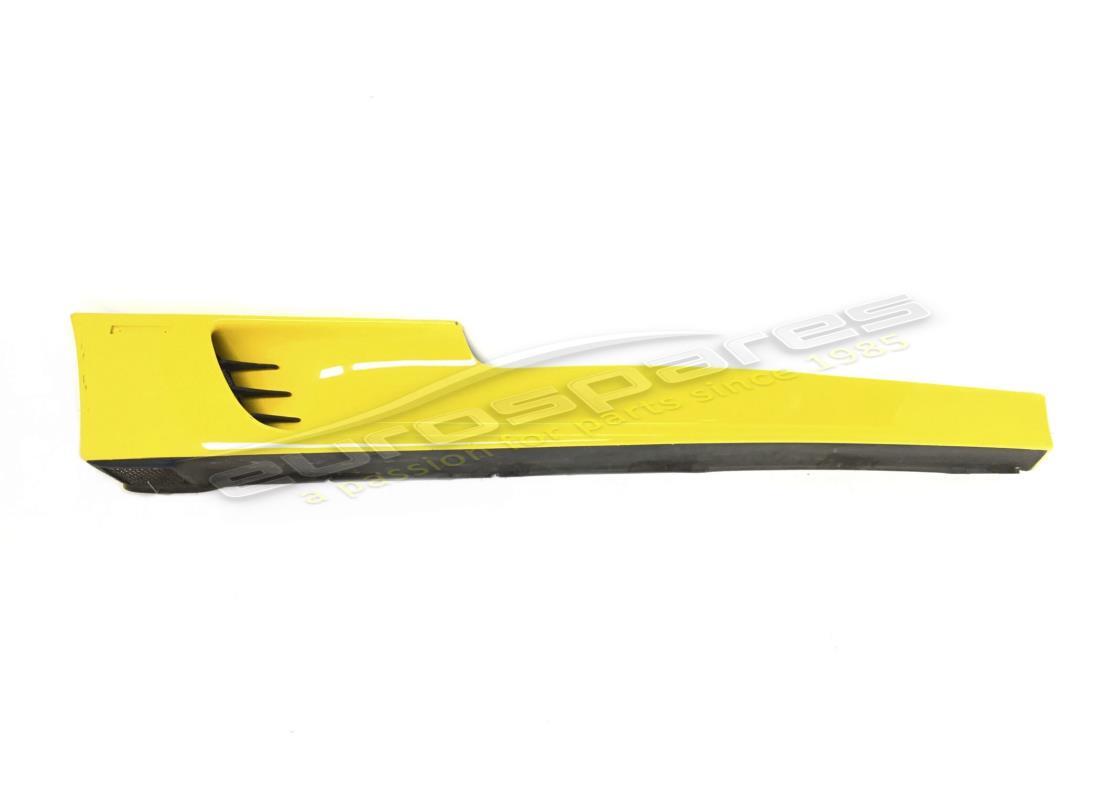

    SIDE PANEL
    (Valid for June 1992 version) BRANCARDO
    from £3,412.50
    from £3,412.50
    RH EXT SIDEMEMBER PANEL Genuine Lamborghini - New In stock
    RH EXT SIDEMEMBER PANEL Genuine Lamborghini - Used In stock
    # 009
    MPN: 009458307
    DOORSILL MOULDING
    (Valid for June 1992 version) BATTICALCAGNO
    from £1,167.49
    from £1,167.49
    RH DOOR FOOTBOARD Genuine Lamborghini - New (to order)
    RH DOOR FOOTBOARD Genuine Lamborghini - Used In stock
    # 010
    MPN: 008400624
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £2.68
    from £2.68
    FIRAL GENUINE WASHERFR NY-6-13 1033 Genuine Lamborghini - New (to order)
    # 011
    MPN: 008700685
    SCREW
    (Valid for June 1992 version) VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 012
    MPN: N10718801
    SCREW
    (Valid for June 1992 version) VITE
    from £0.59
    from £0.59
    HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
    bolt, hex. hd. with shoulder (N 10718801) Genuine Porsche Part - New In stock
    # 013
    MPN: N90327506
    PLATE
    (Valid for June 1992 version) PIASTRINA FILETTATA
    from £0.56
    from £0.56
    SPEED NUT Genuine Lamborghini - New In stock
    # 014
    MPN: 009411502
    REAR WHEELBOX
    (Valid for June 1992 version) ELEMENTO PASSARUOTA POST.
    from £619.35
    from £619.35
    RH REAR WHEELHOUSE-REAR Genuine Lamborghini - New In stock
    # 015
    MPN: 009411501
    REAR WHEELBOX
    (Valid for June 1992 version) ELEMENTO PASSARUOTA POST.
    from £271.12
    from £271.12
    RH REAR WHEELHOUSE-FRONT Genuine Lamborghini - New (to order)
    # 016
    MPN: 009411511
    GASKET
    (Valid for June 1992 version) GUARNIZIONE
    from £69.15
    from £69.15
    RH/LH REAR W/HOUSE GRIT SEAL Genuine Lamborghini - New (to order)
    # 017
    MPN: 009411500
    REAR WHEELBOX
    (Valid for June 1992 version) ELEMENTO PASSARUOTA POST.
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 018
    MPN: 009421408
    RUBBER PAD
    (Valid for June 1992 version) TAMPONE COMMA
    from £13.06
    from £13.06
    WINDOW STOP PAD Genuine Lamborghini - New (to order)
    # 019
    MPN: 009411513
    GASKET
    (Valid for June 1992 version) GUARNIZIONE
    from £102.46
    from £102.46
    LEFT AND RIGHT REAR BULKHEAD SEAL Genuine Lamborghini - New (to order)
    # 020
    MPN: 009430126
    NET
    (Valid for June 1992 version) RETE
    from £343.26
    from £343.26
    NET ON REAR RIGHT FENDER FOR A IR INLET Genuine Lamborghini - New (to order)
    # 021
    MPN: 009453102
    CONVEYOR
    (Valid for June 1992 version) CONVOGLIATORE
    from £599.21
    from £599.21
    RH AIR CLEANER MANIFOLD Genuine Lamborghini - New (to order)
    # 022
    MPN: 009430124
    NET
    (Valid for June 1992 version) RETE
    from £297.44
    from £297.44
    NET ON REAR RIGHT FENDER FOR A IR INLET Genuine Lamborghini - New (to order)
    # 023
    MPN: 009453100
    CONVEYOR
    (Valid for June 1992 version) CONVOGLIATORE
    Lamborghini PART 009453100 Genuine Lamborghini - New (to order)
    # 024
    MPN: 009410306
    LID
    (Valid for June 1992 version) SPORTELLO ISPEZIONE RUBINETTO (dalla 12798)
    from £42.46
    from £42.46
    CONDITIONED AIR VALVE LID ON R IGHT SKIR Genuine Lamborghini - New (to order)
    # 025
    MPN: WHT003114
    SCREW
    (Valid for June 1992 version) VITE (dalla 12798)
    from £3.34
    from £3.34
    This part replaces part number WHT000766
    PAN HEAD SHEET Genuine Lamborghini - New (to order)
    # 026
    MPN: WHT003424
    PLATE
    (Valid for June 1992 version) PIASTRINA FILETTATA (dalla 12798)
    from £0.58
    from £0.58
    SPRING Genuine Lamborghini - New In stock
