9421.01.00 - Doors

Lamborghini Diablo (1991) Doors Parts Diagram

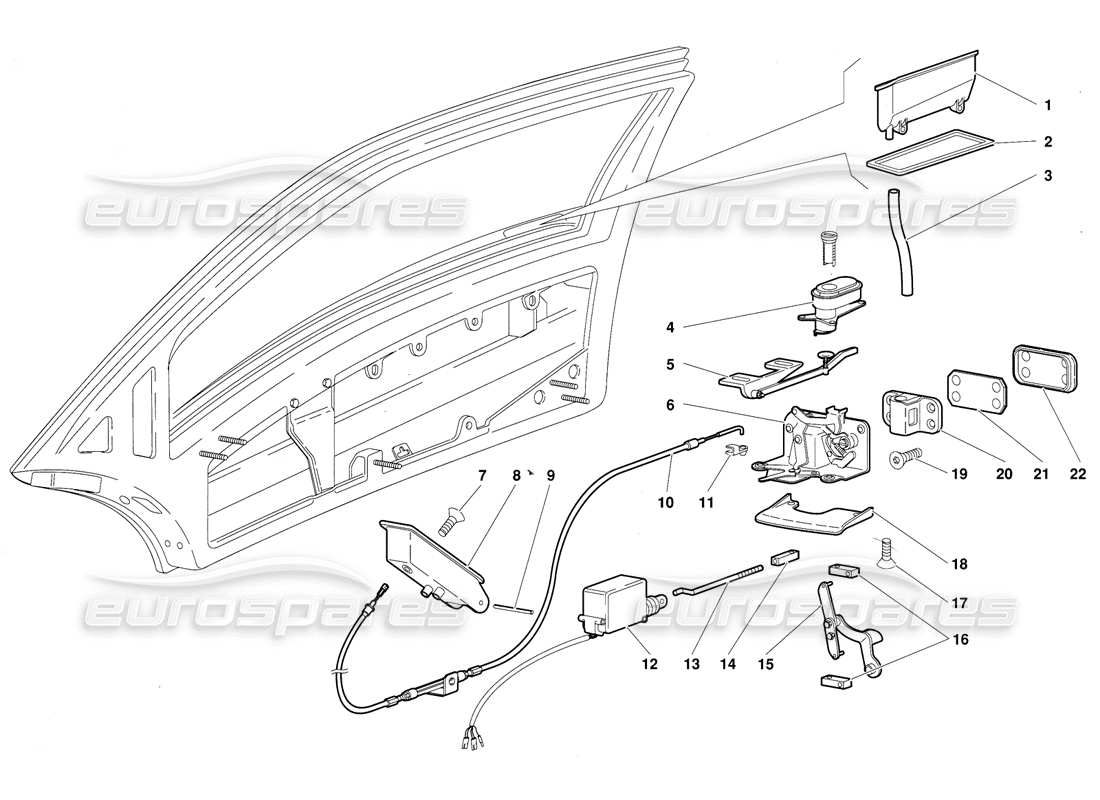

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 009421200
          HANDLE
          MANIGLIA DESTRA
          from £193.69
          from £193.69
          RIGHT DOOR EXTERNAL HANDLE Genuine Lamborghini - New (to order)
          # 001
          MPN: 009421201
          HANDLE
          MANIGLIASINISTRA
          from £202.77
          from £202.77
          LEFT DOOR EXTERNAL HANDLE Genuine Lamborghini - New In stock
          # 002
          MPN: 009421712
          GASKET
          GUARNIZIONE DESTRA
          from £3.45
          from £3.45
          DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
          # 002
          MPN: 009421713
          GASKET
          GUARNIZIONE SINISTRA
          from £8.34
          from £8.34
          DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
          # 003
          MPN: 009421245
          PIPE
          Tubo
          from £11.28
          from £11.28
          COOLANT DRAIN TUBE Genuine Lamborghini - New (to order)
          # 004
          MPN: 0072005036
          LH & RH DOOR BUTTONS
          from £282.74
          from £282.74
          DOOR BUTTONS KIT (RH+LH) Genuine Lamborghini - New In stock
          # 004
          MPN: 009421227/a
          RIGHT DOOR BUTTON
          use : 0072005036 (LH & RH buttons)
          RIGHT DOOR BUTTON Genuine Lamborghini - New (to order)
          # 004
          MPN: 009421228/a
          LEFT DOOR BUTTON
          use : 0072005036 (LH & RH buttons)
          LEFT DOOR BUTTON Genuine Lamborghini - New (to order)
          # 005
          MPN: 009421249
          IDLE LEVER
          RINVIO A LEVA DESTRA
          from £161.26
          from £161.26
          RH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 005
          MPN: 009421250
          IDLE LEVER
          RINVIO A LEVA SINISTRO
          from £161.26
          from £161.26
          LH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 006
          MPN: 410837015
          Left lock
          Left lock
          from £136.50
          from £136.50
          LEFT DOOR LOCK Genuine Lamborghini - New (to order)
          LEFT DOOR LOCK Genuine Lamborghini - Used In stock
          # 006
          MPN: 410837016
          Right lock
          SERRATURA DESTRA
          from £136.50
          from £136.50
          RIGHT DOOR LOCK Genuine Lamborghini - New (to order)
          RIGHT DOOR LOCK Genuine Lamborghini - Used In stock
          # 008
          MPN: 410823537
          HANDLE
          from £766.08
          from £766.08
          INTERNAL DOOR HANDLE Genuine Lamborghini - New In stock
          # 009
          MPN: 008900305
          PIN
          SPINA
          from £0.53
          from £0.53
          ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
          # 010
          MPN: 009421011
          CABLE
          CAVO APERTURA PORTA DX
          from £484.09
          from £484.09
          RH DOOR LOCK WIRE Genuine Lamborghini - New In stock
          # 010
          MPN: 009421012
          CABLE
          CAVO APERTURA PORTA SX
          from £759.16
          from £759.16
          LH DOOR LOCK WIRE Genuine Lamborghini - New (to order)
          # 011
          MPN: 009421251
          CLIP
          FERMAGLIO
          PAWL Genuine Lamborghini - New (to order)
          # 012
          MPN: 0R1320007
          LHS DOOR ACTUATOR
          from £555.96
          from £555.96
          KIT ATTUATORE PORTA SINISTRA Genuine Lamborghini - New (to order)
          # 012
          MPN: 0R1320008
          RHS DOOR ACTUATOR
          from £262.86
          from £262.86
          RHS DOOR ACTUATOR Genuine Lamborghini - New (to order)
          # 013
          MPN: 009421223
          TIE ROD
          TIRANTE
          from £57.50
          from £57.50
          LOCK CLOSING TIE-ROD Genuine Lamborghini - New (to order)
          # 014
          MPN: 007021016
          PAWL
          NOTTOLINO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 015
          MPN: 009421247
          IDLE LEVER
          RINVIO A LEVA DESTRO
          from £154.63
          from £154.63
          RH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 015
          MPN: 009421248
          IDLE LEVER
          RINVIO A LEVA SINISTRO
          from £154.63
          from £154.63
          LH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 016
          MPN: 009421214
          PAWL
          NOTTOLINO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 017
          MPN: 008700613
          SCREW
          VITE
          from £0.51
          from £0.51
          SCREW M6X14 UNI 5933/8G/ZB Genuine Lamborghini - New In stock
          # 018
          MPN: 009421236
          SHIELD
          PROTEZIONE DX
          from £121.06
          from £121.06
          RH DOOR LOCK COVER Genuine Lamborghini - New (to order)
          # 018
          MPN: 009421237
          SHIELD
          PROTEZIONESX
          from £154.35
          from £154.35
          LH DOOR LOCK COVER Genuine Lamborghini - New (to order)
          # 019
          MPN: 008700610
          SCREW
          VITE
          from £0.51
          from £0.51
          SCREW 6X22 UNI 5933/8G/ZD Genuine Lamborghini - New In stock
          # 020
          MPN: 410831407A
          LEFT LOCK STRIKER
          from £163.12
          from £163.12
          HINGE HALF LEFT Genuine Lamborghini - New (to order)
          HINGE HALF LEFT Genuine Lamborghini - Used In stock
          # 020
          MPN: 410831408A
          RIGHT LOCK STRIKER
          from £287.71
          from £287.71
          HINGE HALF RIGHT Genuine Lamborghini - New (to order)
          HINGE HALF RIGHT Genuine Lamborghini - Used In stock
          # 021
          MPN: 410837963
          SPACER
          DISTANZIALE
          from £9.81
          from £9.81
          SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
          # 021
          MPN: 410837964
          SPACER
          DISTANZIALE
          from £9.56
          from £9.56
          SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
          # 022
          MPN: 410837899
          PLATE
          from £9.34
          from £9.34
          DOOR HEATER TRIM Genuine Lamborghini - New (to order)
