9444.01.00 - Head Lamp Lighting System

Lamborghini Diablo (1991) Head Lamp Lighting System Parts Diagram

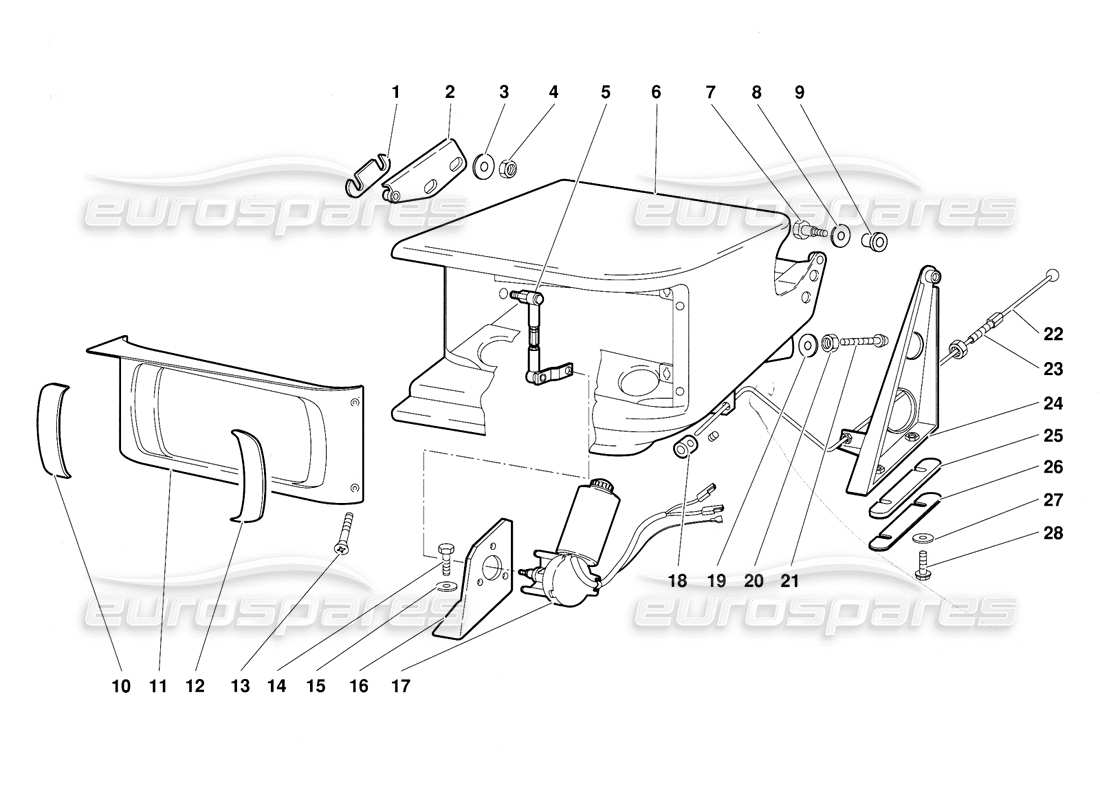

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 009444136
    SHIM
    SPESSORE
    from £14.35
    from £14.35
    RH/LH HEADLIGHT MOTOR SHIM Genuine Lamborghini - New (to order)
    # 001
    MPN: 009444137
    SHIM
    SPESSORE
    from £22.32
    from £22.32
    RH/LH HEADLIGHT MOTOR SHIM Genuine Lamborghini - New (to order)
    # 002
    MPN: 009444147
    SUPPORT
    SUPPORTO INTERNO FANALE DX
    from £27.94
    from £27.94
    RIGHT HEADLIGHT SUPPORT INTERN AL FRONT Genuine Lamborghini - New (to order)
    # 002
    MPN: 009444148
    SUPPORT
    SUPPORTO INTERNO FANALE SX
    from £27.94
    from £27.94
    LEFT HEADLIGHT SUPPORT INTERNA L FRONT B Genuine Lamborghini - New (to order)
    # 003
    MPN: WHT003093
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    WASHER Genuine Lamborghini - New In stock
    # 004
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 005
    MPN: 009444203
    TIE ROD
    TIRANTE CON LEVA
    Lamborghini PART 009444203 Genuine Lamborghini - New (to order)
    # 006
    MPN: 009444000
    HOUSING
    PALPEBRA DESTRA
    from £763.62
    from £763.62

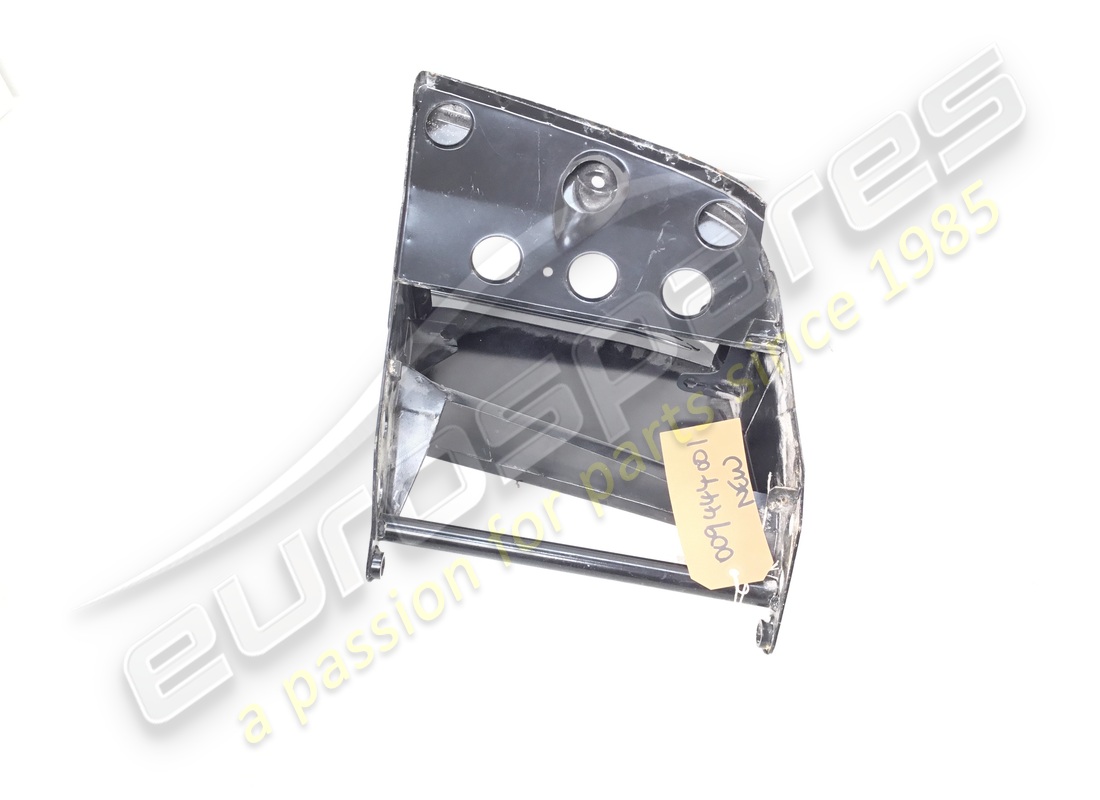

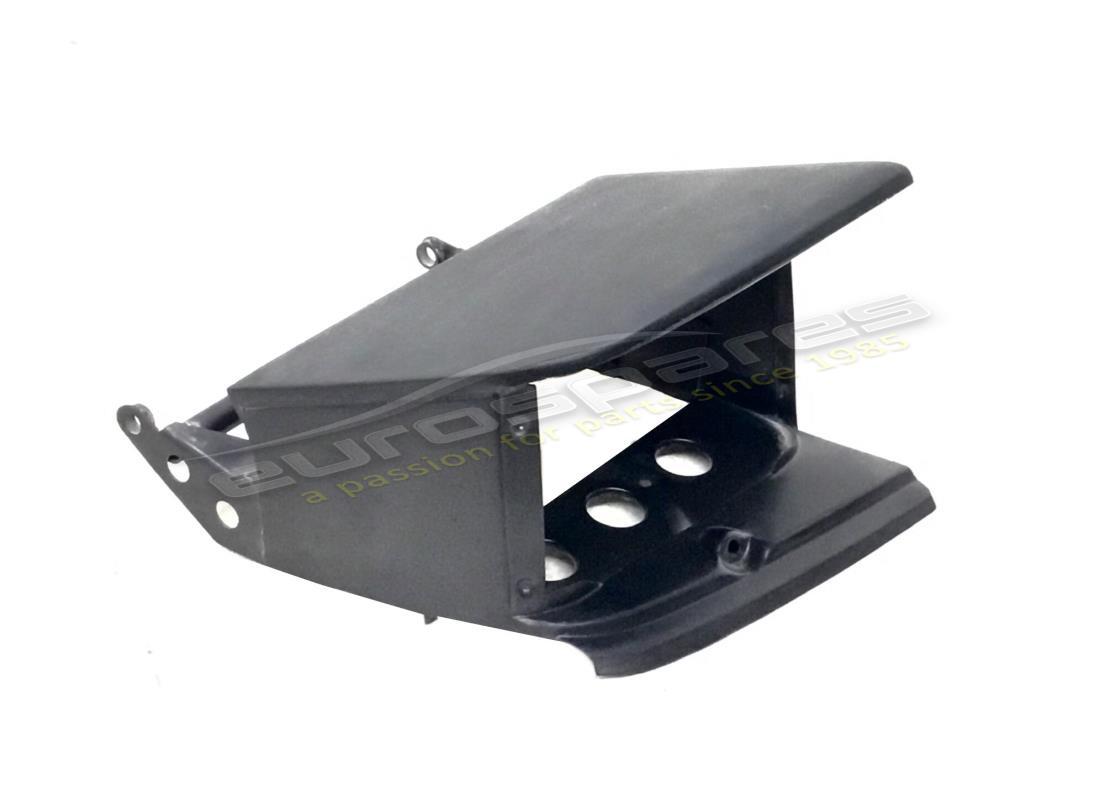

    RH HEADLIGHT BOX ASSEMBLY Genuine Lamborghini - New In stock
    # 006
    MPN: 009444001
    HOUSING
    PALPEBRA SINISTRA
    from £763.62
    from £763.62
    LH HEADLIGHT BOX ASSEMBLY Genuine Lamborghini - New In stock
    # 007
    MPN: 008100857
    PIN
    PERNO
    from £17.12
    from £17.12
    LID FIXING SPECIAL SCREW Genuine Lamborghini - New In stock
    # 008
    MPN: 009444138
    WASHER
    RONDELLA
    from £0.61
    from £0.61
    HEADLIGHT PIN BUSH Genuine Lamborghini - New (to order)
    # 009
    MPN: 008801004
    BUSHING
    BOCCOLA
    from £38.85
    from £38.85
    BUSHING 7X14X18 MM Genuine Lamborghini - New (to order)
    # 010
    MPN: 009444139
    ADHESIV
    ADESIVO ESTERNO PER CORNICE SX
    from £8.71
    from £8.71
    RH HEADLIGHT MALE STICKER-RH Genuine Lamborghini - New (to order)
    # 010
    MPN: 009444140
    ADHESIV
    ADESIVO INTERNO PER CORNICE SX
    from £3.85
    from £3.85
    RH HEADLIGHT MALE STICKER-LH Genuine Lamborghini - New (to order)
    # 011
    MPN: 009444124
    Frame
    CORNICE PER PALPEBRA DESTRA
    from £66.58
    from £66.58
    RH HEADLIGHT BOX FRAME Genuine Lamborghini - New (to order)
    RH HEADLIGHT BOX FRAME Genuine Lamborghini - Used In stock
    # 011
    MPN: 009444125
    Frame
    CORNICE PER PALPEBRA SINISTRA
    from £44.46
    from £44.46
    LH HEADLIGHT BOX FRAME Genuine Lamborghini - New (to order)
    LH HEADLIGHT BOX FRAME Genuine Lamborghini - Used In stock
    # 012
    MPN: 009444141
    ADHESIV
    ADESIVO INTERNO PER PALPEBRA DX
    from £8.71
    from £8.71
    LH HEADLIGHT STICKER Genuine Lamborghini - New (to order)
    # 012
    MPN: 009444142
    ADHESIV
    ADESIVO ESTERNO PER PALPEBRA DX
    from £8.71
    from £8.71
    LH HEADLIGHT STICKER LH Genuine Lamborghini - New (to order)
    # 013
    MPN: 008700210
    SCREW
    VITE (BIANCA)
    from £2.12
    from £2.12
    LOCK SCREW 2.9X16DIN7983/N Genuine Lamborghini - New (to order)
    # 013
    MPN: 008700211
    SCREW
    VITE (NERA)
    from £0.53
    from £0.53
    LOCK SCREW 2.9X16DIN7983/Z BL ACK Genuine Lamborghini - New In stock
    # 014
    MPN: N10158604
    SCREW
    VITE
    from £16.26
    from £16.26
    HEXAGON FLANGE Genuine Lamborghini - New (to order)
    # 015
    MPN: 008400620
    WASHER
    RONDELLA
    from £1.00
    from £1.00
    WASHER 6.5 UNI 1734/5S/B Genuine Lamborghini - New (to order)
    # 016
    MPN: 009444143
    SUPPORT
    SUPPORTO DESTRO
    from £58.95
    from £58.95
    RH HEADLIGHT MOTOR BRACKET Genuine Lamborghini - New (to order)
    # 016
    MPN: 009444144
    SUPPORT
    SUPPORTO SINISTRO
    from £58.71
    from £58.71
    LH HEADLIGHT MOTOR BRACKET Genuine Lamborghini - New (to order)
    # 017
    MPN: 005937318
    electric motor
    MOTORING ALZAFARI DESTRO
    from £618.51
    from £618.51
    RH HEADLIGHT ADJUSTMENT MOTOR Genuine Lamborghini - New (to order)
    # 017
    MPN: 005937319
    electric motor
    MOTORING ALZAFARI SINISTRO
    from £213.08
    from £213.08
    LH HEADLIGHT ADJUSTMENT MOTOR Genuine Lamborghini - New (to order)
    # 018
    MPN: 009459217
    CLAMP
    MORSETTO
    CLAMP Genuine Lamborghini - New (to order)
    # 019
    MPN: 008410603
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: N01100632
    NUT
    DADO
    from £1.06
    from £1.06
    HEX.NUT Genuine Lamborghini - New In stock
    hex. nut (N 01100632) Genuine Porsche Part - New (to order)
    # 021
    MPN: 009444205
    SCREW
    VITE FINE CORSA
    from £15.47
    from £15.47
    HEADLIGHT RUBBER PIN Genuine Lamborghini - New (to order)
    # 022
    MPN: 009444204
    CABLE
    CAVO
    from £36.15
    from £36.15
    HEADLIGHT BOWDEN WIRE Genuine Lamborghini - New (to order)
    # 023
    MPN: 009460213
    SCREW
    VITE REGISTRO
    SCREW Genuine Lamborghini - New (to order)
    # 024
    MPN: 009444127
    SUPPORT
    SUPPORTO ESTERNO PALPEBRA SX
    from £25.83
    from £25.83
    LEFT HEADLIGHT SUPPORT RIGHT BRACKET Genuine Lamborghini - New (to order)
    # 024
    MPN: 009444129
    SUPPORT
    SUPPORTO ESTERNO PALPEBRA DX
    from £25.83
    from £25.83
    RIGHT HEADLIGHT SUPPORT LEFT B RACKET Genuine Lamborghini - New (to order)
    # 025
    MPN: 009444135
    SHIM
    SPESSORE
    from £6.22
    from £6.22
    RH/LH HEADLIGHT BOX BRAC. SHIM Genuine Lamborghini - New (to order)
    # 026
    MPN: 009444134
    SHIM
    SPESSORE
    from £11.45
    from £11.45
    RH/LH HEADLIGHT BOX BRAC. SHIM Genuine Lamborghini - New (to order)
    # 027
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.54
    from £0.54
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 028
    MPN: N10158604
    SCREW
    VITE
    from £16.26
    from £16.26
    HEXAGON FLANGE Genuine Lamborghini - New (to order)
