9458.01.02 - Passenger Compartment Trim (Valid for June 1992 Version)

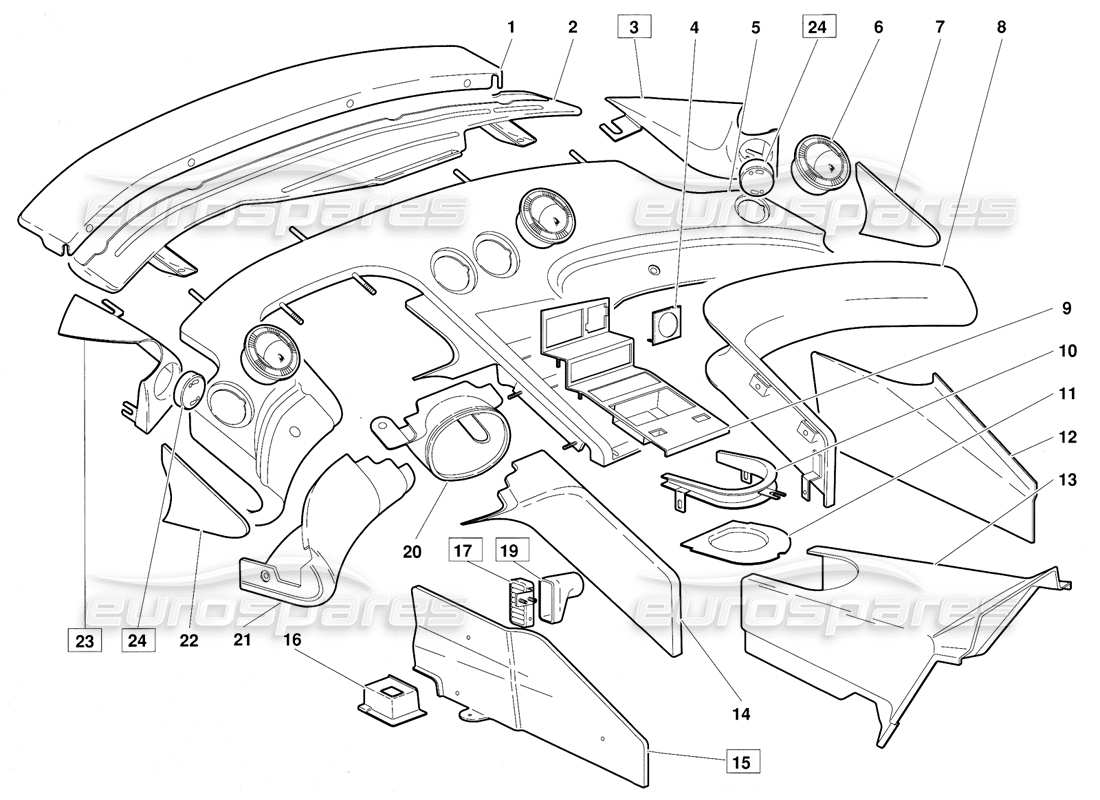

Lamborghini Diablo (1991) Passenger Compartment Trim (Valid for June 1992 Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009414305
PANEL
(Valid for June 1992 version) PANNELLO SOTTO PARABREZZA
from £192.39
from £192.39
# 002
MPN: 009414019
CONVEYOR
(Valid for June 1992 version) CONVOGLIATORE ARIA PARABREZZA
from £1,575.31
from £1,575.31
# 003
MPN: 009414310
PANEL
(Valid for June 1992 version) PANNELLO TWEETER DX (fino 12774)
from £184.89
from £184.89
# 003
MPN: 009414333
PANEL
(Valid for June 1992 version) PANNELLO TWEETER DX (dalla 12775)
from £204.80
from £204.80
# 004
MPN: 009414103
SUPPORT
(Valid for June 1992 version) SUPPORTO OROLOGIO VDO
from £253.72
from £253.72
# 005
MPN: 009414100
DASH/PANEL
(Valid for June 1992 version) CRUSCOTTO
from £1,128.37
from £1,128.37
# 006
MPN: 009414507
AIR VENT
(Valid for June 1992 version) BOCCHETTONE USCITA ARIA
from £20.20
from £20.20
# 007
MPN: 009414306
PANEL
(Valid for June 1992 version) ANNELLO CHIUSURA LATERALE
from £90.79
from £90.79
# 008
MPN: 009414302
PANEL
(Valid for June 1992 version) PANNELLO FRONTALE
from £357.11
from £357.11
# 009
MPN: 009414102
PANEL
(Valid for June 1992 version) PLANCIA CENTRALE
from £325.84
from £325.84
# 010
MPN: 009458424
Frame
(Valid for June 1992 version) CORNICE
from £217.23
from £217.23
# 011
MPN: 009458423
PLATE
(Valid for June 1992 version) PIASTRA
from £15.01
from £15.01
# 012
MPN: 009414303
SIDE PANEL
(Valid for June 1992 version) FIANCHETTO
from £188.63
from £188.63
# 013
MPN: 009458401
TUNNEL
(Valid for June 1992 version) TUNNEL
# 014
MPN: 009414300
SIDE PANEL
(Valid for June 1992 version) FIANCHETTO SINISTRO
from £581.22
from £581.22
# 015
MPN: 009414331
SIDE PANEL
(Valid for June 1992 version) FIANCHETTO (fino 12405)
from £129.34
from £129.34
# 015
MPN: 009414331
SIDE PANEL
(Valid for June 1992 version) FIANCHETTO (dalla 12406)
from £129.34
from £129.34
# 016
MPN: 009458316
CASE
(Valid for June 1992 version) SCATOLA PEDALE ACCELERATORE
from £77.82
from £77.82
# 017
MPN: 009458361
GRILLE
(Valid for June 1992 version) GRIGLIA (fino 12405)
from £25.58
from £25.58
# 017
MPN: 009458361
GRILLE
(Valid for June 1992 version) GRIGLIA (dalla 12406)
from £25.58
from £25.58
# 018
MPN: 009458335
PANEL
(Valid for June 1992 version) PANNELLO (particolare eliminato)
# 019
MPN: 009458356
UNION
(Valid for June 1992 version) BOCCHETTONE (fino 12405)
from £101.57
from £101.57
# 019
MPN: 009458356
UNION
(Valid for June 1992 version) BOCCHETTONE (dalla 12406)
from £101.57
from £101.57
# 020
MPN: 009414321
COVERING
(Valid for June 1992 version) RIVESTIMENTO PIANTONE
from £431.14
from £431.14
# 021
MPN: 009414301
PANEL
(Valid for June 1992 version) PANNELLO
from £606.12
from £606.12
# 022
MPN: 009414307
SIDE PANEL
(Valid for June 1992 version) PANNELLO CHIUSURA LATERALE
from £90.79
from £90.79
# 023
MPN: 009414311
PANEL
(Valid for June 1992 version) PANNELLO TWEETER SX (fino 12774)
from £184.89
from £184.89
# 023
MPN: 009414334
PANEL
(Valid for June 1992 version) PANNELLO TWEETER SX (dalla 12775)
from £204.80
from £204.80
# 024
MPN: 009414335
TWEETER SUPPORT
(Valid for June 1992 version) SUPPORTO TWEETER (dalla 12775)
from £12.85
from £12.85
