lamborghini diablo (1991) bumpers parts diagram

9463.01.00 - Bumpers

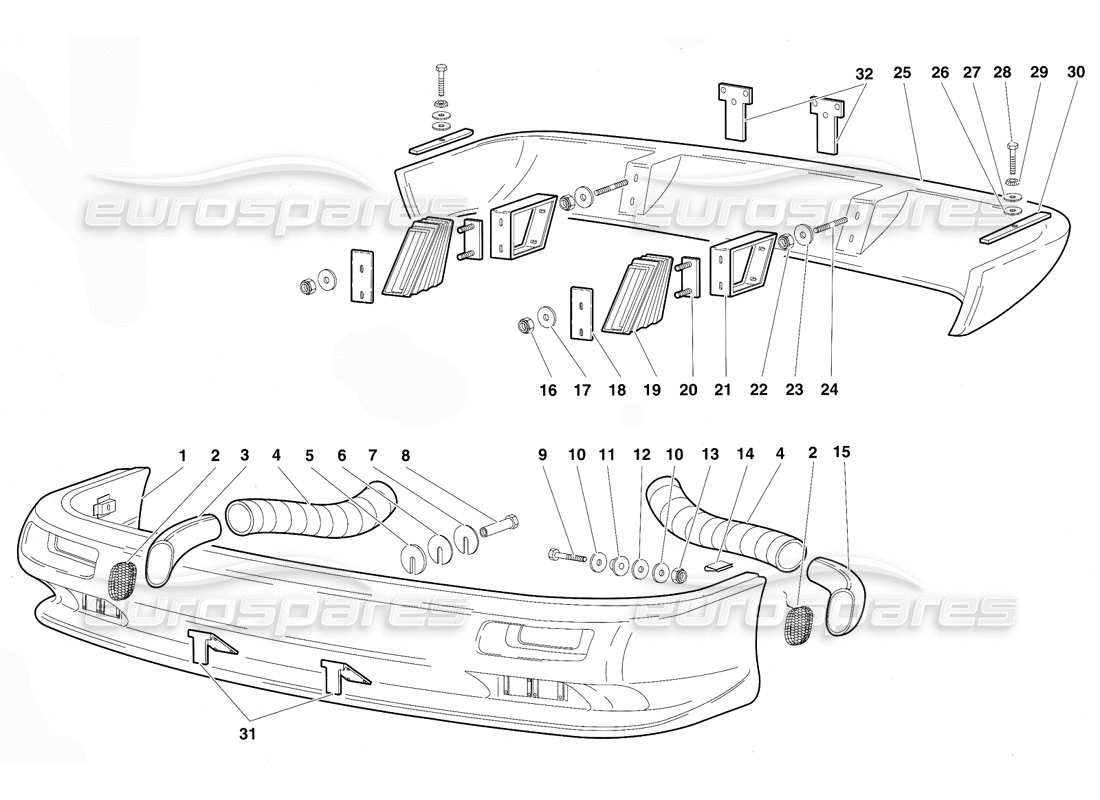

Lamborghini Diablo (1991) Bumpers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 009463004
    FRONT BUMPER
    PARAURTI ANTERIORE
    from £7,712.61
    from £7,712.61
    FRONT BUMPER ASSEMBLY Genuine Lamborghini - New (to order)
    # 002
    MPN: 009430128
    NET
    RETINA
    from £38.83
    from £38.83
    NET ON REAR LH/RH AIR INTAKE Genuine Lamborghini - New (to order)
    # 003
    MPN: 009453108
    AIR INTAKE
    PRESA D'ARIA DESTRA
    from £160.44
    from £160.44
    SPOILER AIR INTAKE RH VENT Genuine Lamborghini - New (to order)
    # 004
    MPN: 009453109
    PIPE
    Tubo
    from £56.21
    from £56.21
    FRONT BRAKE AIR DELIVERY PIPE Genuine Lamborghini - New (to order)
    # 005
    MPN: 410807255
    SHIM
    SPESSORE Dl REGISTRO
    from £92.95
    from £92.95
    REAR BUMP.ADJUSTMENTSHIM Genuine Lamborghini - New (to order)
    # 006
    MPN: 007063145
    SHIM
    use : 410807567
    from £5.93
    from £5.93
    SHIM Genuine Lamborghini - New In stock
    # 007
    MPN: 009463115
    SHIM
    SPESSORE Dl REGISTRO
    from £16.17
    from £16.17
    BUMPER ADJUSTMENT SHIM Genuine Lamborghini - New (to order)
    # 008
    MPN: 009463117
    SCREW
    VITE
    from £29.36
    from £29.36
    FRONT BUMPER FASTENING NUT SCR EW Genuine Lamborghini - New (to order)
    # 009
    MPN: 008100832
    SCREW
    from £1.67
    from £1.67
    SCREW M8X1X35UNI 5738/8G/Z Genuine Lamborghini - New (to order)
    # 010
    MPN: WHT001942
    WASHER
    RONDELLA
    from £2.06
    from £2.06
    WASHER Genuine Lamborghini - New In stock
    # 011
    MPN: 009463109
    SPACER
    DISTANZIALE
    from £27.16
    from £27.16
    FRONT BUMPER SLIDE WHEEL Genuine Lamborghini - New (to order)
    # 012
    MPN: 009463110
    WASHER
    RONDELLA
    from £8.56
    from £8.56
    FRONT BUMPER SIDE INNER SPACER Genuine Lamborghini - New (to order)
    # 013
    MPN: 008200809
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 014
    MPN: 008220506
    CLIP
    MOLLETTA
    from £26.78
    from £26.78
    SPRING Genuine Lamborghini - New (to order)
    # 015
    MPN: 009453115
    AIR INTAKE
    PRESA D'ARIA SINISTRA
    from £160.44
    from £160.44
    SPOILER AIR INTAKE LH VENT Genuine Lamborghini - New (to order)
    # 016
    MPN: N0111849
    NUT
    DADO
    from £1.39
    from £1.39
    This part replaces part number 008200809
    HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
    # 017
    MPN: WHT001942
    WASHER
    RONDELLA
    from £2.06
    from £2.06
    WASHER Genuine Lamborghini - New In stock
    # 018
    MPN: 009463220
    PLATE
    PIASTRA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 019
    MPN: 009463204
    SHIELD
    SOFFIETTO
    from £136.61
    from £136.61
    REAR BUMPER ATTACHMENT BELLOWS Genuine Lamborghini - New In stock
    # 020
    MPN: 009463209
    PLATE
    PIASTRA
    from £7.13
    from £7.13
    REAR BUMPER MOUNT PLATE Genuine Lamborghini - New (to order)
    # 021
    MPN: 009463208
    SUPPORT
    SUPPORTO
    from £141.81
    from £141.81
    REAR BUMPER SUPPORT Genuine Lamborghini - New In stock
    # 022
    MPN: 008200809
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 023
    MPN: N90179103
    WASHER
    RONDELLA
    from £0.98
    from £0.98
    This part replaces part number 008400801
    WASHER Genuine Lamborghini - New (to order)
    # 024
    MPN: 008300820
    STUD
    PRIGIONIERO
    from £1.43
    from £1.43
    STUD M8X25 UNI 5911 8G ZD Genuine Lamborghini - New (to order)
    # 025
    MPN: 009463005
    REAR BUMPER
    PARAURTI POSTERIORE
    from £6,873.32
    from £6,873.32
    REAR BUMPER ASSEMBLY Genuine Lamborghini - New (to order)
    # 026
    MPN: 009463110
    SPACER
    DISTANZIALE
    from £8.56
    from £8.56
    FRONT BUMPER SIDE INNER SPACER Genuine Lamborghini - New (to order)
    # 027
    MPN: WHT001942
    WASHER
    RONDELLA
    from £2.18
    from £2.18
    WASHER Genuine Lamborghini - New In stock
    # 028
    MPN: 008100831
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW M8X30 UNI 5737/8G/Z Genuine Lamborghini - New (to order)
    # 029
    MPN: 008410816
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    WASHER 3X8.4X0.4 DIN6798 C72 Genuine Lamborghini - New In stock
    # 030
    MPN: 009463207
    SPACER
    DISTANZIALE
    from £77.44
    from £77.44
    BUMPER/REAR FENDER SHIM Genuine Lamborghini - New (to order)
    # 031
    MPN: 009466111
    LIC. PLATE SUPPORT
    PORTATARGA ANTERIORE
    from £100.73
    from £100.73
    FRONT NUMBER PLATE BRACKET Genuine Lamborghini - New (to order)
    # 032
    MPN: 009466112
    LIC. PLATE SUPPORT
    PORTATARGA POSTERIORE
    from £127.54
    from £127.54
    REAR NUMBER PLATE BRACKET Genuine Lamborghini - New In stock
