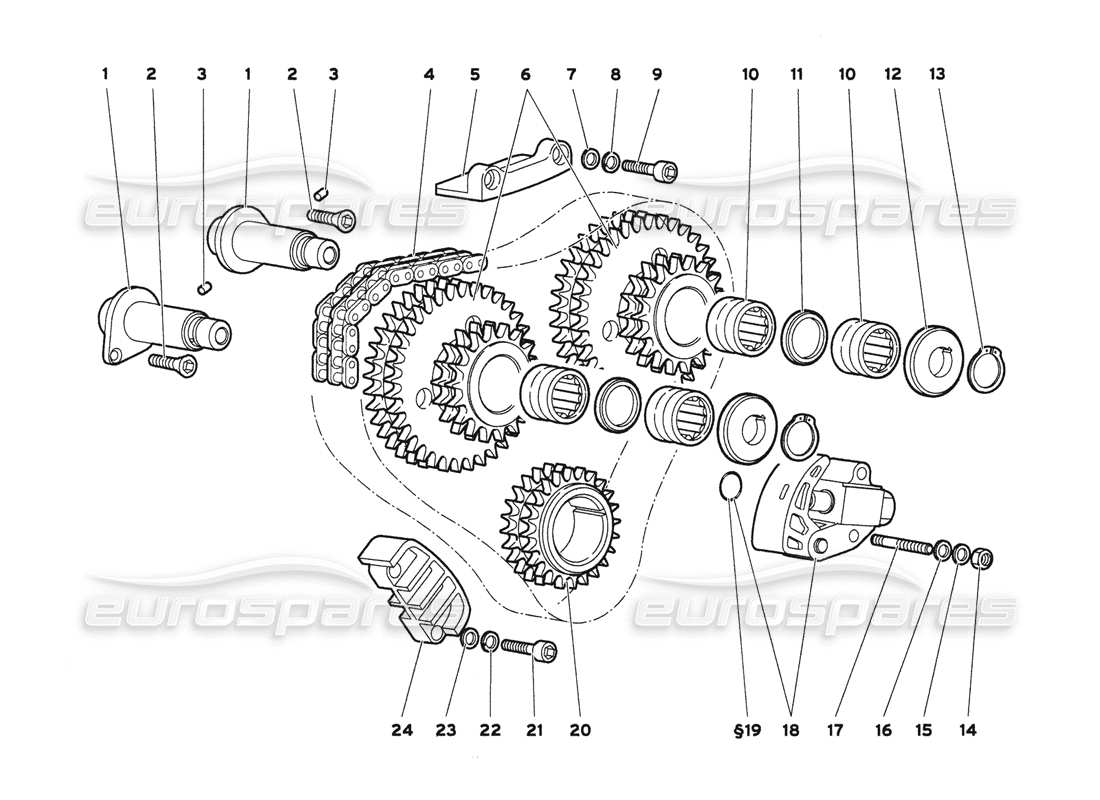

12.02.00 - timing system
Lamborghini Diablo 6.0 (2001) Timing System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001232199
SPINDLE
# 002
MPN: 008700638
SCREW
Supersession
Supersession
# 003
MPN: 008850302
PIN
# 004
MPN: 0012001137
LOWER TIMING CHAIN
Supersession
Supersession
# 005
MPN: 07M109201
GUIDE
from £43.84
from £43.84
# 006
MPN: 07M109569
GEAR
from £1,033.25
from £1,033.25
# 007
MPN: 001231040
WASHER
# 008
MPN: 008410820
WASHER
Supersession
Supersession
# 009
MPN: 008700850
SCREW
# 010
MPN: 008522508
BEARING
# 011
MPN: 07M109135
SPACER
from £131.00
from £131.00
# 012
MPN: 0012004032
RETAINING WASHER
# 013
MPN: WHT002646
RETAINING RJNG
from £0.73
from £0.73
# 014
MPN: 008200604
NUT
Supersession
Supersession
# 015
MPN: 008410602
WASHER
from £28.66
from £28.66
# 016
MPN: 008400606
WASHER
Supersession
Supersession
# 017
MPN: 008300660
STUD
from £8.65
from £8.65
# 018
MPN: 07M109077A
CHAIN STRETCHER WITH SEAL
from £494.58
from £494.58
# 019
MPN: 008601501
SEAL
(Included in the engine gasket kit)
from £3.65
from £3.65
# 020
MPN: 001232196
TIMING SYSTEM CONTROL GEAR
from £91.20
from £91.20
# 021
MPN: 008700848
SCREW
# 022
MPN: 008410820
WASHER
Supersession
Supersession
# 023
MPN: 008400816
WASHER
Supersession
Supersession
# 024
MPN: 07M109203
GUIDE
from £1,232.12
from £1,232.12
