17.01.00 - WATER PUMP

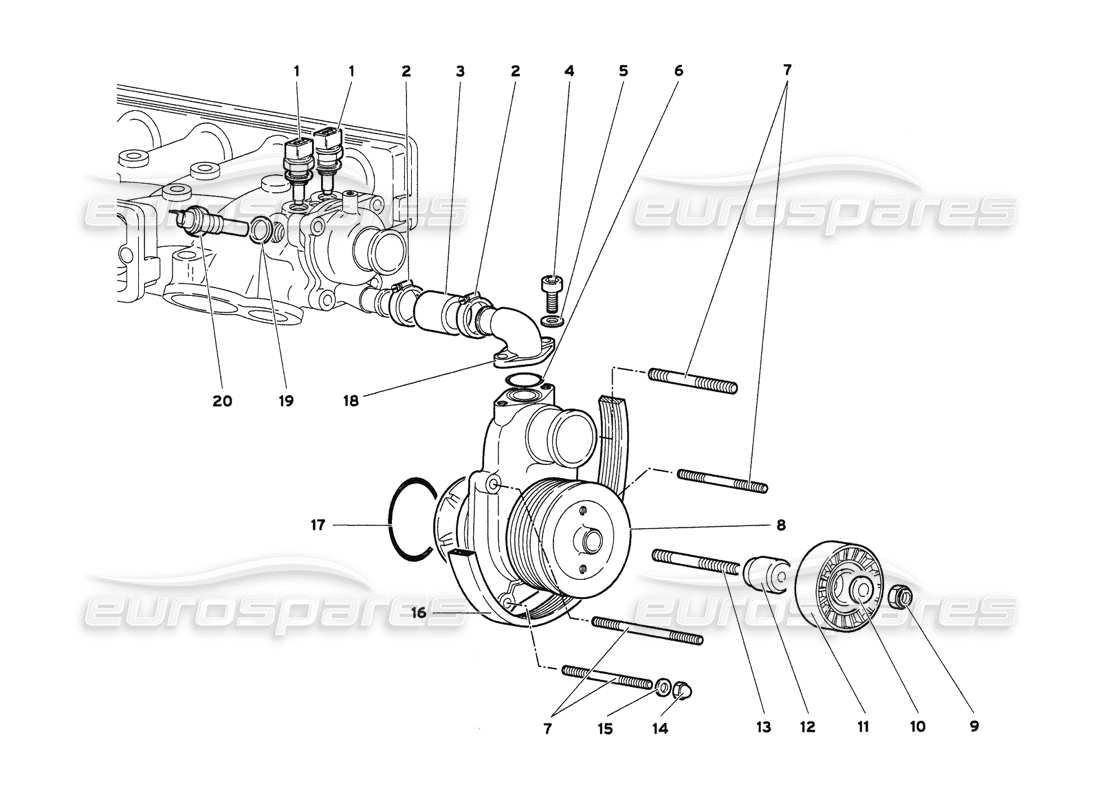

Lamborghini Diablo 6.0 (2001) Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07L919501A
WATER TEMPERATURE SENSOR
from £116.28
from £116.28
This part replaces part number 002024394 - and 1 more. Click to view details
# 002
MPN: 008832604
CLAMP
from £2.27
from £2.27
# 003
MPN: 001732811
HOSE
from £15.88
from £15.88
# 004
MPN: 008700627
SCREW
Supersession
Supersession
# 005
MPN: 008410602
WASHER
from £28.28
from £28.28
# 006
MPN: WHT003062
SEAL
from £3.98
from £3.98
This part replaces part number 008602802
# 007
MPN: 008301034
STUD
from £3.65
from £3.65
# 008
MPN: 0017001862
WATER PUMP
from £2,304.28
from £2,304.28
# 009
MPN: 008201008
NUT
from £0.57
from £0.57
# 010
MPN: 008401006
WASHER
from £0.54
from £0.54
# 011
MPN: 07M109565
PULLEY
from £536.20
from £536.20
# 012
MPN: 001237082
BUSHING
from £147.00
from £147.00
# 013
MPN: 008301034
STUD
from £3.65
from £3.65
# 014
MPN: 008200809
NUT
Supersession
Supersession
# 015
MPN: 008400816
WASHER
Supersession
Supersession
# 016
MPN: 0014004297
WATER PUMP AND ALTERNATOR BELT
from £131.42
from £131.42
# 017
MPN: WHT003018
SEAL
(Included in the engine gasket kit)
from £53.01
from £53.01
This part replaces part number 008609907
# 018
MPN: 001732803
UNION
from £208.10
from £208.10
# 019
MPN: 008401425
WASHER
Supersession
Supersession
# 020
MPN: 001724221
THERMOCOUPLE
from £79.90
from £79.90
