17.03.00 - Radiators and Electric Fans

Lamborghini Diablo 6.0 (2001) Radiators and Electric Fans Parts Diagram

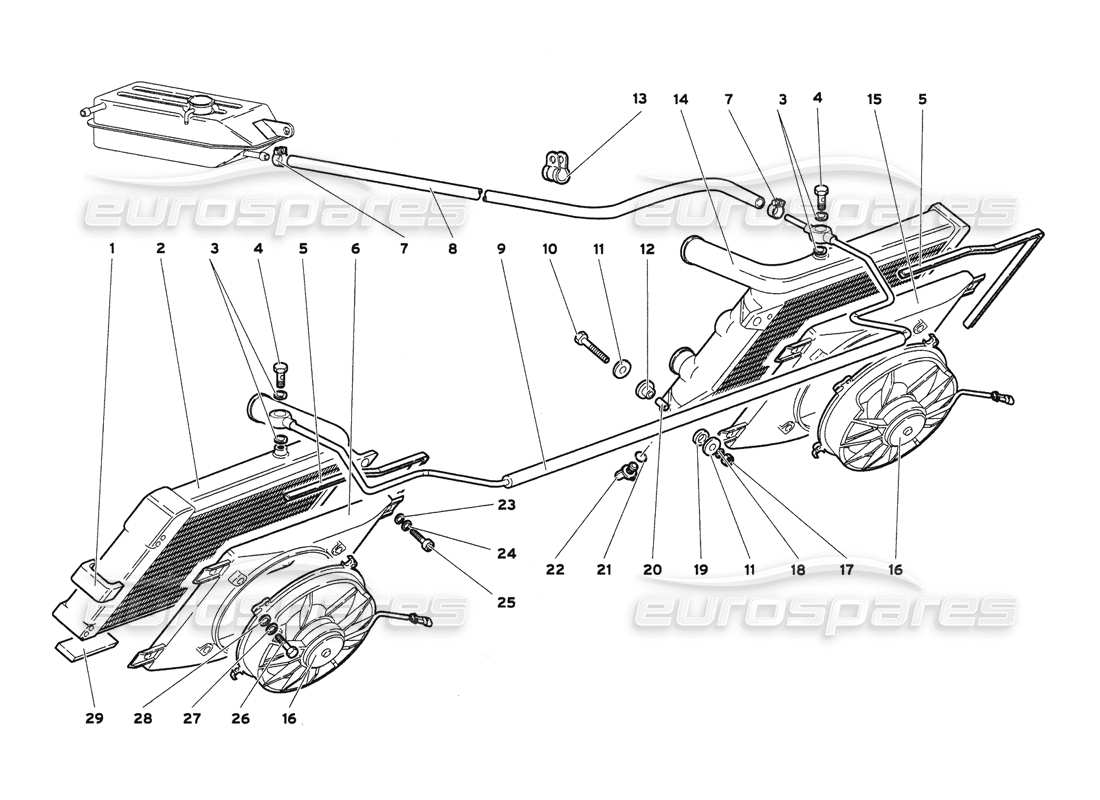

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 001733004
                                                        PROTECTON
                                                        from £13.61
                                                        from £13.61
                                                        # 002
                                                        MPN: 001735035
                                                        LH RADIATOR
                                                        from £1,319.66
                                                        from £1,319.66
                                                        # 003
                                                        MPN: 008400818
                                                        WASHER
                                                        (Includes the engine gasket kit & cover gasket kit)
                                                        Supersession
                                                        Supersession
                                                        # 004
                                                        MPN: WHT000524
                                                        VENT SCREW
                                                        from £14.96
                                                        from £14.96
                                                        This part replaces part number 001733423
                                                        # 005
                                                        MPN: 410121539
                                                        GASKET
                                                        from £35.11
                                                        from £35.11
                                                        # 006
                                                        MPN: 410121333
                                                        LH CONVEYOR
                                                        Supersession
                                                        Supersession
                                                        # 007
                                                        MPN: 008830817
                                                        CLAMP
                                                        Supersession
                                                        Supersession
                                                        # 008
                                                        MPN: 001735264
                                                        PIPE
                                                        from £10.49
                                                        from £10.49
                                                        # 009
                                                        MPN: 0017006959
                                                        VENT PIPE
                                                        from £521.51
                                                        from £521.51
                                                        This part replaces part number 001738038
                                                        # 010
                                                        MPN: 008100824
                                                        SCREW
                                                        from £0.89
                                                        from £0.89
                                                        # 011
                                                        MPN: WHT001942
                                                        WASHER
                                                        from £2.06
                                                        from £2.06
                                                        # 012
                                                        MPN: 001733266
                                                        RUBBER BUSHING
                                                        from £4.20
                                                        from £4.20
                                                        # 013
                                                        MPN: 008831515
                                                        CLAMP
                                                        from £5.63
                                                        from £5.63
                                                        # 014
                                                        MPN: 001735034
                                                        RH RADIATOR
                                                        from £1,319.66
                                                        from £1,319.66
                                                        # 015
                                                        MPN: 410121334A
                                                        RH CONVEYOR
                                                        CONVOGLIATORE DESTRO
                                                        from £535.00
                                                        from £535.00
                                                        # 016
                                                        MPN: 0017017063
                                                        ELECTRIC FAN
                                                        from £225.53
                                                        from £225.53
                                                        This part replaces part number 001734039
                                                        # 017
                                                        MPN: N0111849
                                                        NUT
                                                        from £1.39
                                                        from £1.39
                                                        This part replaces part number 008200809
                                                        # 018
                                                        MPN: N90179103
                                                        WASHER
                                                        from £0.98
                                                        from £0.98
                                                        This part replaces part number 008400801
                                                        # 019
                                                        MPN: WHT001189
                                                        RUBBER RING
                                                        from £2.38
                                                        from £2.38
                                                        This part replaces part number 001707163
                                                        # 020
                                                        MPN: 001733267
                                                        BUSHING
                                                        from £7.26
                                                        from £7.26
                                                        # 021
                                                        MPN: 008600906
                                                        SEAL
                                                        Supersession
                                                        Supersession
                                                        # 022
                                                        MPN: 410121299
                                                        PLUG
                                                        from £140.51
                                                        from £140.51
                                                        # 023
                                                        MPN: WHT002961
                                                        WASHER
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 008400607
                                                        # 024
                                                        MPN: 008410612
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 025
                                                        MPN: 008700644
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        # 026
                                                        MPN: 008100502
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        # 027
                                                        MPN: 008410502
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 028
                                                        MPN: WHT003040
                                                        WASHER
                                                        from £4.55
                                                        from £4.55
                                                        # 029
                                                        MPN: 001731451
                                                        PROTECTION
                                                        from £9.25
                                                        from £9.25
