18.01.00 - crankcase

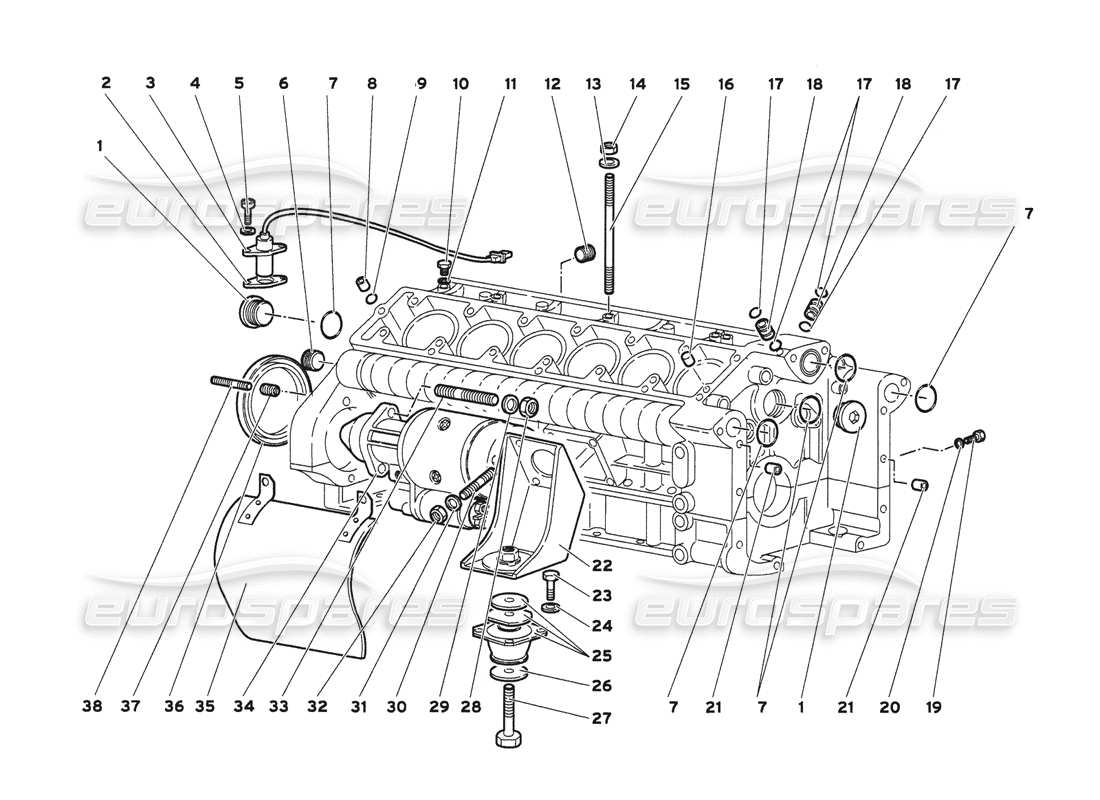

Lamborghini Diablo 6.0 (2001) Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: M00Y1L522
ENGINE - EXCHANGE
# 001
MPN: 001830023
PLUG
Supersession
Supersession
# 002
MPN: 07M103899
0.2 MM SHIM
from £3.34
from £3.34
# 003
MPN: 07M905381
TIMING SENSOR
(replaces: 001625411)
from £393.41
from £393.41
This part replaces part number 001628403
# 003
MPN: 07M905381
TIMING SENSOR
from £393.41
from £393.41
This part replaces part number 001628403
# 004
MPN: 008410503
WASHER
Supersession
Supersession
# 005
MPN: 008700512
SCREW
Supersession
Supersession
# 006
MPN: 008933503
PLUG
# 007
MPN: 008603503
SEAL
(Included in the engine gasket kit)
from £2.61
from £2.61
This part replaces part number 008603501
# 008
MPN: 001832161
DOWEL
from £242.94
from £242.94
# 009
MPN: 008601106
SEAL
(Included in the engine gasket kit)
# 010
MPN: 008101402
PLUG
from £18.20
from £18.20
# 011
MPN: 008401425
WASHER
(Included in the engine gasket kit)
Supersession
Supersession
# 012
MPN: 008931209
PLUG
# 013
MPN: N90179103
WASHER
from £1.04
from £1.04
This part replaces part number 008400801
# 014
MPN: 008200809
NUT
Supersession
Supersession
# 015
MPN: 008300891
STUD
from £9.47
from £9.47
# 016
MPN: 008850821
DOWEL
# 017
MPN: 008600705
SEAL
(Included in the engine gasket kit)
# 018
MPN: 001833995
DOWEL
from £20.15
from £20.15
# 019
MPN: 008700644
SCREW
Supersession
Supersession
# 020
MPN: WHT003041
WASHER
from £0.54
from £0.54
This part replaces part number 008400609 - and 1 more. Click to view details
# 021
MPN: 008851304
DOWEL
from £39.64
from £39.64
# 022
MPN: 001835941
SUPPORT
from £195.68
from £195.68
# 023
MPN: 008101031
SCREW
Supersession
Supersession
# 024
MPN: 008411014
WASHER
from £0.51
from £0.51
# 025
MPN: 400199703A
FLEXIBLE SUPPORT
from £256.80
from £256.80
This part replaces part number 400199703
# 026
MPN: 001831606
WASHER
Supersession
Supersession
# 027
MPN: 004131471
SCREW
from £21.18
from £21.18
# 028
MPN: 001832869
NUT
# 029
MPN: 008411302
WASHER
Supersession
Supersession
# 030
MPN: 008300814
STUD
from £4.15
from £4.15
# 031
MPN: 008410806
WASHER
Supersession
Supersession
# 032
MPN: N01100845
NUT
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 033
MPN: 008301249
STUD
from £9.63
from £9.63
# 034
MPN: 07M911023
STARTER MOTOR
from £3,951.42
from £3,951.42
# 035
MPN: 001635959
SHIELD
from £405.17
from £405.17
# 036
MPN: 07M103089
SEAL
from £134.88
from £134.88
# 037
MPN: 008210873
BUSHING
# 038
MPN: WHT003028
STUD
from £12.54
from £12.54
