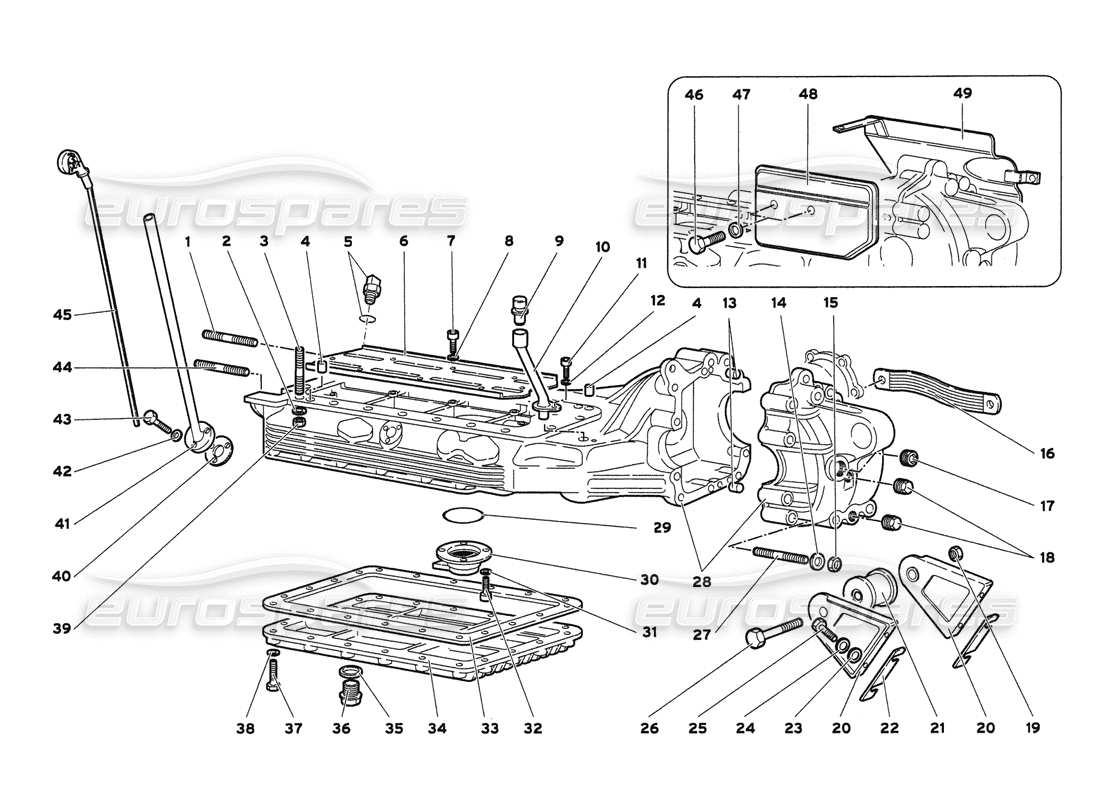

18.03.00 - oil sump
Lamborghini Diablo 6.0 (2001) Oil Sump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: WHT003028
STUD
from £12.81
from £12.81
# 002
MPN: 008410810
WASHER
Supersession
Supersession
# 003
MPN: 008300806
70 MM STUD
from £3.61
from £3.61
# 003
MPN: 008300897
106 MM STUD
from £9.55
from £9.55
# 003
MPN: WHT003031
28 MM STUD
from £5.95
from £5.95
This part replaces part number 008300839
# 004
MPN: 008850806
DOWEL
Supersession
Supersession
# 005
MPN: 07L919501A
SENSOR
from £215.56
from £215.56
This part replaces part number 002024394
# 006
MPN: 001827775
SPLASH BAFFLE
from £54.80
from £54.80
# 007
MPN: 008700644
SCREW
Supersession
Supersession
# 008
MPN: 008410602
WASHER
from £28.03
from £28.03
# 009
MPN: 0B9507141
VENT PIPE
from £42.65
from £42.65
# 010
MPN: 0023001636
PIPE
from £56.25
from £56.25
# 011
MPN: 008700547
SCREW
from £0.51
from £0.51
# 012
MPN: 008410503
WASHER
Supersession
Supersession
# 013
MPN: 008850806
DOWEL
Supersession
Supersession
# 014
MPN: WHT000768
WASHER
from £1.17
from £1.17
This part replaces part number 008410806 - and 1 more. Click to view details
# 015
MPN: N10155210
NUT
from £1.26
from £1.26
This part replaces part number 008201001
# 016
MPN: 001604328
GROUND CABLE
Supersession
Supersession
# 017
MPN: 008932602
PLUG
from £2.24
from £2.24
# 018
MPN: 086301141A
MAGNETIC PLUG
from £22.95
from £22.95
This part replaces part number TN-03165
# 019
MPN: 008201416
NUT
from £1.25
from £1.25
# 020
MPN: 004126765
BRACKET
from £175.73
from £175.73
# 021
MPN: 0B9501144
SUPPORT MOUNT
from £147.80
from £147.80
This part replaces part number 008921408 - and 1 more. Click to view details
# 022
MPN: 004126766
SHIM
# 023
MPN: N90179103
WASHER
from £1.03
from £1.03
This part replaces part number 008400801
# 024
MPN: 008410806
WASHER
Supersession
Supersession
# 025
MPN: 008100862
SCREW
from £0.53
from £0.53
# 026
MPN: 008101430
SCREW
from £2.24
from £2.24
# 027
MPN: 0018001643
STUD
from £8.26
from £8.26
# 028
MPN: 450132002
oil sump
from £6,144.78
from £6,144.78
This part replaces part number 453400100
# 029
MPN: 008609302
SEAL
(Included in the engine gasket kit)
# 030
MPN: 001832017
FLANGE
from £209.75
from £209.75
# 031
MPN: 008410602
WASHER
from £28.81
from £28.81
# 032
MPN: 008700644
SCREW
Supersession
Supersession
# 033
MPN: 0018006617
GASKET
(Included in the engine gasket kit)
from £66.76
from £66.76
# 034
MPN: 001831852
LOWER COVER
from £477.30
from £477.30
# 035
MPN: 008402202
WASHER
(Included in the engine gasket kit)
from £2.75
from £2.75
# 036
MPN: 008932211
DRAIN PLUG
from £14.83
from £14.83
This part replaces part number 008932206
# 037
MPN: 008100603
SCREW
from £0.89
from £0.89
# 038
MPN: 008410602
WASHER
from £25.72
from £25.72
# 039
MPN: N01100845
NUT
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 040
MPN: 0018006616
GASKET
(Included in the engine gasket kit)
from £3.40
from £3.40
# 041
MPN: 001837263
DIPSTICK TUBE
from £66.52
from £66.52
# 042
MPN: 008410602
WASHER
from £29.00
from £29.00
# 043
MPN: 008100601
SCREW
Supersession
Supersession
# 044
MPN: 008300808
STUD
use : WHT003027
Supersession
Supersession
# 045
MPN: 001837261
oil dipstick
from £199.31
from £199.31
# 046
MPN: 008100830
SCREW
Supersession
Supersession
# 047
MPN: N90179103
WASHER
from £1.09
from £1.09
This part replaces part number 008400801
# 048
MPN: 001836047
PLATE
from £258.05
from £258.05
# 049
MPN: 001836048
PLATE
from £258.05
from £258.05
