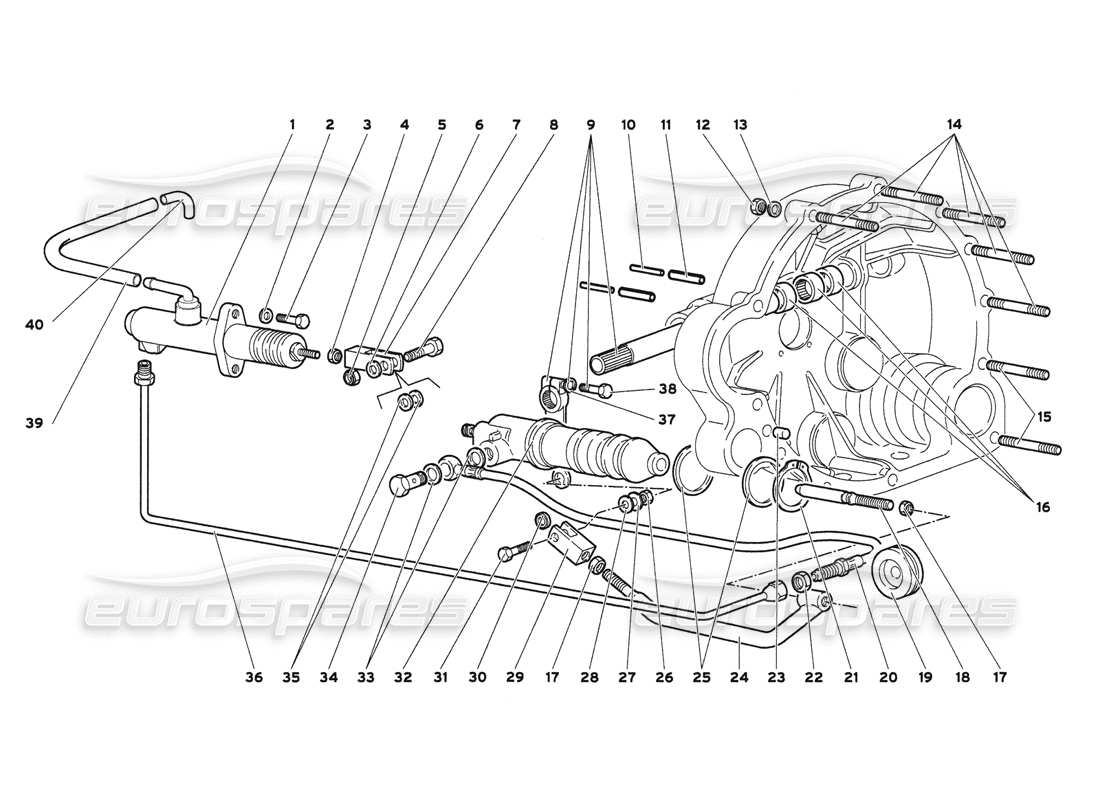

21.02.00 - Clutch Controls Levers
Lamborghini Diablo 6.0 (2001) Clutch Controls Levers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0042004758
Clutch Pump
from £438.38
from £438.38
# 002
MPN: 008410806
WASHER
Supersession
Supersession
# 003
MPN: 008100830
SCREW
from £0.53
from £0.53
# 004
MPN: 008200811
NUT
from £3.65
from £3.65
# 005
MPN: N0111849
NUT
from £1.51
from £1.51
This part replaces part number 008200809
# 006
MPN: N90179103
WASHER
from £1.06
from £1.06
This part replaces part number 008400801
# 007
MPN: 004219591
FORK
Supersession
Supersession
# 008
MPN: 002129460
PIN
from £20.39
from £20.39
# 009
MPN: 002134952
SHAFT
from £402.11
from £402.11
# 010
MPN: 008900505
PIN
# 011
MPN: 008900804
PIN
from £1.23
from £1.23
# 012
MPN: N01100845
NUT
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 013
MPN: 008410810
WASHER
Supersession
Supersession
# 014
MPN: 008300808
STUD
use : WHT003027
Supersession
Supersession
# 015
MPN: WHT003028
STUD
from £12.54
from £12.54
# 016
MPN: 008522204
BEARING
from £12.61
from £12.61
# 017
MPN: N10155210
NUT
from £1.32
from £1.32
This part replaces part number 008201001
# 018
MPN: 002134687
ROD
from £508.40
from £508.40
# 019
MPN: 008612804
RUBBER RING
from £3.94
from £3.94
# 020
MPN: 002137394
HOSE
from £119.76
from £119.76
# 021
MPN: 008583701
RETAINER RING
from £0.54
from £0.54
# 022
MPN: 008201216
NUT
Supersession
Supersession
# 023
MPN: 008850806
DOWEL
Supersession
Supersession
# 024
MPN: 002134956
IDLE LEVER
from £1,072.15
from £1,072.15
# 025
MPN: 002129128
SPACER
from £34.51
from £34.51
# 026
MPN: 008200801
NUT
Supersession
Supersession
# 027
MPN: 008410806
WASHER
Supersession
Supersession
# 028
MPN: 008400816
WASHER
Supersession
Supersession
# 029
MPN: 002134957
FORK
from £124.51
from £124.51
# 030
MPN: 004225225
BALL JOINT COUPLING
Supersession
Supersession
# 031
MPN: 008100841
SCREW
Supersession
Supersession
# 032
MPN: 002136948
PUMP CYLINDER
from £59.95
from £59.95
This part replaces part number 002121674
# 033
MPN: WHT003544
WASHER
from £0.53
from £0.53
This part replaces part number 008401201
# 034
MPN: 002134973
SCREW WITH HOLE
from £81.59
from £81.59
# 035
MPN: 008400819
WASHER
Supersession
Supersession
# 036
MPN: 002137085
PIPE
from £105.71
from £105.71
# 036
MPN: 002137532
PIPE
(Valid for GB - March 2001)
from £101.99
from £101.99
# 036
MPN: 002137532
PIPE
(Valid for AUSTRALIA - March 2001)
from £101.99
from £101.99
# 037
MPN: 008410810
WASHER
Supersession
Supersession
# 038
MPN: 008100841
SCREW
Supersession
Supersession
# 039
MPN: 0042003719
PIPE
# 040
MPN: 0042008125
UNION
from £16.72
from £16.72
