![lamborghini diablo 6.0 (2001) rear differential parts diagram](/img/ixMAAES3eX5u5fN2_CIhQgRFVRmiUWiQ7v58rvxxoYrmJwNVjcVIGTsNAw%3D%3D/lamborghini-diablo-6.0-(2001)-part-diagram-23.01.00.webp)

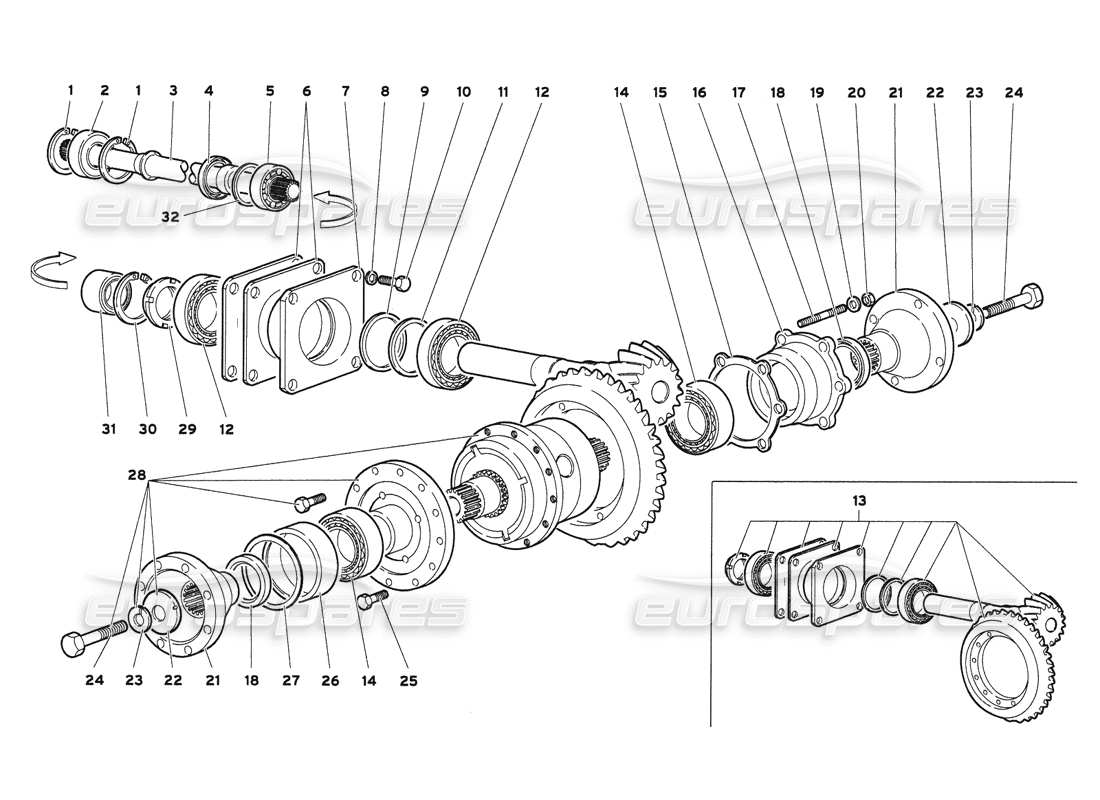

23.01.00 - REAR DIFFERENTIAL
Lamborghini Diablo 6.0 (2001) Rear Differential Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008575501
RETAINER RING
from £0.90
from £0.90
# 002
MPN: 410103520
BEARING
from £42.29
from £42.29
This part replaces part number 008503013
# 003
MPN: 002330969
propeller shaft
from £964.09
from £964.09
# 004
MPN: 008613510
SEAL
from £29.15
from £29.15
This part replaces part number 008613508 which we have in stock
# 005
MPN: 008503010
BEARING
from £13.72
from £13.72
# 006
MPN: 002324939
SHIM
from £25.17
from £25.17
# 007
MPN: 002324938
FLANGE
from £453.94
from £453.94
# 008
MPN: 008410815
WASHER
from £0.53
from £0.53
# 009
MPN: 002330693
0.50 MM SHIM
from £15.47
from £15.47
# 009
MPN: 002330694
0.30 MM SHIM
from £23.00
from £23.00
# 009
MPN: 002330695
0.25 MM SHIM
from £23.00
from £23.00
# 009
MPN: 002330696
0.20 MM SHIM
from £23.00
from £23.00
# 009
MPN: 002330697
0.15 MM SHIM
from £15.47
from £15.47
# 010
MPN: 008100821
SCREW
Supersession
Supersession
# 011
MPN: 002328764
SPACER
from £39.14
from £39.14
# 012
MPN: 008545004
BEARING
from £87.32
from £87.32
# 013
MPN: 002334682
BEVEL SET
from £3,108.39
from £3,108.39
# 014
MPN: 008545002
BEARING
from £289.36
from £289.36
# 015
MPN: 002324942
SHIM
Supersession
Supersession
# 016
MPN: 002324452
BEARING HOLDER FLANGE
from £160.02
from £160.02
# 017
MPN: 008301022
STUD
from £7.55
from £7.55
# 018
MPN: 008614507
SEAL
from £31.31
from £31.31
This part replaces part number 008614509
# 019
MPN: WHT000768
WASHER
from £1.24
from £1.24
This part replaces part number 008410806 - and 1 more. Click to view details
# 020
MPN: N10155210
NUT
from £1.28
from £1.28
This part replaces part number 008201001
# 021
MPN: 002333623
AXLE SHAFT CARRIER FLANGE
from £229.67
from £229.67
# 022
MPN: 002332653
WASHER
from £69.01
from £69.01
# 023
MPN: 002332652
WASHER
from £6.10
from £6.10
# 024
MPN: 002332651
SCREW
from £14.09
from £14.09
# 025
MPN: 002332650
SCREW
from £17.17
from £17.17
# 026
MPN: 002324940
BEARING CASE
from £150.88
from £150.88
# 027
MPN: 002331917
0.50 MM SHIM
from £16.14
from £16.14
# 027
MPN: 002331918
0.30 MM SHIM
from £15.47
from £15.47
# 027
MPN: 002331919
0.25 MM SHIM
from £15.47
from £15.47
# 027
MPN: 002331920
0.20 MM SHIM
from £15.47
from £15.47
# 027
MPN: 002331921
0.15 MM SHIM
from £15.47
from £15.47
# 028
MPN: 002332210
DIFFERENTIAL KIT
Supersession
Supersession
# 029
MPN: 008254503
RING NUT
from £109.38
from £109.38
# 030
MPN: 008575002
RETAINER RING
from £3.48
from £3.48
# 031
MPN: 008524014
BEARING
from £128.52
from £128.52
# 032
MPN: 0023006470
SHIM
from £15.88
from £15.88
