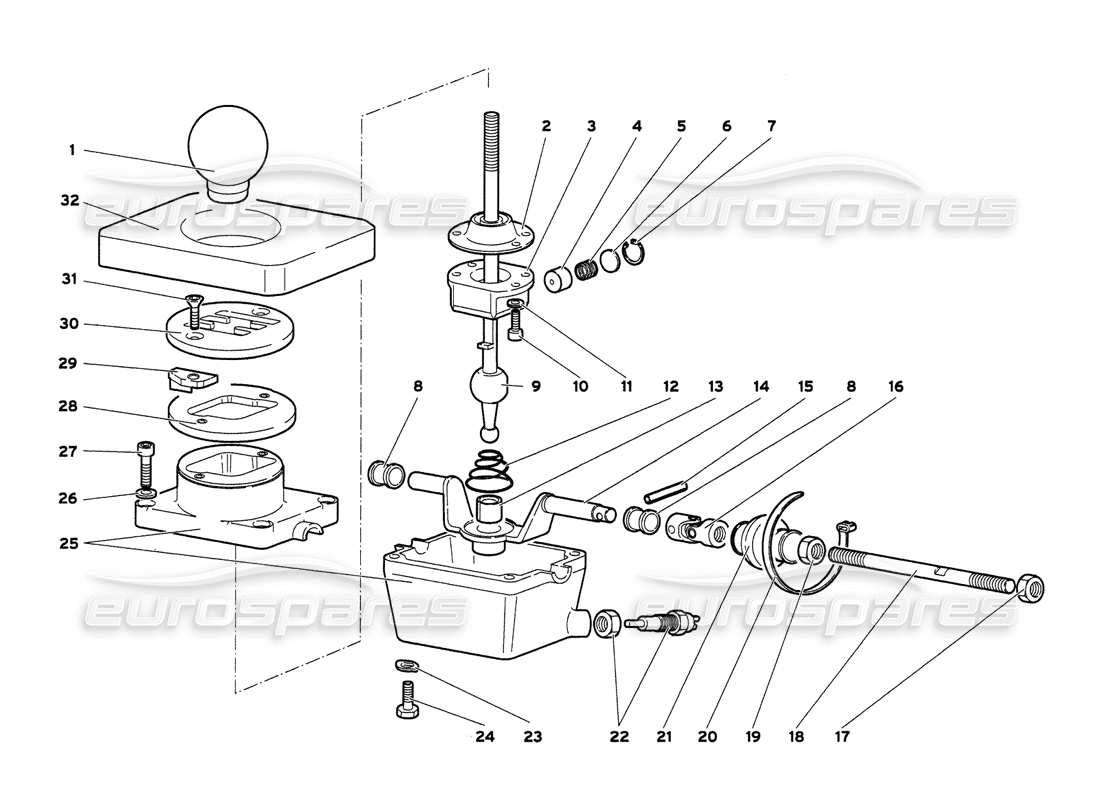

24.01.00 - Gearbox Control Tower
Lamborghini Diablo 6.0 (2001) Gearbox Control Tower Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0024004603
KNOB
from £794.29
from £794.29
# 002
MPN: 002433043
BOOT
from £100.52
from £100.52
# 003
MPN: 002434091
BALL SOCKET
from £151.73
from £151.73
# 004
MPN: 002427202
CYLINDER
from £53.57
from £53.57
# 005
MPN: 002432167
SPRING
from £7.63
from £7.63
# 006
MPN: 002427204
PLATE
from £1.02
from £1.02
# 007
MPN: 008572201
RETAINER RING
from £0.54
from £0.54
# 008
MPN: 002433020
BUSHING
from £20.24
from £20.24
# 009
MPN: 002437666
LEVER
from £781.85
from £781.85
# 010
MPN: 008700644
SCREW
Supersession
Supersession
# 011
MPN: 008410602
WASHER
from £27.52
from £27.52
# 012
MPN: 0024005155
SPRING
from £23.64
from £23.64
# 013
MPN: 002427207
BUSHING
from £202.32
from £202.32
# 014
MPN: 002429161
SHAFT
from £191.95
from £191.95
# 015
MPN: 008900305
PIN
from £0.54
from £0.54
# 016
MPN: 410711615
RH JOINT
from £655.41
from £655.41
# 017
MPN: 008201224
LHNUT
# 018
MPN: 002434472
TIE ROD
from £24.59
from £24.59
# 019
MPN: 008201223
RHNUT
# 020
MPN: 008830305
STRAP
Supersession
Supersession
# 021
MPN: 002434614
BOOT
# 022
MPN: 002408637
REVERSE SWITCH
from £73.80
from £73.80
# 023
MPN: 008410817
WASHER
Supersession
Supersession
# 024
MPN: N01029315
SCREW
from £0.82
from £0.82
# 025
MPN: 240132017
MACHINED CASE
from £772.99
from £772.99
# 026
MPN: 008410820
WASHER
Supersession
Supersession
# 027
MPN: 008700804
SCREW
from £1.03
from £1.03
# 028
MPN: 0024006223
SPACER
from £185.31
from £185.31
# 029
MPN: 002433904
SUPPORT
from £505.76
from £505.76
# 030
MPN: 0024005218
SELECTOR PLATE
from £617.36
from £617.36
# 031
MPN: 008740640
SCREW
from £0.53
from £0.53
# 032
MPN: 002431785
RUBBER SPACER
Supersession
Supersession
