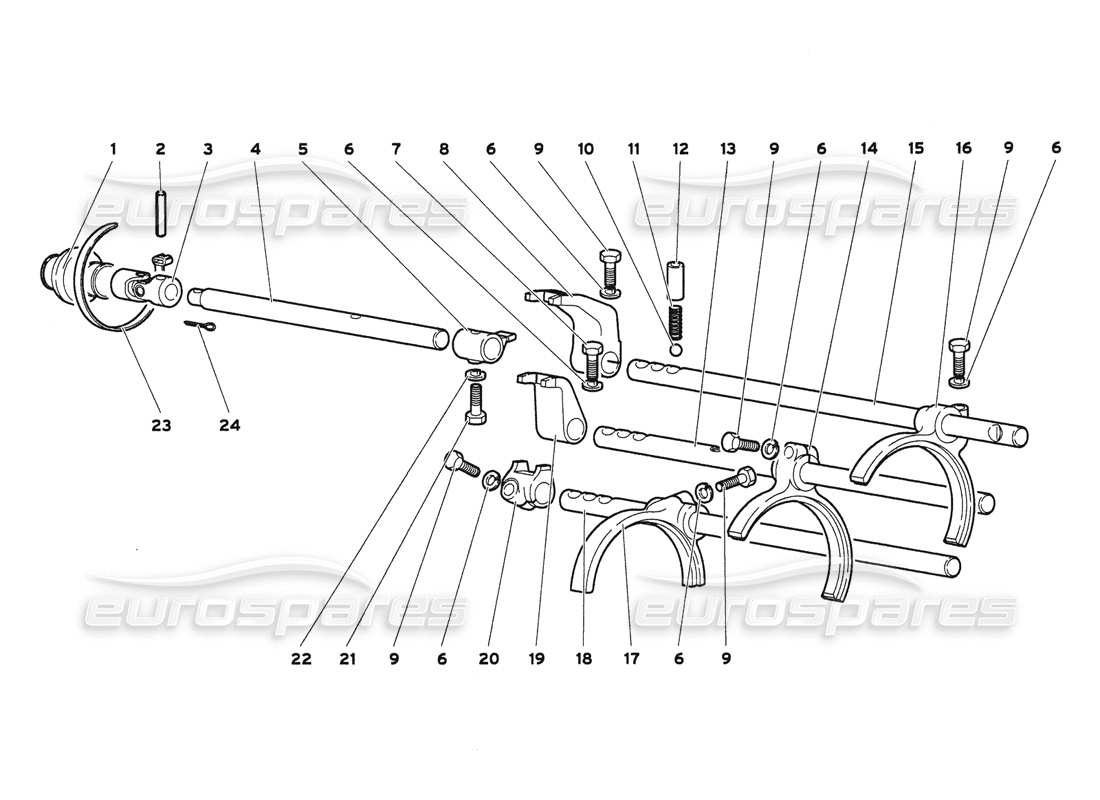

24.02.00 - Gearbox Shifting Rods and forks
Lamborghini Diablo 6.0 (2001) Gearbox Shifting Rods and forks Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002434614
BOOT
# 002
MPN: 008900305
PIN
from £0.54
from £0.54
# 003
MPN: 410711613
LH JOINT
from £495.45
from £495.45
# 004
MPN: 002427211
GEARBOX SHIFTING ROD
from £208.10
from £208.10
# 005
MPN: 002425186
GEAR TOOTHED SELECTOR
from £108.62
from £108.62
# 006
MPN: 008410817
WASHER
Supersession
Supersession
# 007
MPN: 008100878
SCREW
from £0.54
from £0.54
# 008
MPN: 002425189
GEAR SELECTOR
from £131.42
from £131.42
# 009
MPN: 008100821
SCREW
Supersession
Supersession
# 010
MPN: 008910701
BALL
Supersession
Supersession
# 011
MPN: 086311249
SPRING
from £3.07
from £3.07
This part replaces part number 002402242 - and 1 more. Click to view details
# 012
MPN: 002401765
BUSHING
from £10.95
from £10.95
# 013
MPN: 002425230
2ND AND 3RD GEAR SHIFTING ROD
from £131.42
from £131.42
# 014
MPN: 002425191
2ND AND 3RD GEAR FORK
from £334.14
from £334.14
# 015
MPN: 002425229
1ST AND REVERSE GEAR SHIFTING ROD
from £118.16
from £118.16
# 016
MPN: 002425190
1ST AND REVERSE GEAR FORK
from £128.10
from £128.10
# 017
MPN: 002425192
4TH AND 5TH GEAR FORK
from £300.97
from £300.97
# 018
MPN: 002425231
4TH AND 5TH GEAR SHIFTING ROD
from £266.97
from £266.97
# 019
MPN: 002425188
GEAR TOOTHED SELECTOR
from £104.89
from £104.89
# 020
MPN: 002425187
GEAR TOOTHED SELECTOR
from £117.74
from £117.74
# 021
MPN: 008100628
SCREW
Supersession
Supersession
# 022
MPN: 008410602
WASHER
from £28.66
from £28.66
# 023
MPN: 008830305
STRAP
Supersession
Supersession
# 024
MPN: 008900501
PIN
from £3.53
from £3.53
