lamborghini diablo 6.0 (2001) gearbox oil pump parts diagram

24.04.00 - Gearbox Oil Pump

Lamborghini Diablo 6.0 (2001) Gearbox Oil Pump Parts Diagram

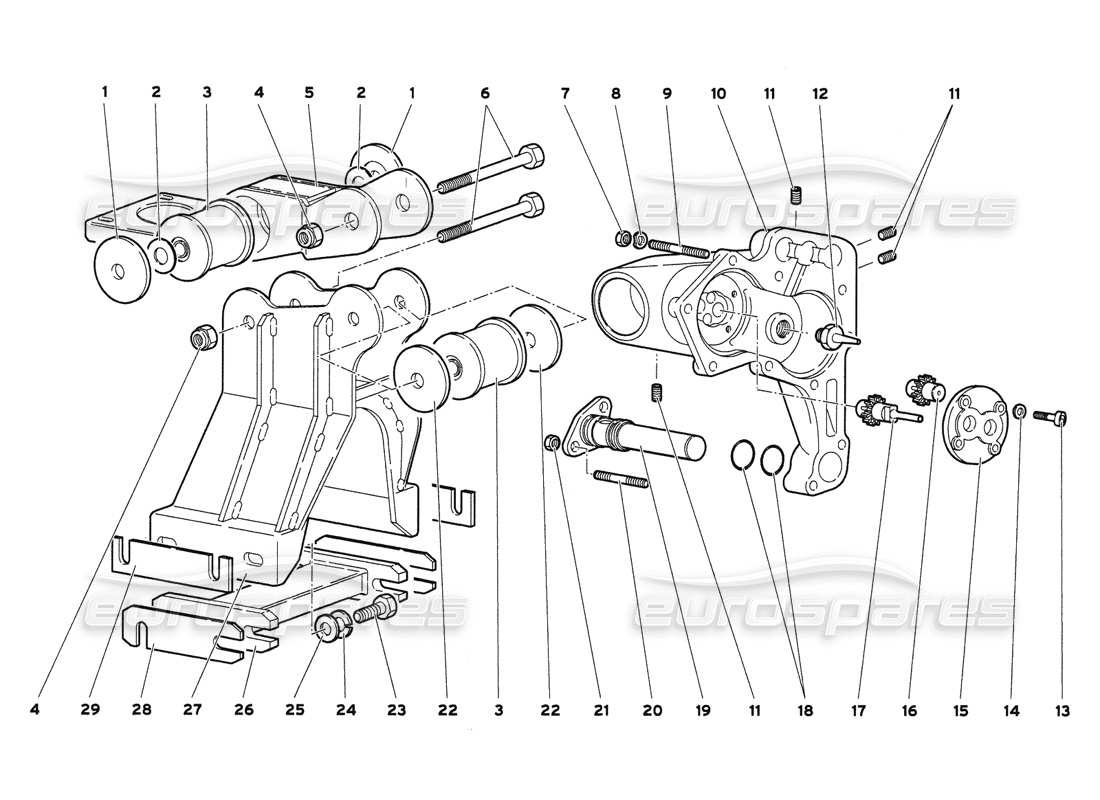

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 002433939
                                                          SPACER
                                                          from £25.50
                                                          from £25.50
                                                          # 002
                                                          MPN: 008401421
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          # 003
                                                          MPN: 0B9501144
                                                          SUPPORT MOUNT
                                                          from £116.24
                                                          from £116.24
                                                          This part replaces part number 008921408 - and 1 more. Click to view details
                                                          # 004
                                                          MPN: 008201414
                                                          NUT
                                                          from £12.98
                                                          from £12.98
                                                          # 005
                                                          MPN: 0024005345
                                                          SUPPORT
                                                          from £293.50
                                                          from £293.50
                                                          # 005
                                                          MPN: 0024007191
                                                          SUPPORT
                                                          (Valid for GB - March 2001)
                                                          from £439.43
                                                          from £439.43
                                                          # 005
                                                          MPN: 0024007191
                                                          SUPPORT
                                                          (Valid for AUSTRALIA - March 2001)
                                                          from £439.43
                                                          from £439.43
                                                          # 006
                                                          MPN: 008101411
                                                          SCREW
                                                          from £4.11
                                                          from £4.11
                                                          # 007
                                                          MPN: 008200801
                                                          NUT
                                                          Supersession
                                                          Supersession
                                                          # 008
                                                          MPN: 008410810
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 009
                                                          MPN: 008300833
                                                          STUD
                                                          from £3.82
                                                          from £3.82
                                                          # 010
                                                          MPN: 002431783
                                                          COVER
                                                          from £1,128.37
                                                          from £1,128.37
                                                          # 011
                                                          MPN: 008701204
                                                          PLUG
                                                          from £1.37
                                                          from £1.37
                                                          # 012
                                                          MPN: 002425259
                                                          JET
                                                          from £12.85
                                                          from £12.85
                                                          # 013
                                                          MPN: 008700670
                                                          SCREW
                                                          Supersession
                                                          Supersession
                                                          # 014
                                                          MPN: 008410602
                                                          WASHER
                                                          from £28.28
                                                          from £28.28
                                                          # 015
                                                          MPN: 002431778
                                                          COVER
                                                          from £271.12
                                                          from £271.12
                                                          # 016
                                                          MPN: 002425185
                                                          DRIVEN GEAR
                                                          from £349.07
                                                          from £349.07
                                                          # 017
                                                          MPN: 002425184
                                                          DRIVING GEAR
                                                          from £309.26
                                                          from £309.26
                                                          # 018
                                                          MPN: 008602301
                                                          SEAL
                                                          from £1.18
                                                          from £1.18
                                                          # 019
                                                          MPN: 002425246
                                                          OIL FILTER
                                                          from £102.46
                                                          from £102.46
                                                          # 020
                                                          MPN: 008300840
                                                          STUD
                                                          from £2.27
                                                          from £2.27
                                                          # 021
                                                          MPN: 008200821
                                                          NUT
                                                          from £1.86
                                                          from £1.86
                                                          # 022
                                                          MPN: 008401415
                                                          WASHER
                                                          from £10.37
                                                          from £10.37
                                                          # 023
                                                          MPN: 008100862
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          # 024
                                                          MPN: 008410806
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 025
                                                          MPN: N90179103
                                                          WASHER
                                                          from £0.98
                                                          from £0.98
                                                          This part replaces part number 008400801
                                                          # 026
                                                          MPN: 002433990
                                                          CROSSRAIL
                                                          from £28.98
                                                          from £28.98
                                                          # 027
                                                          MPN: 002433346
                                                          SUPPORT
                                                          from £150.49
                                                          from £150.49
                                                          # 028
                                                          MPN: 002433991
                                                          SPACER
                                                          from £34.51
                                                          from £34.51
                                                          # 029
                                                          MPN: 004126766
                                                          SPACER
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
