lamborghini diablo 6.0 (2001) main shaft parts diagram

24.05.00 - Main Shaft

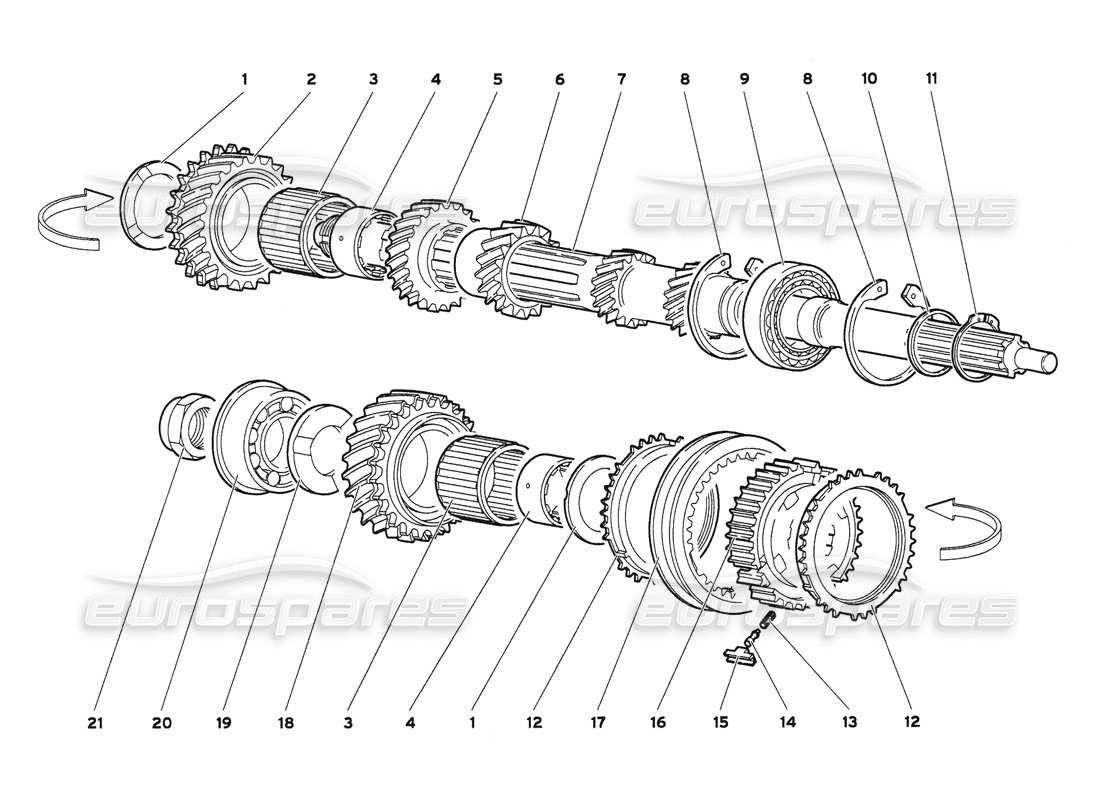

Lamborghini Diablo 6.0 (2001) Main Shaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 002424864
                                          SPACER
                                          from £105.93
                                          from £105.93
                                          WASHERS Genuine Lamborghini - New (to order)
                                          # 002
                                          MPN: 0024001641
                                          4TH GEAR
                                          from £1,123.45
                                          from £1,123.45
                                          This part replaces part number 002424888
                                          *COMPL.INGR.4° MARCIA SU PRIM. Genuine Lamborghini - New (to order)
                                          # 003
                                          MPN: 008524701
                                          ROLLER CAGE
                                          from £30.10
                                          from £30.10
                                          BEARING Genuine Lamborghini - New (to order)
                                          # 004
                                          MPN: 002420124
                                          SPLINED BUSHING
                                          from £286.21
                                          from £286.21
                                          BUSHING Genuine Lamborghini - New (to order)
                                          # 005
                                          MPN: 002424873
                                          3RD GEAR
                                          from £161.26
                                          from £161.26
                                          3RD SPEED GEAR ON PRIMARY Genuine Lamborghini - New (to order)
                                          # 006
                                          MPN: 002427097
                                          2ND GEAR
                                          from £158.36
                                          from £158.36
                                          2ND SPEED GEAR ON PRIMARY Genuine Lamborghini - New (to order)
                                          # 007
                                          MPN: 002430938
                                          Main Shaft
                                          from £669.10
                                          from £669.10
                                          PRIMARY SHAFT Genuine Lamborghini - New (to order)
                                          # 008
                                          MPN: 008578001
                                          RETAINER RING
                                          from £3.72
                                          from £3.72
                                          O-RING I 80 UNI 3654 Genuine Lamborghini - New In stock
                                          # 009
                                          MPN: 008524010
                                          BEARING
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 010
                                          MPN: 002424859
                                          SPACER
                                          from £14.88
                                          from £14.88
                                          WASHER Genuine Lamborghini - New (to order)
                                          # 011
                                          MPN: 008584001
                                          SEEGER RING
                                          from £5.39
                                          from £5.39
                                          O-RING E 40 UNI 7435-75 Genuine Lamborghini - New (to order)
                                          # 012
                                          MPN: 002421416
                                          SYNCHRONIZER RING
                                          from £677.96
                                          from £677.96
                                          SYNCHRO RING (106040) Genuine Lamborghini - New (to order)
                                          SYNCHRO RING (106040) Original Equipment - New In stock
                                          # 013
                                          MPN: 002421418
                                          SPRING
                                          from £38.05
                                          from £38.05
                                          STRUT SPRING Genuine Lamborghini - New (to order)
                                          # 014
                                          MPN: 002421419
                                          PIN
                                          from £19.58
                                          from £19.58
                                          BLOCK STRUT Genuine Lamborghini - New (to order)
                                          # 015
                                          MPN: 002421420
                                          GUIDE
                                          from £16.69
                                          from £16.69
                                          SYNCHRONISER BLOCK Genuine Lamborghini - New (to order)
                                          # 016
                                          MPN: 002421680
                                          SYNCHRONIZER
                                          from £203.56
                                          from £203.56
                                          RING Genuine Lamborghini - New (to order)
                                          # 017
                                          MPN: 002425150
                                          ENGAGEMENT RING
                                          from £870.57
                                          from £870.57
                                          GEAR ENGAGEMENT RING Genuine Lamborghini - New (to order)
                                          # 018
                                          MPN: 0024001212
                                          5TH GEAR
                                          from £275.27
                                          from £275.27
                                          5TH SPEED PRIMARY GEAR ASSEMBL Y Genuine Lamborghini - New (to order)
                                          # 018
                                          MPN: 0024001860
                                          5TH GEAR
                                          (Low Ratios)
                                          from £155.46
                                          from £155.46
                                          COMPL.INGR.5° SUL PRIMARIO Genuine Lamborghini - New (to order)
                                          # 019
                                          MPN: 002424861
                                          SPACER
                                          from £82.75
                                          from £82.75
                                          5TH SPEED GEAR ADJUSTMENT SHIM Genuine Lamborghini - New (to order)
                                          # 020
                                          MPN: 008503006
                                          BEARING
                                          from £356.53
                                          from £356.53
                                          This part replaces part number 008503004
                                          BEARING Genuine Lamborghini - New (to order)
                                          # 021
                                          MPN: 002431824
                                          NUT
                                          from £169.56
                                          from £169.56
                                          PRIMARY & SECONDARY SHAFT NUT Genuine Lamborghini - New (to order)
