3132.02.00 - Electrohydraulic ABS ECU

Lamborghini Diablo 6.0 (2001) Electrohydraulic ABS ECU Parts Diagram

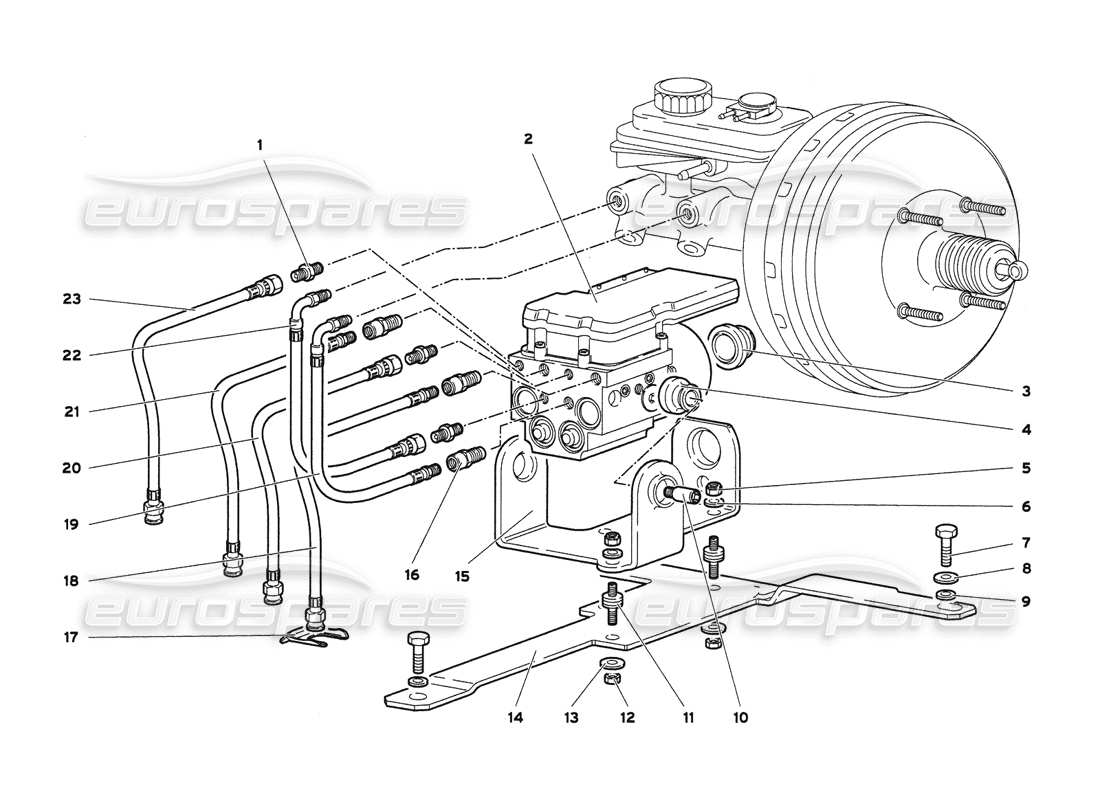

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 0031001088
                                CONNECTION
                                # 002
                                MPN: 0031000998
                                ABS CONTROL UNIT
                                from £3,073.51
                                from £3,073.51
                                # 003
                                MPN: 0031000999
                                FLEXIBLE SUPPORT
                                # 004
                                MPN: 0031001001
                                FLEXIBLE SUPPORT
                                # 005
                                MPN: 008200604
                                NUT
                                Supersession
                                Supersession
                                # 006
                                MPN: 008410612
                                WASHER
                                Supersession
                                Supersession
                                # 007
                                MPN: 008100830
                                SCREW
                                from £0.53
                                from £0.53
                                # 008
                                MPN: 008400814
                                WASHER
                                Supersession
                                Supersession
                                # 009
                                MPN: 008410820
                                WASHER
                                Supersession
                                Supersession
                                # 010
                                MPN: 0031001000
                                PIN
                                # 011
                                MPN: 008920602
                                FLEXIBLE SUPPORT
                                from £8.91
                                from £8.91
                                # 012
                                MPN: 008200614
                                NUT
                                Supersession
                                Supersession
                                # 013
                                MPN: WHT002961
                                WASHER
                                from £0.53
                                from £0.53
                                This part replaces part number 008400607
                                # 014
                                MPN: 0031001552
                                SUPPORT
                                (Valid for GB - March 2001)
                                from £63.02
                                from £63.02
                                # 014
                                MPN: 0031001552
                                SUPPORT
                                (Valid for AUSTRALIA - March 2001)
                                from £63.02
                                from £63.02
                                # 014
                                MPN: 0031006815
                                SUPPORT
                                from £41.05
                                from £41.05
                                # 015
                                MPN: 0031001291
                                BRACKET
                                # 016
                                MPN: 410614185
                                CONNECTION
                                RACCORDO
                                from £26.51
                                from £26.51
                                # 017
                                MPN: 003130840
                                PLATE
                                from £16.77
                                from £16.77
                                # 018
                                MPN: 0031001094
                                HOSE
                                from £62.43
                                from £62.43
                                # 018
                                MPN: 0031008511
                                HOSE
                                (Valid for GB - March 2001)
                                from £76.12
                                from £76.12
                                # 018
                                MPN: 0031008511
                                HOSE
                                (Valid for AUSTRALIA - March 2001)
                                from £76.12
                                from £76.12
                                # 019
                                MPN: 0031001090
                                HOSE
                                from £32.84
                                from £32.84
                                # 019
                                MPN: 0031001503
                                HOSE
                                (Valid for GB - March 2001)
                                from £59.06
                                from £59.06
                                # 019
                                MPN: 0031001503
                                HOSE
                                (Valid for AUSTRALIA - March 2001)
                                from £59.06
                                from £59.06
                                # 020
                                MPN: 0031001091
                                HOSE
                                from £32.84
                                from £32.84
                                # 020
                                MPN: 0031001506
                                HOSE
                                (Valid for GB - March 2001)
                                from £59.06
                                from £59.06
                                # 020
                                MPN: 0031001506
                                HOSE
                                (Valid for AUSTRALIA - March 2001)
                                from £59.06
                                from £59.06
                                # 021
                                MPN: 0032001101
                                HOSE
                                from £35.58
                                from £35.58
                                # 021
                                MPN: 0032001507
                                HOSE
                                (Valid for GB - March 2001)
                                from £43.62
                                from £43.62
                                # 021
                                MPN: 0032001507
                                HOSE
                                (Valid for AUSTRALIA - March 2001)
                                from £43.62
                                from £43.62
                                # 022
                                MPN: 0032001096
                                HOSE
                                from £89.49
                                from £89.49
                                # 022
                                MPN: 0032001504
                                HOSE
                                (Valid for GB - March 2001)
                                from £50.58
                                from £50.58
                                # 022
                                MPN: 0032001504
                                HOSE
                                (Valid for AUSTRALIA - March 2001)
                                from £50.58
                                from £50.58
                                # 023
                                MPN: 0032001097
                                HOSE
                                from £34.16
                                from £34.16
                                # 023
                                MPN: 0032001508
                                HOSE
                                (Valid for GB - March 2001)
                                from £59.06
                                from £59.06
                                # 023
                                MPN: 0032001508
                                HOSE
                                (Valid for AUSTRALIA - March 2001)
                                from £59.06
                                from £59.06
