lamborghini diablo 6.0 (2001) hand brake parts diagram

33.01.00 - Hand brake

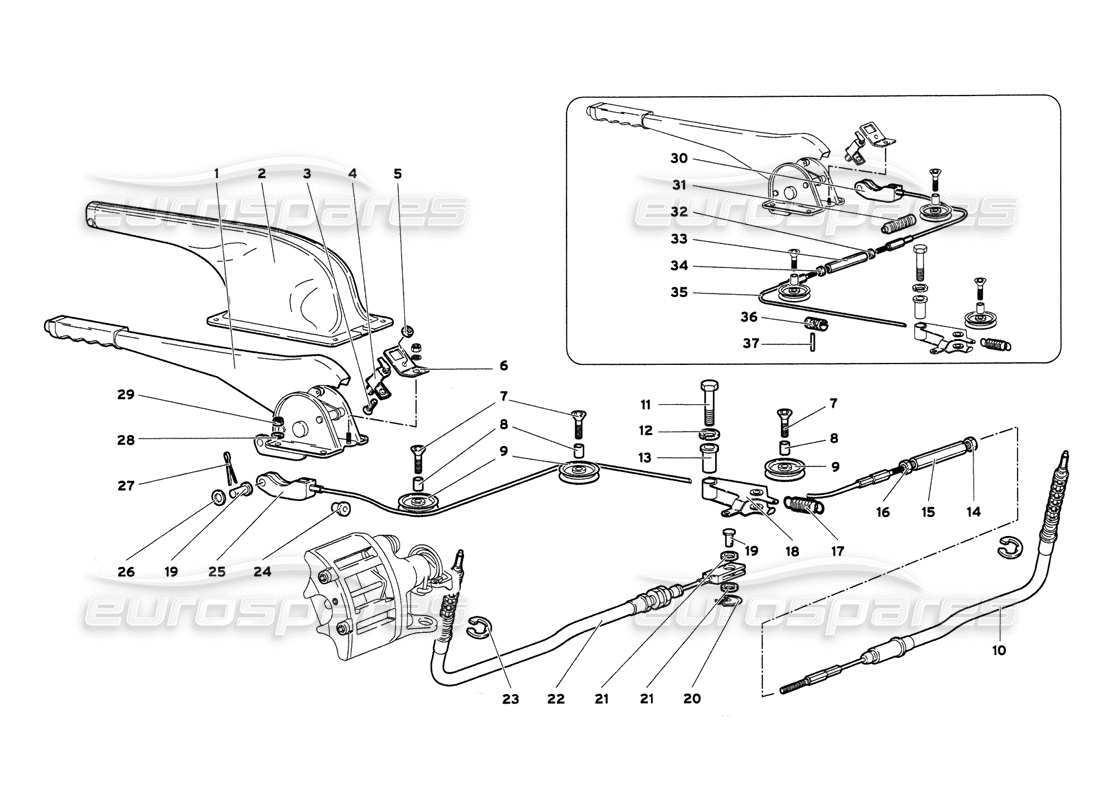

Lamborghini Diablo 6.0 (2001) Hand Brake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 410711305
                                                          HAND BRAKE LEVER
                                                          from £618.22
                                                          from £618.22
                                                          # 002
                                                          MPN: 0078001360
                                                          COVERING
                                                          from £101.99
                                                          from £101.99
                                                          # 003
                                                          MPN: 008700431
                                                          SCREW
                                                          from £0.54
                                                          from £0.54
                                                          # 004
                                                          MPN: 003336007
                                                          button
                                                          from £18.12
                                                          from £18.12
                                                          # 005
                                                          MPN: WHT002959
                                                          NUT
                                                          from £0.57
                                                          from £0.57
                                                          # 006
                                                          MPN: 003335993
                                                          SUPPORT
                                                          # 007
                                                          MPN: 008700851
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          # 008
                                                          MPN: 003330827
                                                          BUSHING
                                                          # 009
                                                          MPN: 003332512
                                                          PULLEY
                                                          Supersession
                                                          Supersession
                                                          # 010
                                                          MPN: 0033001133
                                                          RIGHT CABLE
                                                          from £124.51
                                                          from £124.51
                                                          # 011
                                                          MPN: 008101407
                                                          SCREW
                                                          from £3.32
                                                          from £3.32
                                                          # 012
                                                          MPN: 008411404
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          # 013
                                                          MPN: 003330828
                                                          SPACER
                                                          # 014
                                                          MPN: 008200607
                                                          NUT
                                                          from £8.05
                                                          from £8.05
                                                          # 015
                                                          MPN: 413609206
                                                          ADJUSTING SLEEVE
                                                          (Valid for RH D. version – April 1994) REGISTRO
                                                          from £39.87
                                                          from £39.87
                                                          # 016
                                                          MPN: N01100632
                                                          NUT
                                                          from £1.06
                                                          from £1.06
                                                          # 017
                                                          MPN: 003330829
                                                          SPRING
                                                          # 018
                                                          MPN: 003333935
                                                          SUPPORT
                                                          from £126.00
                                                          from £126.00
                                                          # 019
                                                          MPN: 410609789
                                                          PIN
                                                          from £18.55
                                                          from £18.55
                                                          This part replaces part number 003301307 which we have in stock
                                                          # 020
                                                          MPN: 410713299
                                                          CLIP
                                                          from £0.54
                                                          from £0.54
                                                          # 021
                                                          MPN: 008400806
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          # 022
                                                          MPN: 0033001131
                                                          LEFT CABLE
                                                          from £161.69
                                                          from £161.69
                                                          # 023
                                                          MPN: WHT003586
                                                          RETAINER RING
                                                          from £0.53
                                                          from £0.53
                                                          # 024
                                                          MPN: 003330880
                                                          RUBBER BUSHING
                                                          # 025
                                                          MPN: 0033001129
                                                          TIE ROD
                                                          from £218.76
                                                          from £218.76
                                                          # 026
                                                          MPN: 008400806
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          # 027
                                                          MPN: 008820201
                                                          SPLIT PIN
                                                          from £4.11
                                                          from £4.11
                                                          # 028
                                                          MPN: 008400606
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 029
                                                          MPN: 008200606
                                                          NUT
                                                          Supersession
                                                          Supersession
                                                          # 030
                                                          MPN: 0033008123
                                                          TIE ROD
                                                          (Valid for GB - March 2001)
                                                          # 030
                                                          MPN: 0033008123
                                                          TIE ROD
                                                          (Valid for AUSTRALIA - March 2001)
                                                          # 031
                                                          MPN: 009458601
                                                          PROTECTION
                                                          (Valid for GB - March 2001)
                                                          # 031
                                                          MPN: 009458601
                                                          PROTECTION
                                                          (Valid for AUSTRALIA - March 2001)
                                                          # 032
                                                          MPN: 008200607
                                                          NUT
                                                          (Valid for GB - March 2001)
                                                          from £8.05
                                                          from £8.05
                                                          # 032
                                                          MPN: 008200607
                                                          NUT
                                                          (Valid for AUSTRALIA - March 2001)
                                                          from £8.05
                                                          from £8.05
                                                          # 033
                                                          MPN: 413609206
                                                          ADJUSTING SLEEVE
                                                          (Valid for RH D. version – April 1994) REGISTRO
                                                          from £39.87
                                                          from £39.87
                                                          # 033
                                                          MPN: 413609206
                                                          ADJUSTING SLEEVE
                                                          (Valid for RH D. version – April 1994) REGISTRO
                                                          from £39.87
                                                          from £39.87
                                                          # 034
                                                          MPN: N01100632
                                                          NUT
                                                          (Valid for GB - March 2001)
                                                          from £1.06
                                                          from £1.06
                                                          # 034
                                                          MPN: N01100632
                                                          NUT
                                                          (Valid for AUSTRALIA - March 2001)
                                                          from £1.06
                                                          from £1.06
                                                          # 035
                                                          MPN: 003332749
                                                          CABLE
                                                          (Valid for GB)
                                                          from £69.82
                                                          from £69.82
                                                          # 035
                                                          MPN: 003332749
                                                          CABLE
                                                          (Valid for GB)
                                                          from £69.82
                                                          from £69.82
                                                          # 036
                                                          MPN: 003330824
                                                          BUSHING
                                                          (Valid for GB - March 2001)
                                                          # 036
                                                          MPN: 003330824
                                                          BUSHING
                                                          (Valid for AUSTRALIA - March 2001)
                                                          # 037
                                                          MPN: 008900204
                                                          PIN
                                                          (Valid for GB - March 2001)
                                                          from £0.54
                                                          from £0.54
                                                          # 037
                                                          MPN: 008900204
                                                          PIN
                                                          (Valid for AUSTRALIA - March 2001)
                                                          from £0.54
                                                          from £0.54
