41.01.00 - Frame Elements

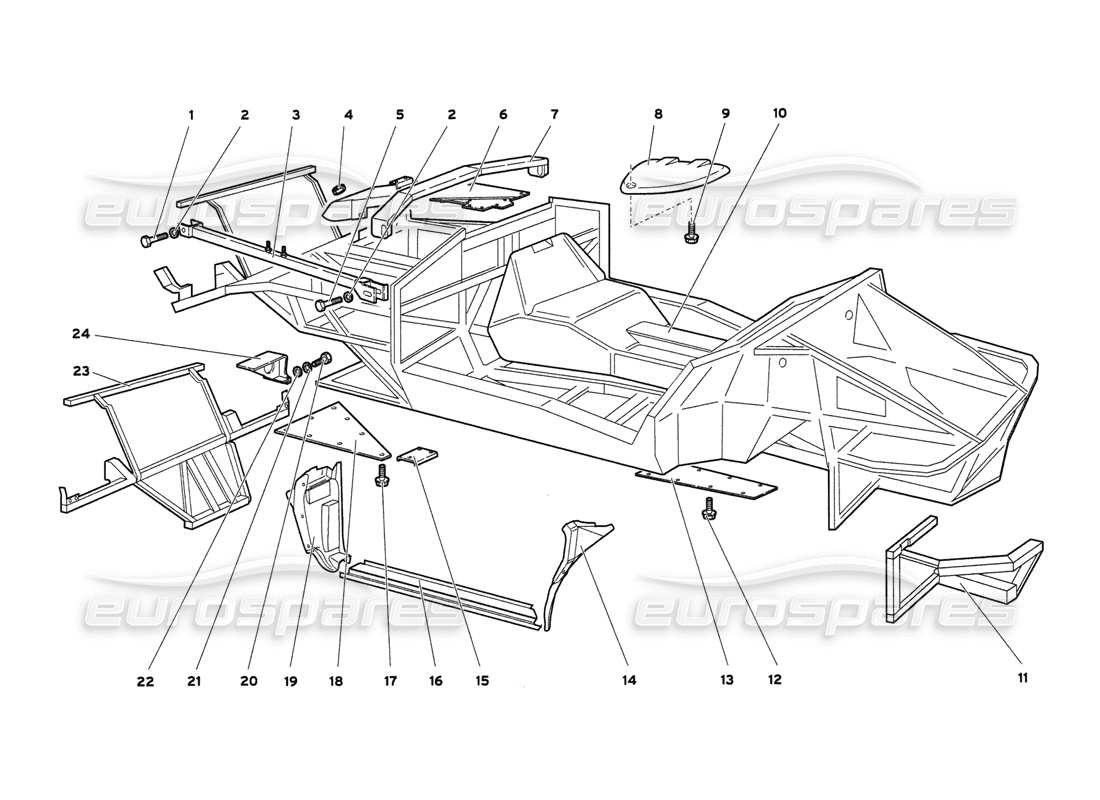

Lamborghini Diablo 6.0 (2001) Frame Elements Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008100854
SCREW
Supersession
Supersession
# 002
MPN: 008400820
WASHER
from £10.30
from £10.30
# 003
MPN: 004133595
LH CROSSRAIL
from £267.81
from £267.81
# 003
MPN: 004133596
RH CROSSRAIL
from £267.81
from £267.81
# 004
MPN: 008611606
RUBBER RING
from £1.23
from £1.23
# 005
MPN: 008700846
SCREW
from £1.37
from £1.37
# 006
MPN: 0068006652
RH SUPPORT
# 006
MPN: 0068006653
LH SUPPORT
from £173.70
from £173.70
# 007
MPN: 004131512
CROSSRAIL
from £210.00
from £210.00
# 008
MPN: 0041006880
PANEL
from £72.30
from £72.30
# 009
MPN: WHT003069
SCREW
from £31.34
from £31.34
# 010
MPN: 0041006469
TUNNEL COVER
from £2,379.55
from £2,379.55
# 010
MPN: 0041007855
TUNNEL COVER
(Valid for GB - March 2001)
from £2,383.70
from £2,383.70
# 010
MPN: 0041007855
TUNNEL COVER
(Valid for AUSTRALIA - March 2001)
from £2,383.70
from £2,383.70
# 011
MPN: 004137963
FRONT LH FRAME
from £553.38
from £553.38
# 011
MPN: 004137964
FRONT RH FRAME
from £553.38
from £553.38
# 012
MPN: N10718801
SCREW
from £0.59
from £0.59
# 013
MPN: 0068007237
PANEL
from £58.61
from £58.61
# 014
MPN: 009409136
FRONT RH COVERING
from £335.80
from £335.80
# 014
MPN: 009409137
FRONT LH COVERING
from £335.80
from £335.80
# 015
MPN: 004133887
REINFORCEMENT
from £18.94
from £18.94
# 016
MPN: 009409134
MIDDLE RH COVERING
from £74.54
from £74.54
# 016
MPN: 009409135
MIDDLE LH COVERING
from £74.54
from £74.54
# 017
MPN: WHT003069
SCREW
from £28.26
from £28.26
# 018
MPN: 0041006892
LH PANEL
from £40.51
from £40.51
# 018
MPN: 0041006893
RH PANEL
from £40.51
from £40.51
# 019
MPN: 009409132
REAR RH COVERING
from £404.61
from £404.61
# 019
MPN: 009409133
REAR LH COVERING
from £446.89
from £446.89
# 020
MPN: 008100812
SCREW
from £0.53
from £0.53
# 021
MPN: 008410820
WASHER
Supersession
Supersession
# 022
MPN: N90179103
WASHER
from £1.09
from £1.09
This part replaces part number 008400801
# 023
MPN: 0041004924
Rear Frame
from £5,728.25
from £5,728.25
# 024
MPN: 004137167
FUEL TANK SUPPORT
