42.01.00 - Pedals

Lamborghini Diablo 6.0 (2001) Pedals Parts Diagram

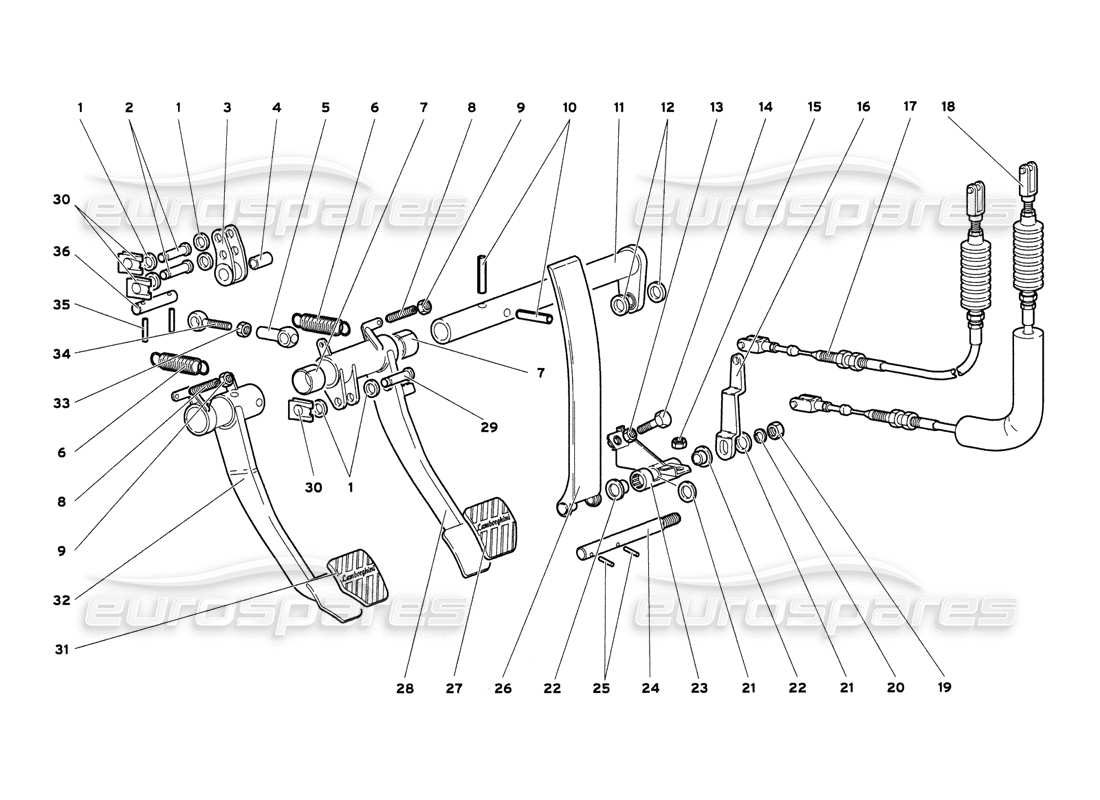

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 008401007
                                                                      WASHER
                                                                      from £0.52
                                                                      from £0.52
                                                                      # 002
                                                                      MPN: 004232621
                                                                      PIN
                                                                      from £23.68
                                                                      from £23.68
                                                                      # 003
                                                                      MPN: 004225060
                                                                      LEVER
                                                                      from £47.35
                                                                      from £47.35
                                                                      # 004
                                                                      MPN: 008801209
                                                                      BUSHING
                                                                      from £5.97
                                                                      from £5.97
                                                                      # 005
                                                                      MPN: 004225061
                                                                      BALL JOINT COUPLING
                                                                      from £42.95
                                                                      from £42.95
                                                                      # 006
                                                                      MPN: 0042004879
                                                                      SPRING
                                                                      # 007
                                                                      MPN: 008802501
                                                                      BUSHING
                                                                      Supersession
                                                                      Supersession
                                                                      # 008
                                                                      MPN: 004210834
                                                                      ADJUSTING DEVICE
                                                                      from £2.83
                                                                      from £2.83
                                                                      # 009
                                                                      MPN: 008200604
                                                                      NUT
                                                                      Supersession
                                                                      Supersession

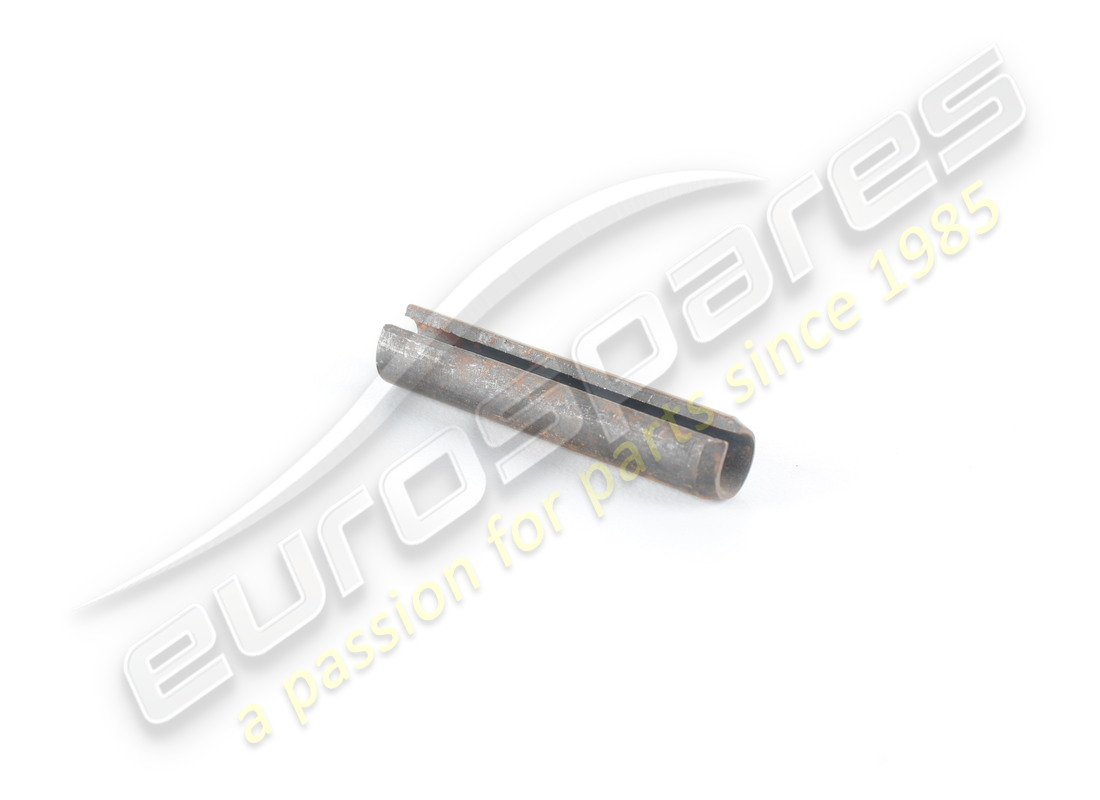

                                                                      # 010
                                                                      MPN: 008900803
                                                                      PIN
                                                                      from £0.68
                                                                      from £0.68
                                                                      # 011
                                                                      MPN: 004225064
                                                                      SHAFT
                                                                      # 012
                                                                      MPN: 008400819
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 013
                                                                      MPN: 008200801
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      # 014
                                                                      MPN: 008100828
                                                                      SCREW
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 015
                                                                      MPN: N90226404
                                                                      NUT
                                                                      from £1.26
                                                                      from £1.26
                                                                      # 016
                                                                      MPN: 0042005200
                                                                      LEVER
                                                                      from £92.86
                                                                      from £92.86
                                                                      # 017
                                                                      MPN: 004230089
                                                                      ACCELERATOR TIE ROD
                                                                      (Valid for MY 2000 & 2001)
                                                                      from £722.16
                                                                      from £722.16
                                                                      # 018
                                                                      MPN: 004236013
                                                                      ACCELERATOR TIE ROD
                                                                      (Valid for GB & AUSTRALIA - March 2001)
                                                                      from £97.43
                                                                      from £97.43
                                                                      # 019
                                                                      MPN: 008200809
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      # 020
                                                                      MPN: N90179103
                                                                      WASHER
                                                                      from £1.06
                                                                      from £1.06
                                                                      This part replaces part number 008400801
                                                                      # 021
                                                                      MPN: 003230722
                                                                      WASHER
                                                                      from £0.72
                                                                      from £0.72
                                                                      # 022
                                                                      MPN: 008801203
                                                                      BUSHING
                                                                      from £6.59
                                                                      from £6.59
                                                                      # 023
                                                                      MPN: 0042005202
                                                                      SUPPORT
                                                                      from £296.00
                                                                      from £296.00
                                                                      # 024
                                                                      MPN: 0042005199
                                                                      PIN
                                                                      from £120.64
                                                                      from £120.64
                                                                      # 025
                                                                      MPN: 008900204
                                                                      PIN
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 026
                                                                      MPN: 0042005198
                                                                      Accelerator Pedal
                                                                      from £313.41
                                                                      from £313.41
                                                                      # 027
                                                                      MPN: 0042005210
                                                                      RUBBER PEDAL COVER
                                                                      from £43.45
                                                                      from £43.45
                                                                      # 028
                                                                      MPN: 0042005208
                                                                      BRAKE PEDAL
                                                                      from £111.52
                                                                      from £111.52
                                                                      # 029
                                                                      MPN: 004232622
                                                                      PIN
                                                                      from £16.72
                                                                      from £16.72
                                                                      # 030
                                                                      MPN: 008581004
                                                                      CLIP
                                                                      from £5.85
                                                                      from £5.85
                                                                      # 031
                                                                      MPN: 0042005210
                                                                      RUBBER PEDAL COVER
                                                                      from £43.45
                                                                      from £43.45
                                                                      # 032
                                                                      MPN: 0042005211
                                                                      CLUTCH PEDAL
                                                                      from £111.52
                                                                      from £111.52
                                                                      # 033
                                                                      MPN: N10155210
                                                                      NUT
                                                                      from £1.36
                                                                      from £1.36
                                                                      This part replaces part number 008201001
                                                                      # 034
                                                                      MPN: 004225062
                                                                      TIE ROD
                                                                      from £41.21
                                                                      from £41.21
                                                                      # 035
                                                                      MPN: 008900305
                                                                      PIN
                                                                      from £0.53
                                                                      from £0.53
